Adss Fiber Optic Cable
Fiber type:G652D Loose tube:2.1mm
Strength member:2.2mm FRP
Strength member:Aramid yarn
Inner Sheath:0.8mm PE
Outer Sheath:10.6mm PE
Description
Technical Parameters
our company

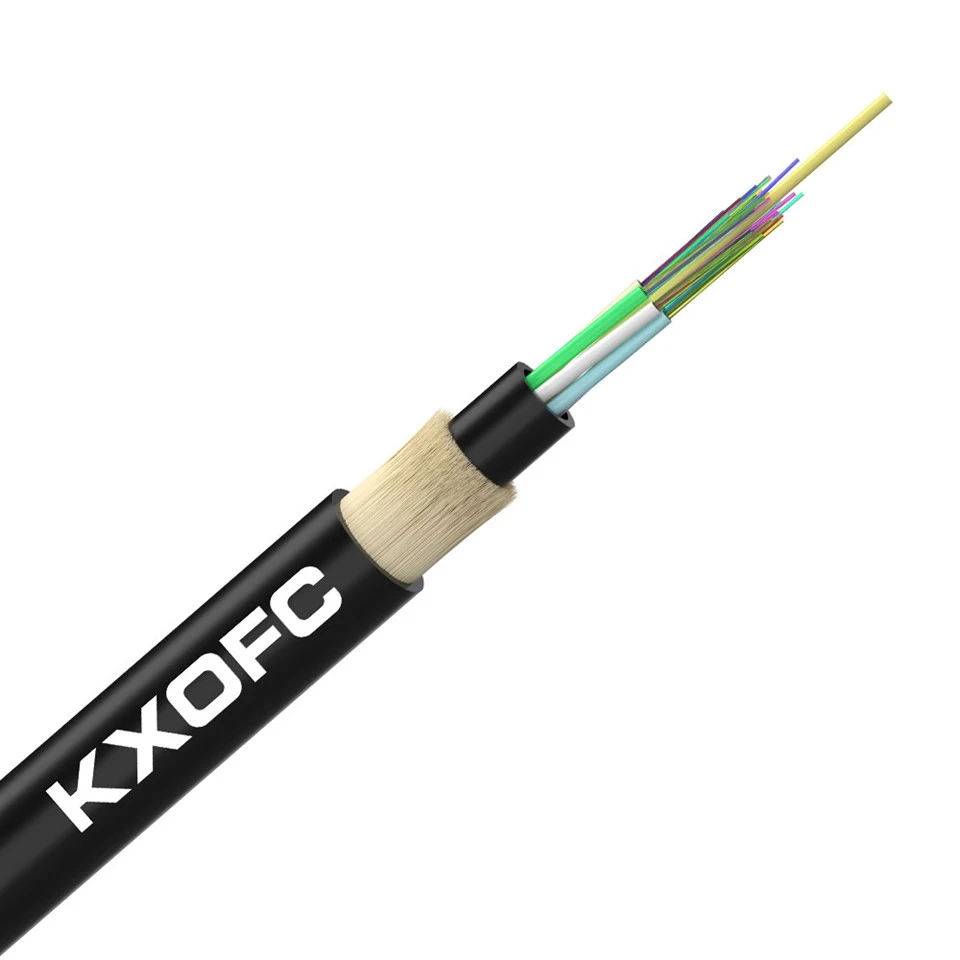

All dielectric self-supporting double sheath ADSS Fiber Optic Cable
ADSS Fiber Optic Cable 200M~1500M SPAN double jacket aerial optical fiber cable,all dielectric self-supporting optical fiber cable is a type of fiber optic cable that is strong enough to support itself between structures without containing conductive metal elements. Both single mode and multi-mode fibers can be arranged in ADSS cables with a maximum of 144 fibers. ADSS fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations.
An ADSS (All-Dielectric Self-Supporting) dual-jacket optical cable can be thought of as having two layers of "protective clothing." Specifically designed for high-voltage power line environments and other areas with strong electrical fields, its core advantages include an outer layer that is UV-resistant and corrosion-resistant, and an inner layer that blocks water and moisture. Featuring an all-dielectric, non-metallic construction, it is non-conductive and offers resistance to lightning strikes and electromagnetic interference.

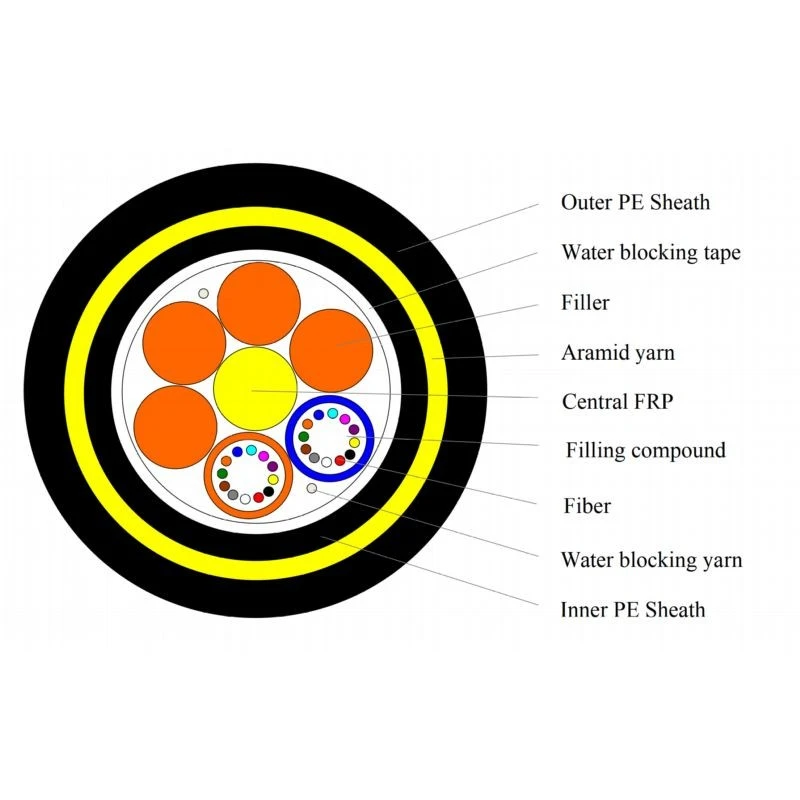

Double-Jacket Structure
Outer Jacket
Made of specialized PE or AT material, this layer is UV-resistant, corrosion-resistant, and designed for compatibility with power transmission towers. A PE jacket is suitable for lines below 35kV, while an AT (anti-tracking) jacket is used for high-voltage environments (110kV and above).
Inner Jacket
Composed of water-blocking material, it provides moisture and seepage protection for the optical fiber core.
Core Structure
The loose tubes containing the optical fibers are filled with water-blocking gel. A non-metallic central strength member provides basic tensile resistance, while aramid yarns serve as the primary load-bearing component. Additionally, water-blocking tapes and yarns are incorporated to ensure full-cross-section water protection.
Key Features
Choose the Adss Fiber Optic Cable that suits you best.
Safe and Non-Conductive:
Features an all-dielectric construction with no metal components, ensuring immunity to lightning strikes and electromagnetic interference, even when installed near high-voltage power lines.
01
Easy Installation
Designed as a self-supporting cable, it can be hung directly onto utility poles or towers without the need for additional suspension wires or steel strands; it is approximately 30% lighter than conventional fiber optic cables.
02
Excellent Weather Resistance
Operates within a temperature range of -40°C to +70°C; the dual-layer protective design offers a service life of up to approximately 20 years.
03
Suitable for Long Spans
The dual-jacket structure supports longer spans-capable of reaching spans of up to 700 meters.
04
Classification Standards for Outer Sheaths
Class A
For spatial potential ≤ 12 kV; utilizes a black polyethylene (PE) sheath material.
Class B
For spatial potential > 12 kV; utilizes a track-resistant black polyolefin (AT) sheath material.

Usage Considerations
When selecting a cable, first verify the voltage level of the installation line to determine whether a PE or AT sheath is required; these two types are not interchangeable.
A dual-sheath structure offers superior resistance to environmental degradation and mechanical damage compared to a single-sheath design, though it comes at a higher cost. For standard low-voltage applications with short spans, a single-sheath cable may be a more economical choice.

Welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.
Our address
No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China
Phone Number
86-13819155030
shiney@kexincable.com

Hot Tags: adss fiber optic cable, China adss fiber optic cable manufacturers, suppliers, factory, Adss Fiber Cable, Adss Optical Cable, ADSS Optical Fiber Cable, all dielectric optical fiber cable and mini adss asu , ASU Cable, Mini ADSS
Technical Characteristics
|
Fiber Count |
12~144 |
|
Structure |
1+12 |
|
Span |
200m |
|
Loose Diameters |
2.0~3.6 mm |
|
Loose Material |
PBT (Polybutylene Terephthalate) |
|
Central Strength Member |
FRP |
|
Strength Member |
Aramid Yarn |
|
Outer Jacket Material |
HDPE |
|
Sheath |
Double Sheath |
|
Nominal Outer Diameter(±0.3) |
10.0~25.0mm |
|
Tension Strength (Long-Term /Short-Term) |
3000N/8000N |
|
Crush Resistance (Long-Term /Short-Term) |
1100 N/100mm 2200 N/100mm |
|
Minimum Bend Radius (Static / Dynamic) |
10 x OD / 20 x OD |
*All above the cable size can be customized.
