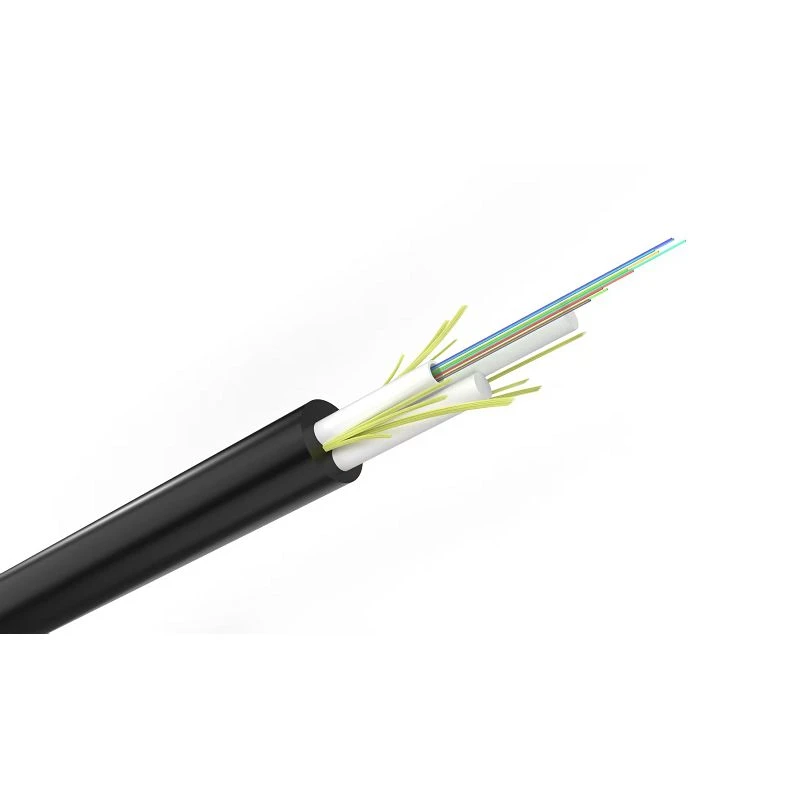

Mini ADSS

Fiber count:2~24core
Fiber type:G652D Loose tube:2.1mm
Strength member:2.0mm FRP
Strength member:Polyester yarn
Outer Sheath:8.6mm PE
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and have long-term cooperation more than 30 countries and have 18 years` rich experience to export cables .





product-980-648

introduction of  Mini ADSS aerial optical fiber cable ASU with yarn



ASU is also called mini ADSS ,aerial optical fiber cable is a type of optical fiber cable designed for outdoor aerial installations. Dielectric optical fiber cable structure is put the optical fibers in one PBT loose tube, two FRP and yarn as strength member, cable surface is extruded with a PE outer sheath.

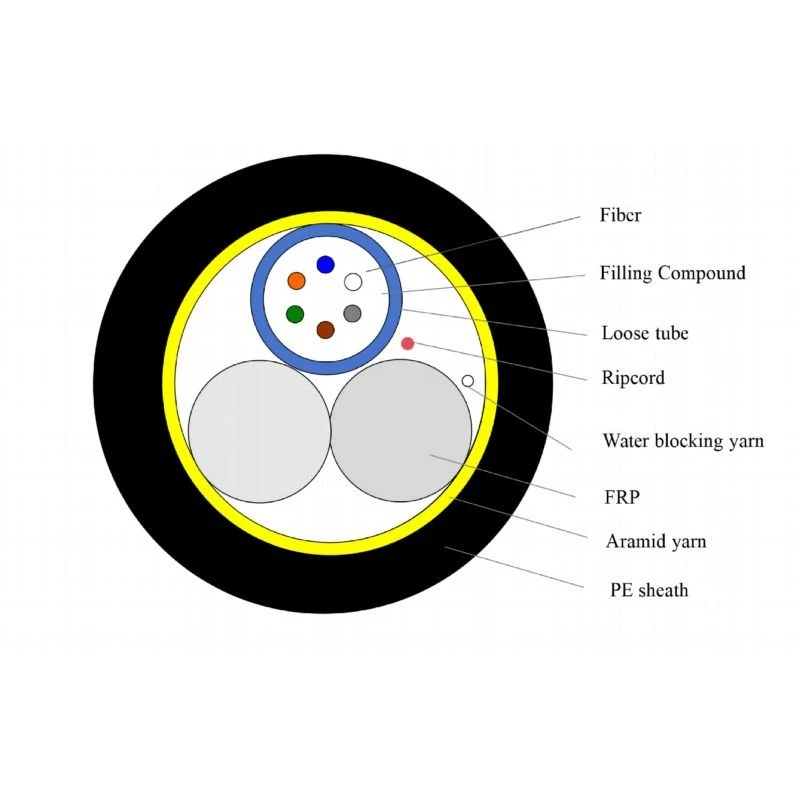

Structural features



The ASU optical cable features a central loose tube design. Optical fibers are placed within a loose tube made of a high-modulus polyester material, which is filled with a water-blocking compound. This loose tube is stranded together with two high-strength, non-metallic central strength members (FRP) to form the cable core. A rip cord and polyester yarns are incorporated, and the assembly is then enclosed in an extruded polyethylene (PE) outer sheath.

product-470-466

    Features

Small Size and Light Weight;

Two FRP and yarn as strength member to provide good tensile performance;

Gel Filled , good waterproof performance;

Low price ,high fiber capacity;

Applicable for aerial and duct installation

product-560-402
Installation

The ASU optical cable is an all-dielectric (non-metallic) self-supporting aerial fiber optic cable, primarily designed for outdoor overhead installation; it is particularly well-suited for areas prone to lightning strikes and for communication network scenarios that require the absence of any metallic components.

Detailed Structural features






All-dielectric, non-metallic

The entire optical cable contains no metallic components; it is constructed from all-dielectric insulating materials, providing inherent resistance to lightning strikes and electromagnetic interference.





Light weight and simple:

Features a small diameter, low weight, and a simple structure, making it easy to install without the need for additional suspension wires.





High weather resistance

The outer sheath is corrosion-resistant, while the loose tubes are hydrolysis-resistant and high-strength, making the cable suitable for long-term outdoor use.



product-834-380

Printing




We can printing your brand on this cable;

Length is 3km/drum , or depend on your requirement;

product-556-446

PACKAGE



We adopt sturdy packaging for optical cables. Standard wooden reels with reinforced protection, wrapped with moisture-proof film and strapping. The packaging is shockproof and compression-resistant, well suited for long overseas shipping and rough handling, ensuring cables arrive at your site in perfect condition.





kXOFC factory introduction

Founded in 1992, Hangzhou Lin'an KEXIN Optical Cable is a veteran cable manufacturer. We began optical cable manufacturing in 2001 and launched our overseas business department in 2008. Our cables are widely distributed in over 30 countries covering Southeast Asia, Eastern Europe, South America and Africa, with proven overseas project delivery capacity.

All goods are produced on semi-automatic lines and inspected by imported Japanese high-precision testing devices under ITU-T & IEC standards. Our complete certification package including ISO9001, CE, SGS and China official network access licenses enables you to participate in local telecom, CATV, railway and highway infrastructure bids smoothly.

We provide comprehensive optical cable solutions including outdoor armored/ADSS cables and indoor FTTH drop & ribbon cables for all engineering scenarios.

product-666-370



Why us ?

Extensive production experience

Cost-Effective Fiber Cable Factory , 25yrs Manufacturer CE Certified



Range of optical cable products

One-Stop Supplier for ADSS/FTTH/Armored Optical Cable



Local in Hangzhou

Stable Large Order Delivery Optical Cable Factory from Hangzhou,near Shanghai and Ningbo,China



product-1006-384

How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: mini adss, China mini adss manufacturers, suppliers, factory, Adss All Dielectric Self Supporting, Adss Fiber Optic Cable, ADSS Optical Fiber Cable, ASU Cable, Mini ADSS, Self Supporting Aerial Cable

Technical Characteristics





Fiber Count

2~24

Span

120m

Loose Diameter

2.3 mm

Loose Material

PBT (Polybutylene Terephthalate)

Strength Member 1

FRP*2

Strength Member 2

Yarn

Outer Jacket Material

HDPE

Nominal Outer Diameter (±0.3)

8.0~9.0mm

Tension Strength

(Long-Term /Short-Term)

2800N/7000N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
