Fiber count:12~288core
Fiber type:G652D Loose tube:2.1mm
Strength member:2.0mm FRP
Strength member:Aramid yarn
Sheath:9.0mm PE
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .



product-966-674

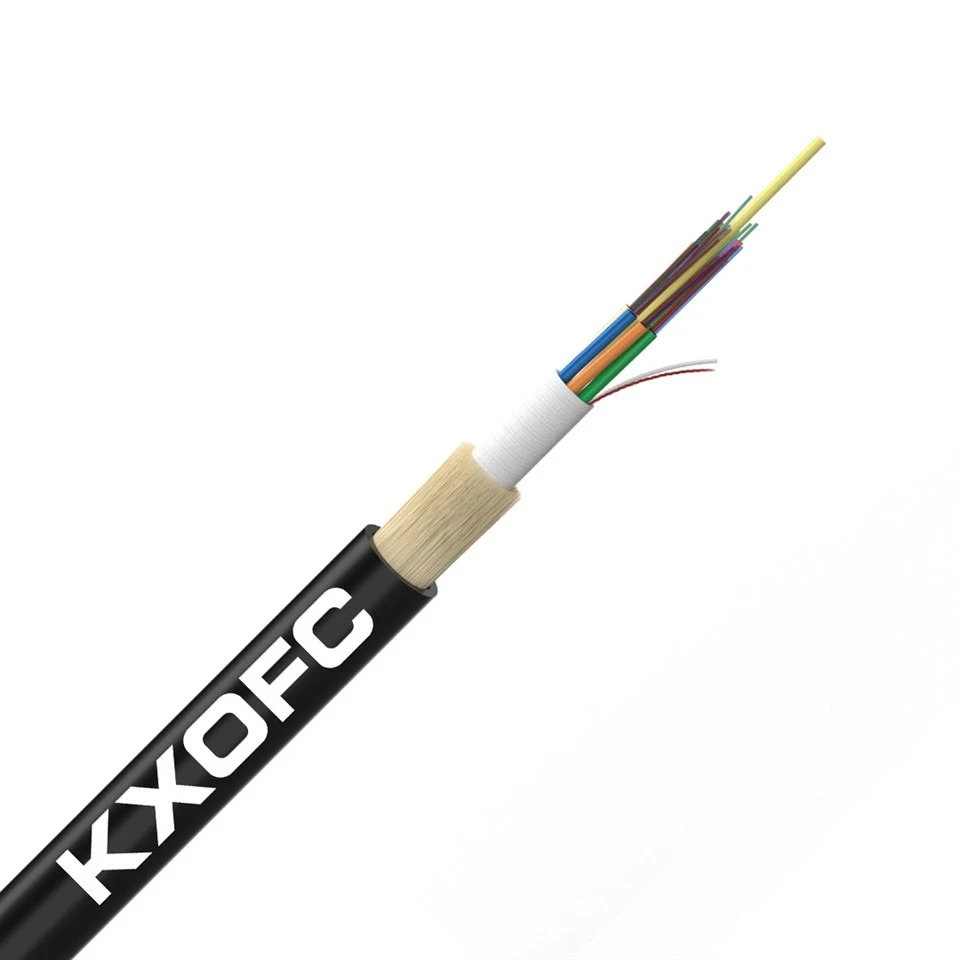

ADSS all dielectric self-supporting single jacket optical fiber cable


ADSS All Dielectric Self Supporting 100M SPAN 1+5 Single jacket aerial optical fiber cable, all dielectric self-supporting optical fiber cable has metal-free, tension-resistant, self-supporting, high insulation, non-inductive, thin diameter, light, easy construction and economy. ADSS All Dielectric Self Supporting is a combined optical cable made by winding the optical fiber bundle on the central strength member and taking protective measures such as insulation, waterproof, reinforcement, and sheath.



Design of ADSS Optical Cable Structural Parameters



The parameter design of ADSS (All-Dielectric Self-Supporting) optical cable is a systematic engineering task involving multiple disciplines: mechanics, electrical engineering, and optics. Unlike ordinary optical cables, which only need to meet basic transmission requirements, an ADSS cable must, on this basis, perfectly adapt to the power tower environment and meteorological conditions where it will be installed.

product-346-350





Mechanical Strength Parameter Design

This is the most critical part of ADSS design, determining the "skeleton" of the cable. The design revolves around three core tension indicators:

Rated Tensile Strength (RTS)

The maximum tension the cable can withstand before breaking (unit: kN).

01

Maximum Allowable Tension (MAT)

The maximum tension the cable withstands under the most severe weather conditions (high winds, heavy ice) during its design life. It is generally required that MAT ≤ 40% of RTS. Under this condition, the optical fiber should have no strain and no additional attenuation.

02

Everyday Stress (EDS)

The routine tension on the cable under no wind, no ice, and average annual temperature. It is generally required that EDS ≤ 25% of RTS to resist long-term fatigue vibration.

03

Ultimate Operating Stress (UOS)

The safe upper limit of tension under occasional extreme conditions. It is generally required that UOS ≤ 60% of RTS. Under this condition, the fiber strain must be controlled within ≤ 0.35% .

04



Sheath Selection



PE (Polyethylene) Sheath

Suitable for environments with induced potential ≤ 12kV, commonly found on lines of 35kV and below.

AT (Anti-Tracking) Sheath

Suitable for environments with induced potential between 12kV and 25kV. It contains special anti-tracking materials that can withstand arc burns. It is suitable for 110kV and 220kV lines. It is not recommended to install ADSS cables on lines above 220kV.

product-598-508



Features

Choose the Adss All Dielectric Self Supporting cable that suits you best.



Self-supportive and does not utilize metallic elements that are conductive;

01



Amazing mechanical strength, low weight, can handle external load and suitable for high loading and unloading cycle;

02



Aramid yarn increase cable's tensile performance, as well as temperature performance under unfavorable weather;

03



Design specific to application needs.

04





How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: adss all dielectric self supporting, China adss all dielectric self supporting manufacturers, suppliers, factory, Adss All Dielectric Self Supporting, Adss Fiber Optic Cable, All Dielectric Fiber Optic Cable, all dielectric optical fiber cable and mini adss asu , ASU Cable, Mini ADSS

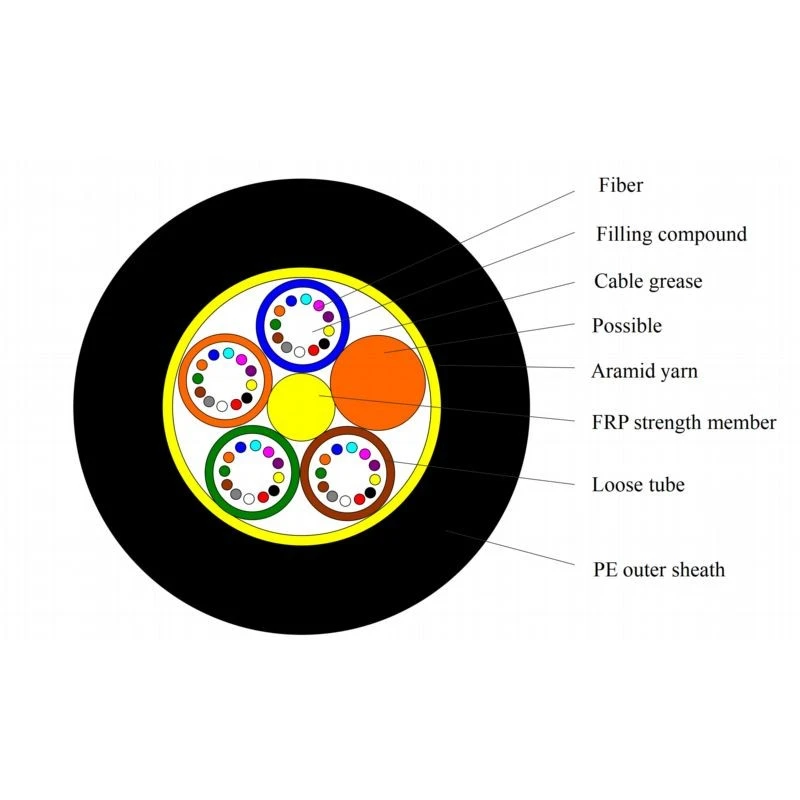

Technical Characteristics





Fiber Count 12~60
Structure 1+5
Span 100m
Loose Diameters 2.0 mm
Loose Material PBT (Polybutylene Terephthalate)
Central Strength Member FRP
Strength Member Aramid Yarn
Outer Jacket Material HDPE
Cable Sheath Single Sheath
Nominal Outer Dimensions 9.0mm (±0.3)

Tension Strength

(Long-Term /Short-Term)

3000N/8000N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm
Minimum Bend Radius (Static / Dynamic) 10 x OD / 20 x OD



*All above the cable size can be customized.

Send Inquiry
