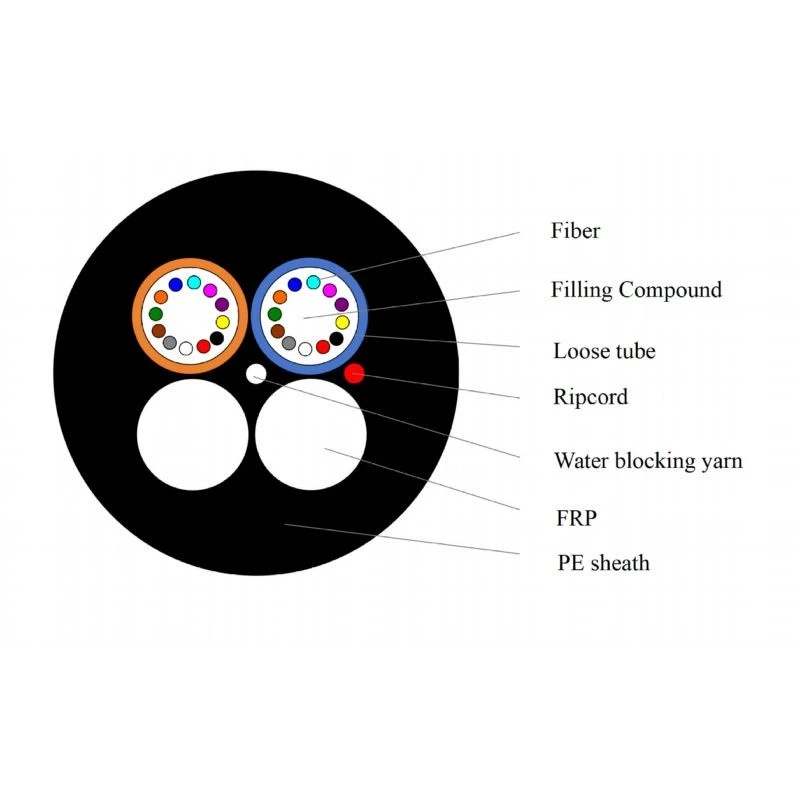

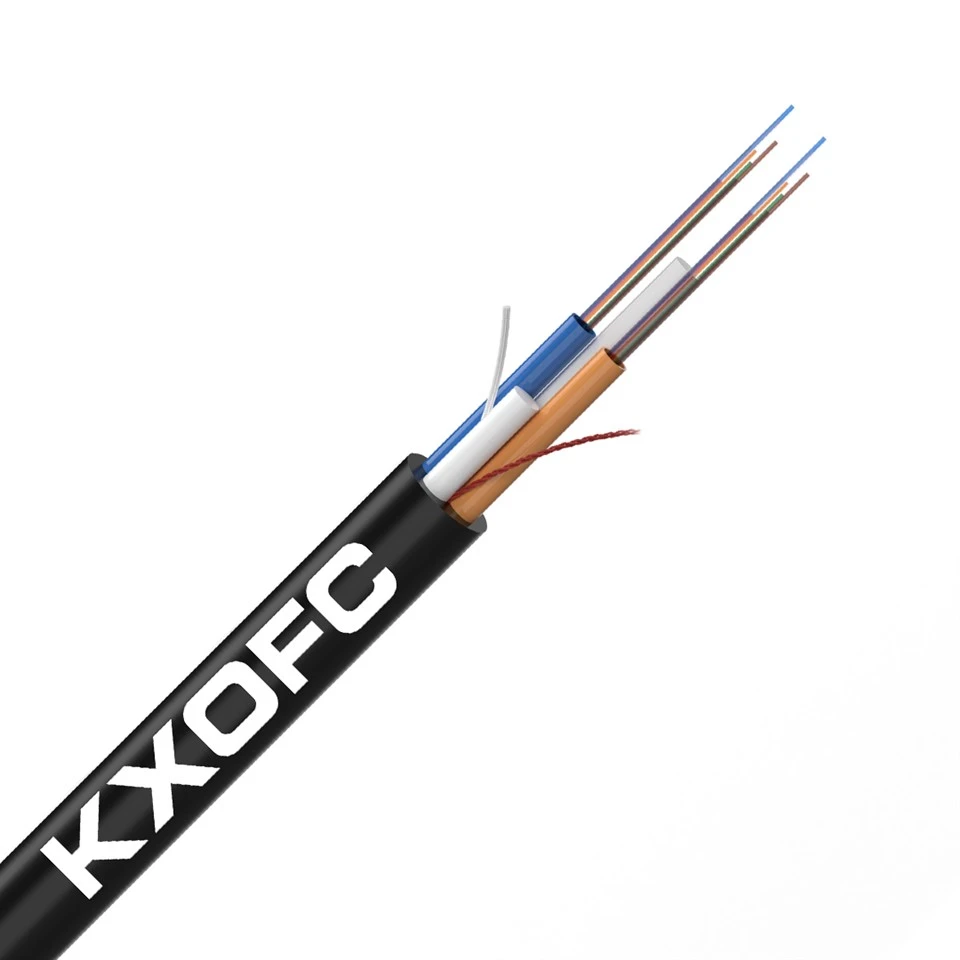

ADSS Optical Fiber Cable
video

ADSS Optical Fiber Cable

Fiber count:12~288core
Fiber type:G652D Loose tube:2.1mm
Strength member:2.2mm FRP
Strength member:Aramid yarn
Inner Sheath:0.8mm PE
Outer Sheath:10.6mm PE
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .



product-984-624

ADSS (All-Dielectric Self-Supporting) optical cable is a type of self-supporting overhead fiber optic cable, specifically designed for aerial installation and deployment across a wide range of outdoor applications.



An ADSS (All-Dielectric Self-Supporting) optical cable is a type of fiber-optic cable with sufficient strength to support its own weight between structures, without the use of any conductive metal components. It is specifically designed for use in overhead power transmission and distribution line environments. As the name implies, the cable contains no metal parts and requires no support wires or messenger strands; it can be installed in a single operation, making ADSS cables an economical and straightforward solution for building fiber-optic networks.

product-518-484
product-992-502
Features and Advantages



ADSS (All-Dielectric Self-Supporting) optical cables can be installed without interrupting the power supply. They offer numerous advantages, including long span capabilities, high tensile strength, lightweight design, small diameter, and a robust, flexible, and reliable structure. They are quick and easy to install and maintain, cost-effective, and resistant to the effects of ice and wind. Designed to support their own weight as well as external loads, they eliminate the need for bonding or grounding, are resistant to electrical corrosion, and are well-suited for harsh climatic conditions. Furthermore, their non-metallic construction provides excellent electrical insulation and lightning protection.




product-476-368

Application Scenarios



ADSS (All-Dielectric Self-Supporting) fiber optic cables are used for communications by power utilities, telecommunications companies, and private network operators. They are deployed on distribution and high-voltage transmission lines, as well as other overhead infrastructure. Applications include enterprise OSP (outside plant) networks, broadband and FTTX networks, railway communications, long-distance telecommunications, CATV, CCTV, computer network systems, Ethernet LANs, and campus backbone networks.







How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: adss optical fiber cable, China adss optical fiber cable manufacturers, suppliers, factory, Adss Aerial Fiber Optic Cable, Adss Optical Cable, ADSS Optical Fiber Cable, all dielectric optical fiber cable and mini adss asu , ASU Cable, Mini ADSS

Technical Characteristics





Fiber Count

6~24

Span

100m

Loose tube NO.

2

Loose Material

PBT (Poly Butylene Terephthalate)

Strength Member

FRP*2

Outer Jacket Material

HDPE

Nominal Outer Dimensions

8.5mm (±0.3)

Tension Strength

(Long-Term /Short-Term)

1500N/3000N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
