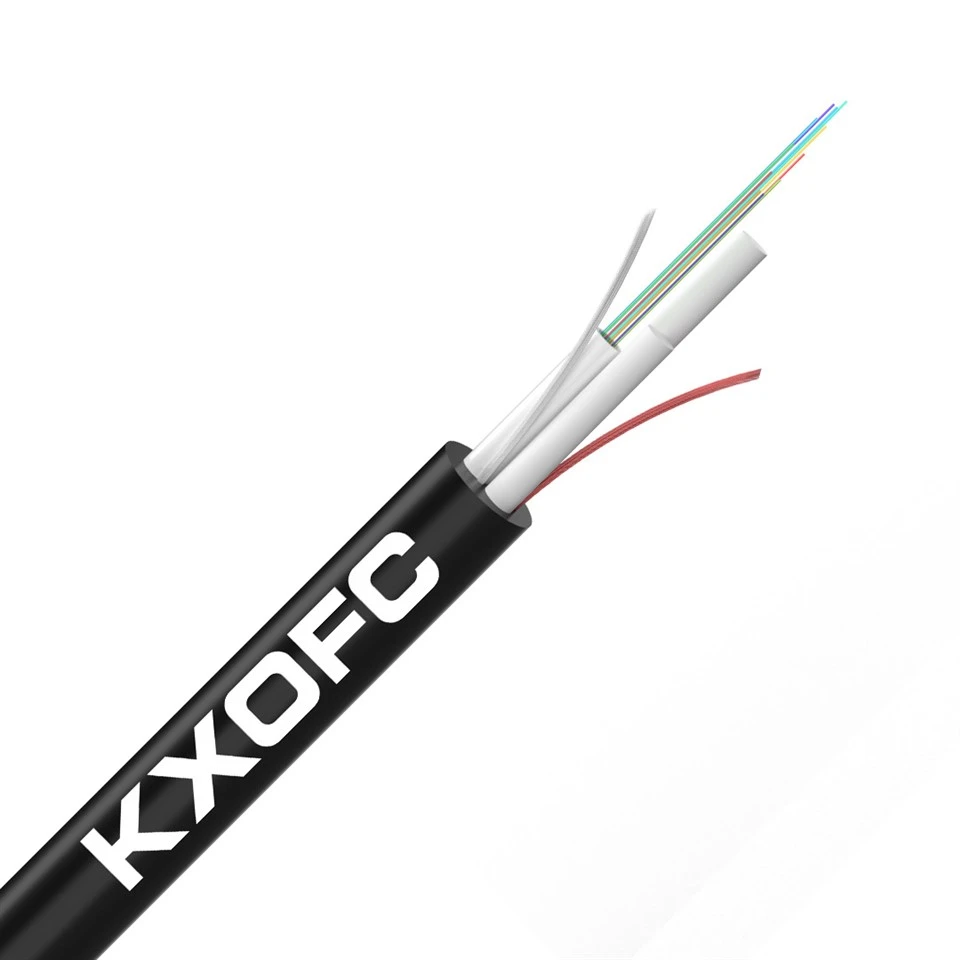

Adss Optical Cable
video

Adss Optical Cable

Fiber count:2~24core
Fiber type:G652D
Loose tube:1*2.1mm
Strength member:2*2.0mm FRP
Outer Sheath:8.6mm PE
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .



product-698-434

Mini ADSS Optical Cable self-support ASU span 100 meters

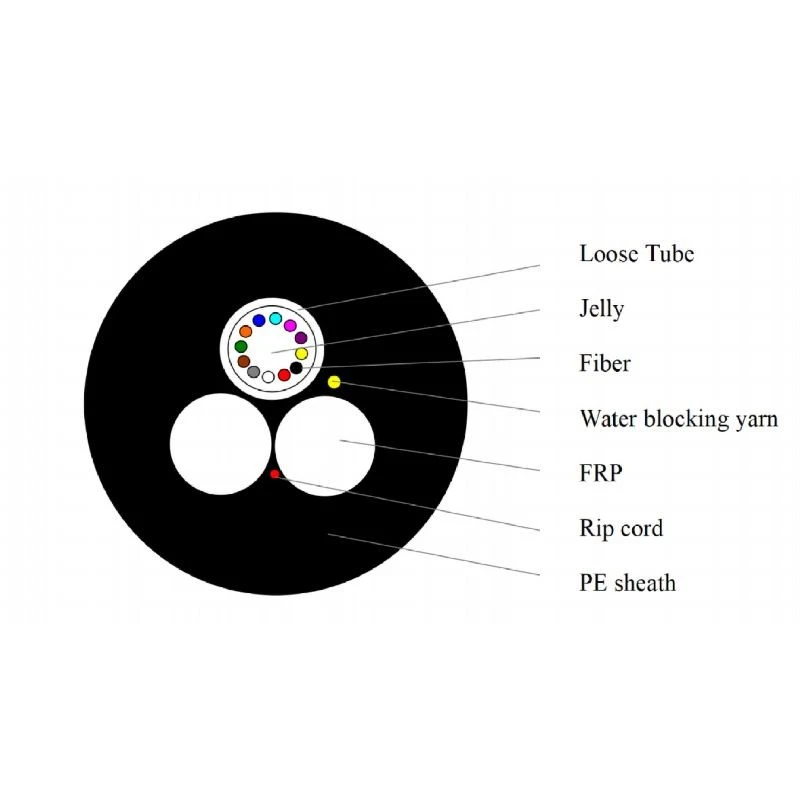

ASU/mini ADSS 100m SPAN aerial optical fiber cable is a type of optical fiber cable designed for outdoor aerial installations. Mini ADSS optical cable structure is put the colored fibers in the PBT loose tube, and two FRP as strengthen member, Cable surface is extruded with a PE outer sheath. It also belongs to duct fiber optical cable.



The primary advantages of ASU (All-Dielectric Self-Supporting) fiber optic cables are their entirely non-metallic construction, lightweight design, and capability for self-supporting aerial installation; they are particularly well-suited for communication projects in areas prone to lightning strikes or in the vicinity of power lines.

product-462-452



Key Advantages



All-Dielectric, Non-Metallic

 Contains no metallic components, making it inherently immune to electromagnetic interference and lightning strikes; ideal for use near high-voltage power lines or in areas prone to frequent lightning.

01

Lightweight and Easy to Install

Features a small diameter and low weight (approx. 80–85 kg/km)-significantly lighter than standard outdoor fiber optic cables. It can be installed overhead without the need for auxiliary suspension wires, and can even be deployed by a single person, thereby reducing installation costs.

02

Self-Supporting Aerial Design

Designed to support its own weight and external loads through its internal structure. It requires no steel suspension wires or grounding, typically supporting spans of 80–150 meters, making it well-suited for long-distance overhead communication lines.

03

Simple and Reliable Structure

 Utilizes a central loose-tube design, providing the optical fibers with sufficient space to move freely. This minimizes micro-bending losses caused by external forces. The loose tube is filled with a water-blocking compound, ensuring excellent moisture and water resistance.

04

High Tensile Strength and Weather Resistance

 Equipped with two parallel FRP (Fiber Reinforced Plastic) strength members that provide high tensile strength. The PE (polyethylene) outer sheath offers UV protection and corrosion resistance, allowing the cable to operate reliably within a temperature range of -40°C to +70°C.

05





Applicable scenarios
01.

Power Communication‌

‌ Communication along high-voltage transmission lines and between substations. The metal-free structure is non-conductive and has good safety isolation.

02.

‌FTTH access network‌

The last mile of optical fiber to the home, light and overhead, no need to wear pipes or grounding.

03.

‌City Network/Wide Area Network‌

Data center interconnection, data transmission between backbone nodes of the metropolitan area network.

04.

‌Lightning-prone areas‌

Areas with high risk of lightning strikes such as mountainous areas and open areas, all-dielectric structure provides natural lightning protection

Usage Considerations





For overhead installation, the span must be kept within 80–150 meters; if this range is exceeded, additional support structures (poles or towers) are required, or a reinforced ADSS (All-Dielectric Self-Supporting) optical cable should be used instead.



Compared to metal-based optical cables, these cables have limited crush resistance; therefore, they are not well-suited for ground-level installation or environments prone to external mechanical impact.

product-690-314

product-556-446

PACKAGE



ASU (All-Dielectric Self-Supporting) fiber optic cables are typically packaged on wooden reels, which is the most common industry standard for factory shipment.



Standard Packaging: The fiber optic cable is wound onto a wooden reel, with the outer layer wrapped in protective material. Standard delivery lengths are typically 2 km or 3 km per reel, though other lengths can be customized upon request.


Customization Options: Some suppliers offer customized packaging (such as bespoke labeling, logos, or specific reel diameters), though this usually entails a minimum order quantity-for instance, a 20,000-meter minimum.


Transport Protection: The design of the wooden reel facilitates handling via forklift or crane, making it well-suited for long-distance transport. Packaging for outdoor fiber optic cables must provide protection against moisture and abrasion; relevant industry standards (such as those for telecommunication fiber optic cables) specify clear requirements for labeling, packaging, transportation, and storage.





Why choose us ?
product-600-434
01.

25 years of expertise in the production of optical cables for domestic and international markets

With a 25-year history in fiber optic cable manufacturing and 18 years of export experience, we have long been involved in the development of overseas telecommunications projects.



We have a proven track record of successful deployments across a wide range of applications-including duct, aerial, and direct-buried installations, as well as FTTH (Fiber-to-the-Home) projects and large-scale international turnkey contracts. With 30 years of dedicated focus on fiber optic cables and 18 years of international market experience, we offer reliable supply and consistent quality, making us a trusted primary manufacturer for engineering clients both at home and abroad.

02.

National standards; extensive domestic and international project experience

Our extensive export background has given us deep expertise not only in production processes but also in the specific product standards, project requirements, and packaging and delivery specifications of various countries and regions. Our in-house testing center ensures that all products are tested according to international IEC standards, guaranteeing they can withstand the rigorous environments encountered in overseas projects. Our product portfolio includes standard telecommunications cables, non-metallic self-supporting cables, and flame-retardant, rodent-resistant cables.

product-558-414





How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: adss optical cable, China adss optical cable manufacturers, suppliers, factory, Adss All Dielectric Self Supporting, Adss Fiber Cable, all dielectric optical fiber cable and mini adss asu , ASU Cable, Mini ADSS, Self Supporting Aerial Cable

Technical Characteristics





Fiber Count

2~24

Span

100m

Loose Diameter

2.0 mm

Loose Material

PBT (Polybutylene Terephthalate)

Strength Member

FRP*2

Outer Jacket Material

HDPE

Nominal Outer Diameter (±0.3)

7.5mm~9.0mm

Tension Strength

(Long-Term /Short-Term)

2400N/6000N

Crush Resistance

(Long-Term /Short-Term)

300 N/1000mm

1000 N/1000mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
