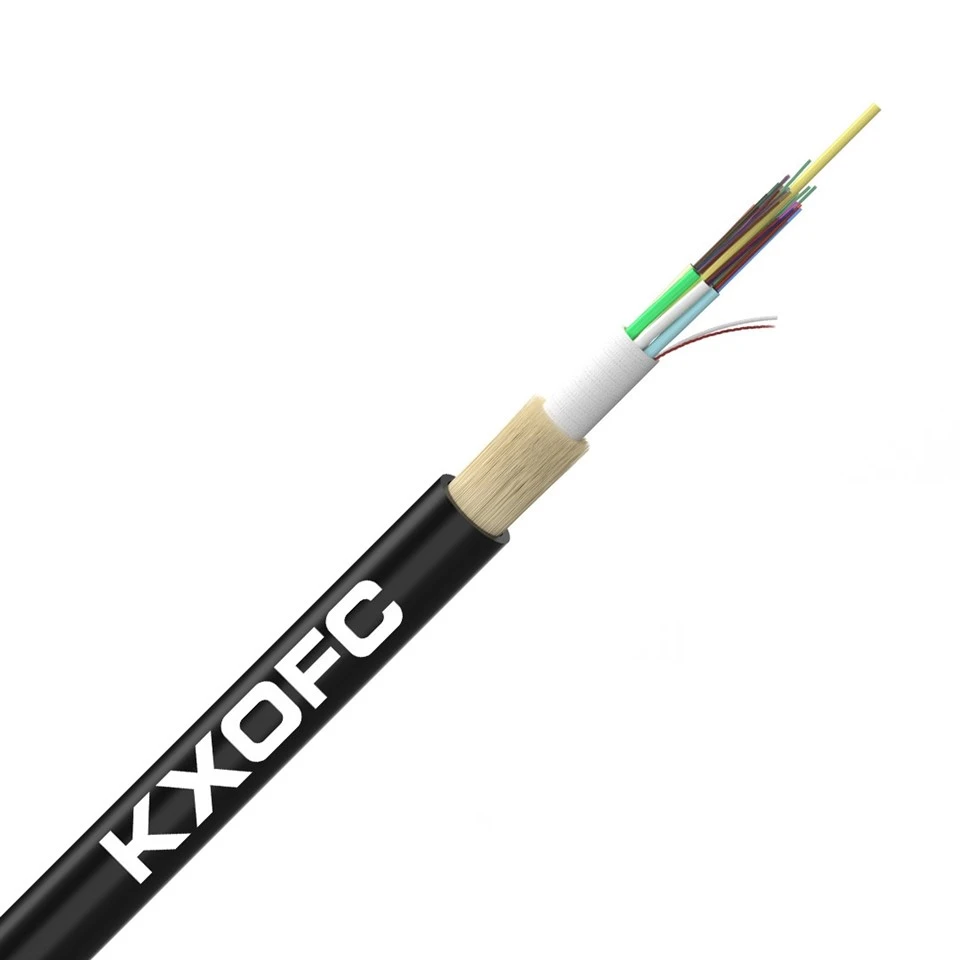

Adss Fiber Cable

Fiber count:12~288core
Fiber type:G652D Loose tube:2.1mm
Strength member:2.2mm FRP
Strength member:Aramid yarn
Inner Sheath:0.8mm PE
Outer Sheath:10.6mm PE
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .



product-848-676

All dielectric self-supporting ADSS Fiber Cable

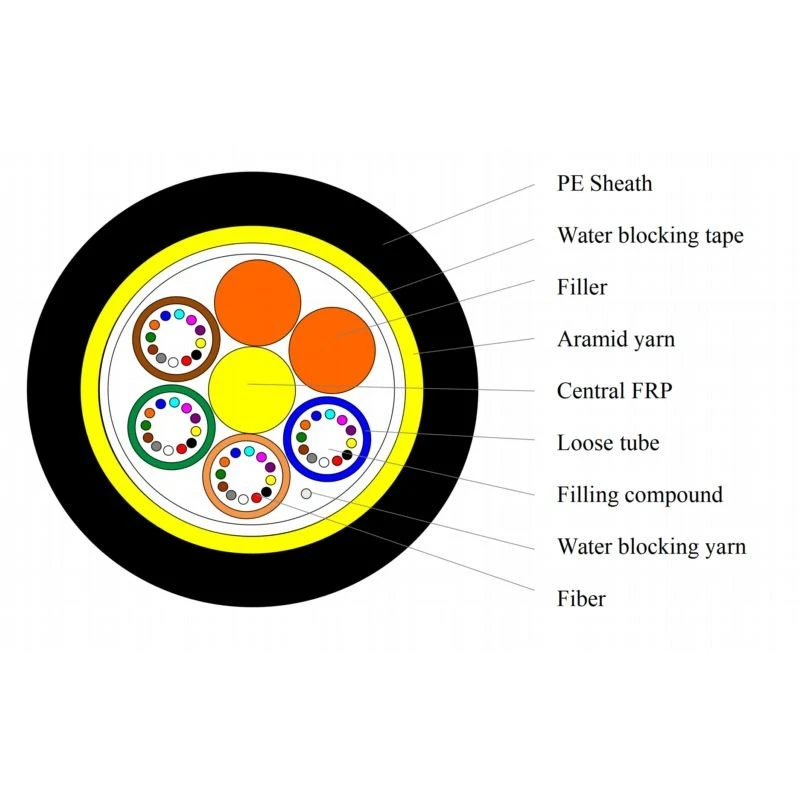

ADSS fiber cable optic Single jacket aerial optical fiber cable,the single Jacket ADSS Large Span 200M to 500M is a specific type of All-Dielectric Self-Supporting (ADSS) fiber optic cable designed for long-distance aerial installations, covering spans ranging from 200 meters up to 500meters. ADSS cable is loose tube stranded. Fibers, 250um, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.After the cable core is filled with filling compound. ADSS fiber cable is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.



ADSS, All-Dielectric Self-Supporting optical cable, is a special non-metal aerial optical cable widely used for power grid communication and overhead road network layout. Made of all insulating dielectric materials, ADSS cable contains no metal conductor inside, so it avoids induced current interference under high-voltage power lines safely.

product-410-366





Features
01.



Excellent AT performance, the maximum inductive at the operating point of AT sheath can reach 25KV.

02.



Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props.

03.



Large span lengths and the largest span is over 500m.

04.



Good performance of tensile strength and temperature.



product-636-474
Application of ADSS

Fits high-voltage corridor scenarios: Compared with common aerial cables, ADSS fits high-voltage corridor scenarios perfectly. It is the preferred cable for smart power grid communication, rural overhead communication and roadside pipeline-free network construction nationwide.







How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: adss fiber cable, China adss fiber cable manufacturers, suppliers, factory, Adss Aerial Fiber Optic Cable, Adss Fiber Cable, Adss Fiber Optic Cable, ADSS Optical Fiber Cable, all dielectric optical fiber cable and mini adss asu , Mini ADSS

Technical Characteristics





Fiber Count

12~144

Span

200m~500m

Loose Diameters

2.1 mm

Loose Material

PBT (Polybutylene Terephthalate)

Central Strength Member

FRP

Strength Member

Aramid Yarn

Outer Jacket Material

HDPE

Nominal Outer Dimensions

13.0mm~18.0 (±0.3)

Tension Strength

(Long-Term /Short-Term)

3000N/8000N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
