Self Supporting Aerial Cable

Fiber count:2~24core
Fiber type:G652D Loose tube:2.1mm
Strength member:2.0mm FRP
Armor: Steel tape
Sheath:9.0mm PE
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .




Self Supporting Aerial Cable

Mini ADSS with steel tape aerial optical fiber cable self supporting aerial cable ASU


Optical fibers are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. A rip cord and two FRP are placed with tube,armored steel tape and a round-shape PE sheath is extruded.



ASU armored optical cable is a self-supporting all-metal aerial cable; it is a loose-tube armored optical cable primarily designed for outdoor aerial installation. Its advantages include the ability to span long distances and resistance to rodent damage.

product-958-668

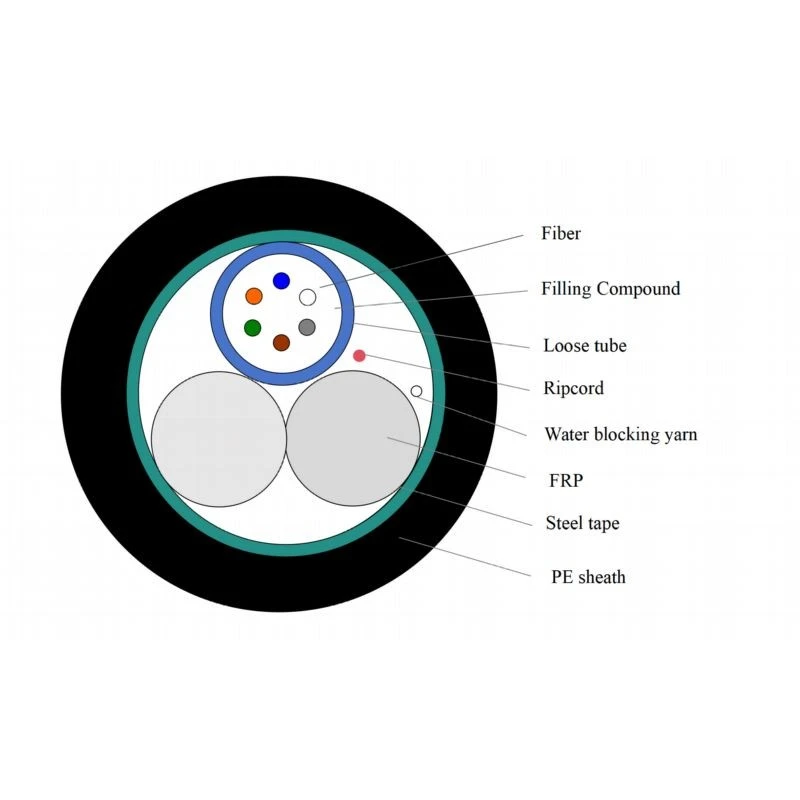

Structural Features

Choose the Self Supporting Aerial Cable that suits you best.

Loose Tube

Made from a high-modulus polyester material, it houses the optical fibers and is filled with a water-blocking compound, offering excellent hydrolysis resistance and mechanical strength.

01

Non-metallic Strength Members

Two high-strength FRP (Fiber-Reinforced Plastic) rods serve as central strength members, stranded together with the loose tube to form a compact cable core.

02

Ripcord and Filler Yarns

These facilitate cable stripping and fill the interstitial spaces, ensuring a more stable cable core.

03

Armor & Outer Sheath

Typically made of polyethylene (PE), this version also incorporates steel-tape armoring. While this introduces metal into the construction, it provides enhanced durability and excellent corrosion resistance.

04



Key advantage



Small cable diameter and light weight:

Features a simple structure that facilitates easy installation and imposes minimal load on poles or towers when deployed overhead.

High span capability:

Standard specifications support overhead spans ranging from 80 to 120 meters, with some products capable of achieving even longer spans.

product-834-430
product-594-504

why choose ASU?



ASU is marketed as a "mini-ADSS" cable, but it features steel-tape armoring-making it somewhat similar to the GYXTW type-and is priced comparably to GYXTW. It is a custom-made product that may be worth considering for specific requirements.



Six Core Advantages of Our Optical Cable Factory




Fully Integrated Industrial Chain

We manage the entire production process in-house, including optical fiber coloring, cabling, and jacketing. We source optical fibers from multiple top-tier manufacturers, ensuring controlled raw materials, stable costs, and reliable delivery schedules. This mitigates supply chain volatility and serves as the foundational guarantee for consistent product quality.

Rigorous End-to-End Quality Control & Comprehensive Certifications

We conduct comprehensive testing at every stage-from raw material intake and optical fiber attenuation testing to mechanical performance, temperature cycling (high/low), water pressure, and flame retardancy. Our products hold various domestic and international certifications, such as CE and ISO9001, meeting the stringent acceptance standards required by telecommunications operators, public tenders, and overseas export markets.

Intelligent Production Lines & Scalable, Flexible Capacity

Our modern production lines-covering stranding, cabling, and jacketing-feature real-time monitoring of cable appearance and print quality, as well as automated fiber allocation to minimize human error. We are equipped for both large-scale mass production of standard cables and flexible, small-batch production of diverse, specialized specifications.

R&D Capabilities & Full-Spectrum Product Customization

With an in-house R&D team, we develop specialized products such as ultra-low-loss optical cables, low-smoke zero-halogen (LSZH) flame-retardant cables, ADSS (All-Dielectric Self-Supporting) cables, indoor cabling solutions, and direct-burial cables. We offer extensive customization-including fiber count, jacket materials, custom printing, specific lengths, and structural design-to provide comprehensive cabling solutions.

Reliable Delivery & Supply Chain Cost Advantages

We maintain our own warehousing and raw material inventory systems. Our large-scale production, combined with the ownership of our factory facilities and land, provides a sustained cost advantage. This allows us to offer highly competitive pricing for equivalent quality; long-term clients can also lock in prices, shielding them from the impact of rising raw material costs or facility rental increases.

Professional Technical Support & Full-Lifecycle After-Sales Service

We provide technical support throughout the process, including product selection, route planning, and installation guidance. During production, we offer detailed test reports and facilitate factory-site inspections. We are also highly responsive regarding returns and exchanges, ensuring a seamless experience and reducing coordination costs for our clients.







How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434

Hot Tags: self supporting aerial cable, China self supporting aerial cable manufacturers, suppliers, factory, Adss Aerial Fiber Optic Cable, Adss Fiber Cable, Adss Fiber Optic Cable, Adss Optical Cable, ASU Cable, Mini ADSS

Technical Characteristics





Fiber Count

1~12

Loose Diameter

2.0mm

Loose Material

PBT (Polybutylene Terephthalate)

Dielectric Strength Member Material

FRP

Dielectric Strength Member size

2 x 2.0

Span

80m ~120m

Armor

Steel tape

Outer Jacket Material

PE

Nominal Outer Diameter (±0.3)

8.5 mm

Tension Strength

(Short-Term / Long-Term)

6000N/2400N

Crush Resistance

(Short-Term / Long-Term)

300 N/100mm

1000 N/100mm

Minimum Bend Radius

(Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
