Copper Fiber Composite Cable
video

Copper Fiber Composite Cable

GYFTY copper fiber composite cable

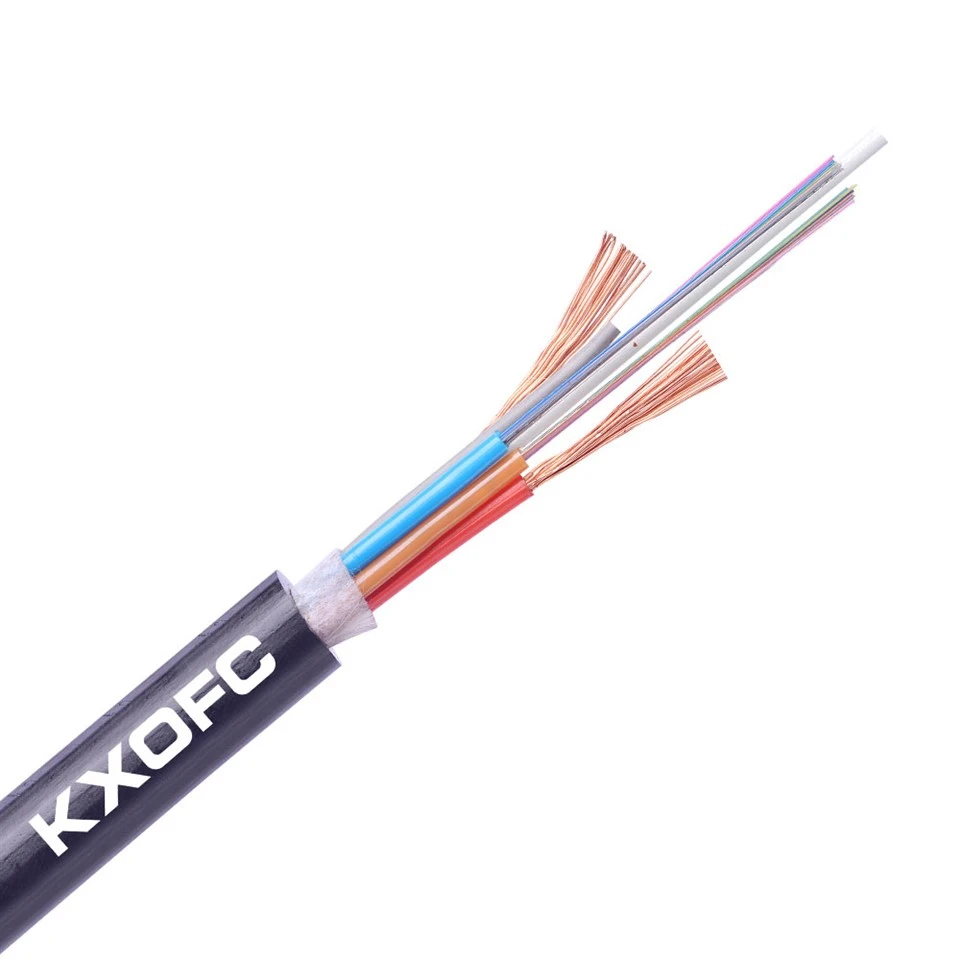

Copper fiber composite cable,optical fibers are housed in loose tubes that made of high-modulus plastic and full of jelly. The tubes (and copper wires) are stranded around a non-metallic central strength member and surrounded with water blocking tape to form a cable core. Outer PE sheath is extruded outside the core .duct optical fiber cable
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .



product-396-364

Full Introduction to the Structure and Applications of Composite Cables

Photoelectric composite cable (also known as hybrid photoelectric cable) integrates optical fiber communication units and power supply units within a single outer sheath. One single cable realizes high-speed optical signal transmission and equipment power supply simultaneously, eliminating two separate wiring procedures for optical cables and power cables. It is widely applied in 5G communications, security monitoring, transportation, power systems, offshore wind power and other fields.

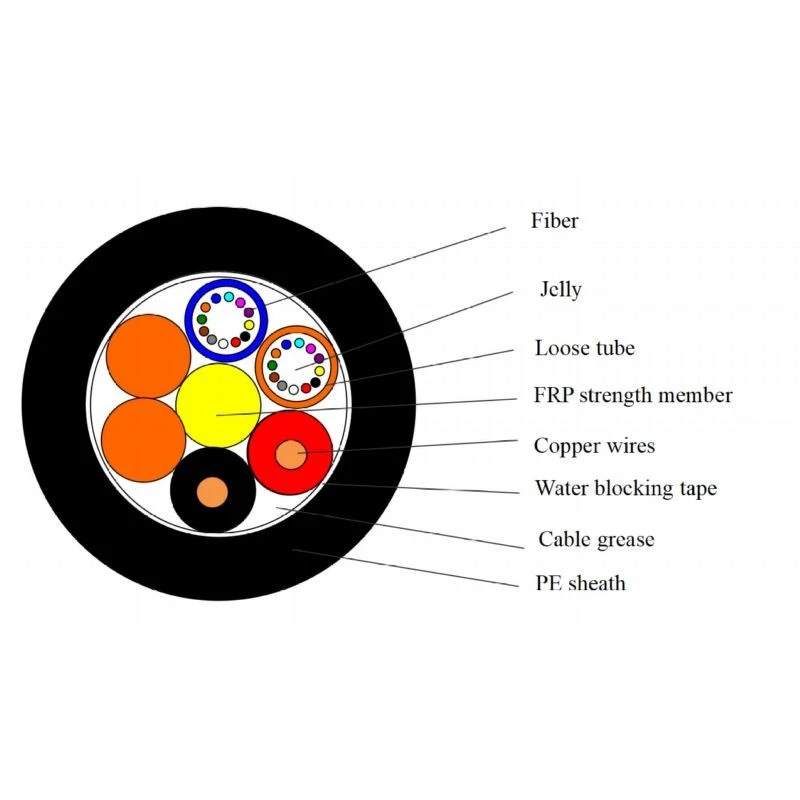

Cross-Section of Loose Tube Type Composite Cable

Optical Fiber Unit (For Signal Transmission)

Optical fiber: G.652D single-mode fiber is the mainstream type, with fiber counts ranging from 2 to 144 cores, featuring wide bandwidth and immunity to electromagnetic interference. Fibers are cased in PBT loose tubes filled with water-blocking jelly. Excess fiber length is reserved inside the tube to resist bending, prevent water ingress and reduce micro-bending loss.



Power Conductor Unit (For Power Supply)

Conductor: Oxygen-free copper core (commonly used for low resistance); aluminum core is adopted for a small number of long-distance layouts. Cross-sectional area ranges from 1.5 to 120 mm². Insulation layer: PVC insulation with rated voltage of 300/500 V and 450/750 V, supporting 48 V DC remote power supply and 220 V low-voltage AC power supply.



Central Strength Member (Tensile Load Bearing)

Non-metallic types: FRP glass fiber and aramid yarn (lightweight, suitable for indoor use and lightning protection scenarios without metal components).







 key technologies
product-762-448
01.

Intermediate Protective Layers

Water-blocking filling / water-blocking tape: Fills all gaps in the cable core to block longitudinal water vapor penetration.

02.

Outer Sheath (Outermost Layer)

Black PE sheath: General-purpose for outdoor deployment, UV-resistant and resistant to extreme temperatures (-40℃ ~ +70℃)

product-856-488
Our Factory



product-604-460

25

years



We began manufacturing optical cables in 2001 and have focused on fiber optic cable production for 25 years.

30000

㎡



We own the land and have constructed our own factory facilities, with a workshop area spanning 30,000 square meters.

18

years



We began exporting optical fiber cables in 2008, and now have 18 years of export experience.





How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: copper fiber composite cable, China copper fiber composite cable manufacturers, suppliers, factory, Composite Fiber Cable, Copper Fiber Composite Cable, optical fiber composite low voltage cable

Technical Characteristics





Fiber Count

12~144 core

Loose Diameter

2.1mm

Loose Material

PBT(Polybutylene Terephthalate)

Central Strength Member

FRP

Conductive part

Copper wires

Outer Sheath Material

PE

Nominal Outer Dimension

9.0~15.0 mm (±0.3)

Tension Strength (Short-Term / Long-Term)

300N/600N

Crush Resistance (Short-Term / Long-Term)

1,000 N/100mm

300 N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.

Send Inquiry
