GYXTW Fiber Optic Cable
video

GYXTW Fiber Optic Cable

Fiber count:2~12core
Loose tube:2.1mm
Strength member:2x1.0mm Steel wire
Armor:Corrugated steel tape
Sheath:7.8mm PE
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .



product-560-372

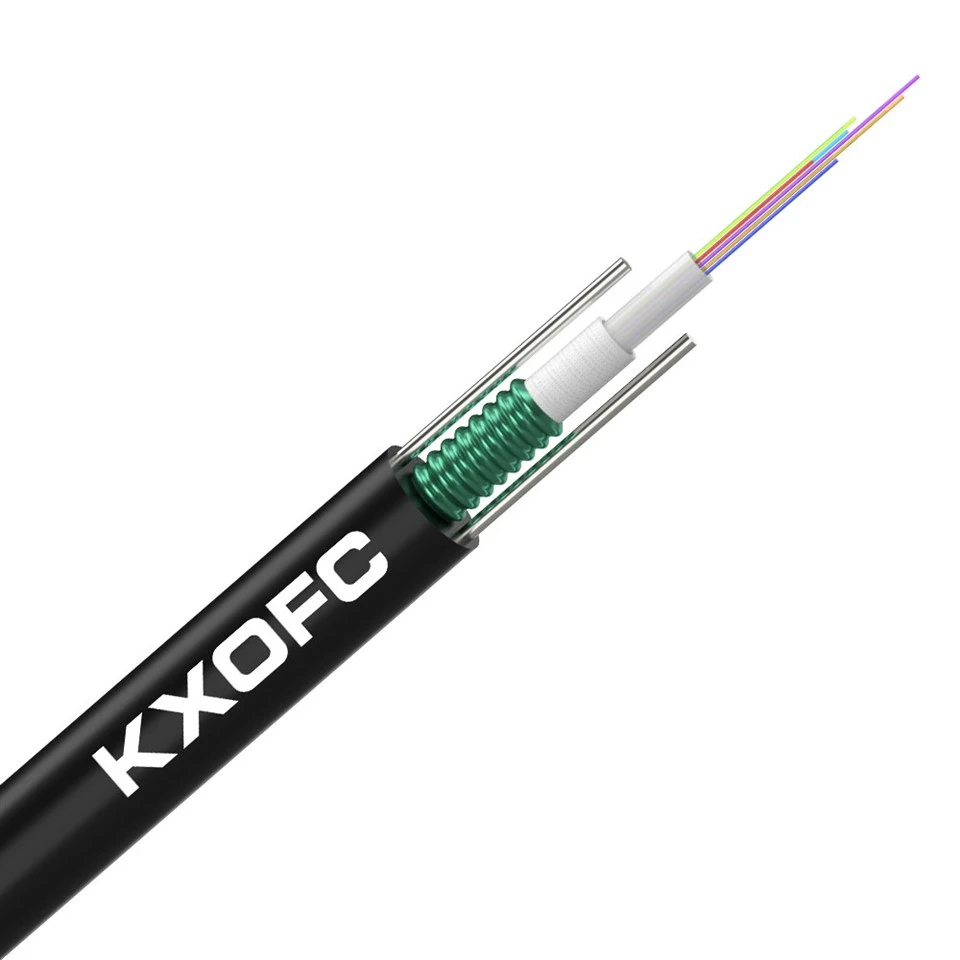

Uni-tube steel tape armored GYXTW fiber optic cable

GYXTW is an outdoor, central loose-tube fiber optic cable designed for telecommunications. It features steel-tape armoring and is commonly used in aerial or conduit-based installations. The specific fiber type depends on the exact model; while it can be configured with either single-mode or multi-mode fiber, single-mode is the more common choice in practical engineering applications.



What does this model name mean?


GY: Outdoor optical fiber cable for telecommunications.
X: Central loose tube structure (optical fibers are concentrated within a loose tube at the center of the cable).
T: Filled structure (the tube is filled with a water-blocking compound).
W: Steel-polyethylene bonded sheath incorporating steel wires-essentially a sheath reinforced with steel-tape armoring.
Encyclopedia.


Therefore, "GYXTW" can be understood as: an outdoor, central loose tube, filled, steel-tape armored optical fiber cable for telecommunications.

product-446-380
product-446-378
Environmental Characteristics

Transport/storage temperature: -40℃ to +60℃



PACKAGE



Standard reel length

2km/drum or 3km/drum;

standardized production

Standard packaging is wooden reels; fumigated wooden reels or composite-board reels are also available upon request.

product-682-418

Central loose tube Advantage


Central Loose Tube





In a central loose tube cable, the optical fiber unit is placed directly at the geometric center of the cable. Outside the loose tube, a water-blocking layer, an armoring layer, and an outer sheath are arranged in sequence. Two parallel strength members are typically embedded within the sheath layer.

product-586-382

The core advantages





- Minimized strain: The strain at the cable's center is zero, and the optical fibers are positioned in the optimal location.

- Compact outer diameter: With no stranding units, the cable diameter is 15%–25% smaller than that of a stranded cable.

- Cost-effectiveness: Fewer manufacturing processes and lower material consumption.

product-478-290
feature

Choose the cables that suits you best.

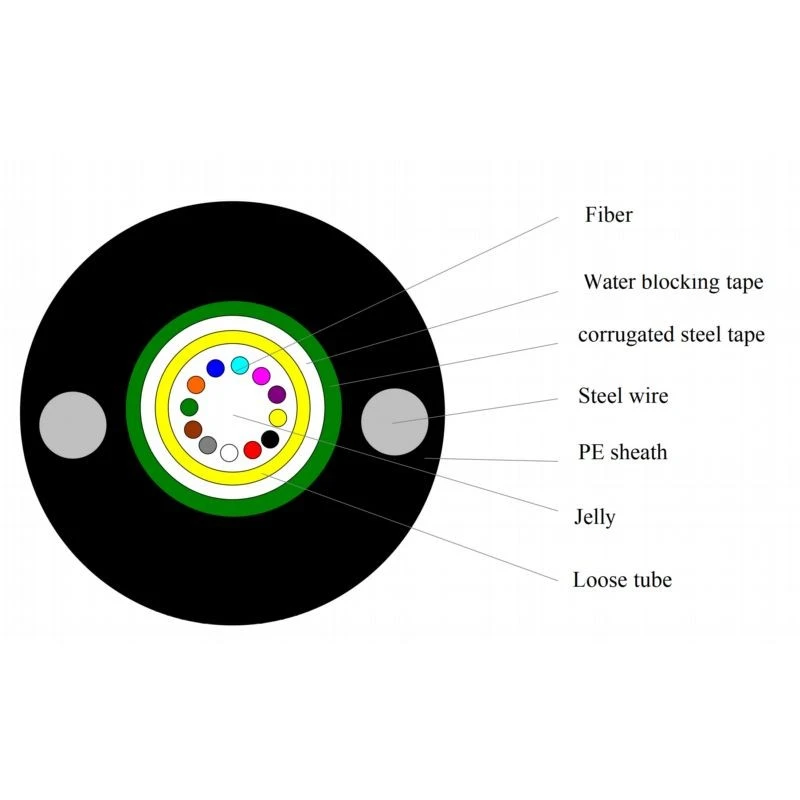

Optical fibers are placed inside a central loose tube filled with water-blocking gel. A double-sided plastic-coated steel tape is applied longitudinally over the tube, with two parallel steel wires positioned on either side for reinforcement, all enclosed within an extruded polyethylene outer sheath.

01



The cable features a small outer diameter and light weight, facilitating ease of installation, while offering excellent tensile strength, lateral crush resistance, and water-blocking performance.

02



Common installation methods include aerial deployment and placement within conduits; it is also suitable forduct. The typical operating temperature range is approximately -40°C to +60°C.

03



The fiber count is highly flexible, with various specifications available from different manufacturers-common configurations include 4, 6,8, 10and 12 fibers, among others.

04



Why choose us?






25 years

25 year`s specializing in optical cable production





15 years

15 years of experience in overseas exports; well-versed in overseas markets.





100%

100% of products are inspected and verified before export.









How To Cooperate With Us?

Welcome your inquiries regarding fiber optic cables. We are glad to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: gyxtw fiber optic cable, China gyxtw fiber optic cable manufacturers, suppliers, factory, Anti Rodent Fiber Optic Cable, Armored Fiber Optic Cable Single Mode, GYXTW Fiber Optic Cable, GYXTW Optical Fiber Cable 12 core, Outdoor Armored Fiber Optic Cable, Single Mode Armored Fiber Optic Cable

Technical Characteristics





Fiber Count 2~24
Loose Diameters 2.0~2.5mm
Loose Material PBT (Polybutylene Terephthalate)
Strength Member Material Steel wire
Strength Member size 2x1.0mm steel wire
Armor Corrugated steel tape
Outer Jacket Material PE
Nominal Outer Dimensions 8.0mm (±0.3)

Tension Strength

(Long-Term /Short-Term)

600N/1500N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic) 10 x OD / 20 x OD



*All above the cable size can be customized.
