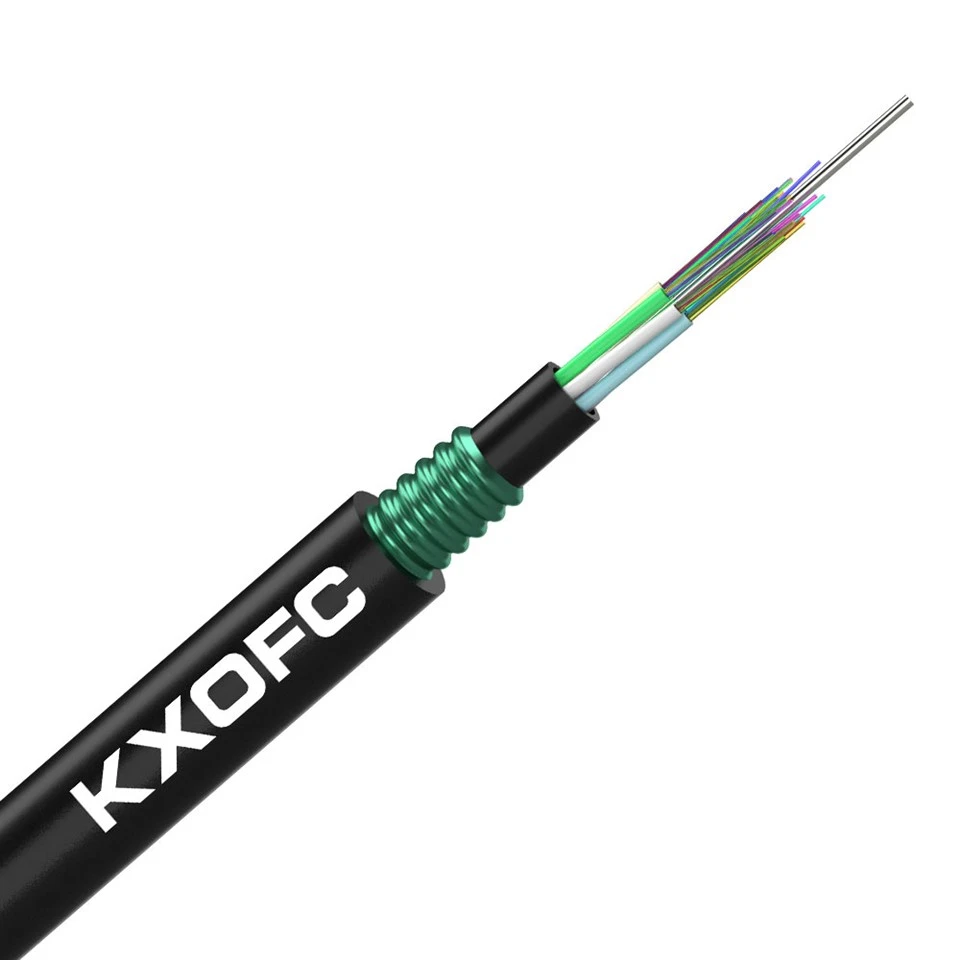

Direct Burial Armored Fiber Optic Cable
video

Direct Burial Armored Fiber Optic Cable

Fiber count:12~288core
Fiber type:G652D Loose tube:2.1mm
Strength member:2.0mm Steel wire
Inner Sheath:0.8mm PE
Armor:Steel tape
Outer sheath:10.0mm
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and in sale optical fiber cable to more than 30 countries and have 18 years` rich experience to export cables .



product-802-544

Direct burial armored fiber optic cable stranded multi-tubes metal fiber cable GYTY53


GYTY53 direct burial optical fiber cable, Optical fibers are housed in loose tubes that made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a central strength member to form a cable core. The core is protected with water blocking tape ,a layer of inner PE sheath and corrugated steel tape. Then another layer outer PE sheath is extruded.



GYTY53 is a type of outdoor optical fiber cable for telecommunications. Its full description can be understood as: a loose-tube, stranded, jelly-filled outdoor telecommunication optical cable featuring a metallic strength member, a polyethylene inner sheath, a longitudinally applied corrugated steel tape armor, and an outer polyethylene sheath. It is commonly used for direct-burial or duct-based installations.

product-480-386



product-644-368
What do the designations in this fiber optic cable's name mean?


GY: Outdoor fiber optic cable for telecommunications.
T: Stranded loose-tube structure, with optical fibers housed inside loose tubes.
Y: Polyethylene inner sheath.
53: Steel-tape armor with a polyethylene outer sheath; "5" denotes longitudinally applied corrugated steel-tape armor, and "3" denotes the polyethylene outer sheath.

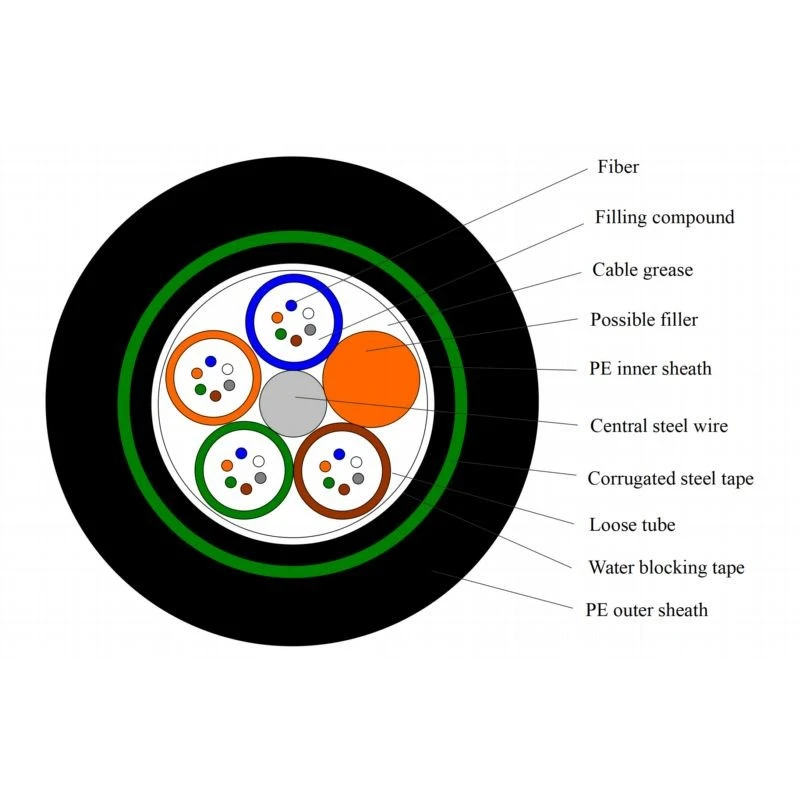

Internal Composition


Optical Fibers:

Single-mode or multi-mode optical fibers are used, commonly for long-distance and inter-office communication.

Loose Tubes:

Optical fibers are housed within high-modulus plastic loose tubes, which are filled with water-blocking gel to protect the fibers and prevent water ingress.

Strength Member:

A central metallic strength member (such as phosphated steel wire) is included to enhance tensile strength.

Cable Core Filling:

The loose tubes are stranded around the central strength member to form a circular cable core, with the interstitial spaces filled with a water-blocking compound.

Inner Sheath:

A polyethylene inner sheath is extruded over the cable core.

Armoring Layer Outer Sheath:

A longitudinally applied, double-sided plastic-coated steel tape provides increased resistance to lateral pressure and compression, as well as enhanced moisture protection.
A polyethylene outer jacket is extruded as the final layer to complete the cable construction.

Key Advantages




Safe and Reliable‌:

‌ Buried underground, these cables are less susceptible to external damage and have a lower failure rate; unlike overhead lines, they are not prone to damage from vehicle collisions, high winds, or human interference.

Robust Protection‌:

‌Featuring an outer layer of steel tape or steel wire armor, they are resistant to mechanical damage, rodent gnawing, and soil corrosion-capable of withstanding the pressure of heavy vehicles passing overhead.

Waterproof and Moisture-Resistant‌:

Designed with water-blocking features, they offer excellent protection against moisture and water, ensuring stable signal transmission even in complex underground environments.

‌Low Maintenance‌:

They require less frequent inspection, resulting in a lower daily maintenance workload compared to overhead lines.

Environmentally Friendly‌:

‌ By eliminating the need for utility poles or towers, they contribute to a cleaner, more aesthetically pleasing urban landscape and do not occupy valuable surface space.

Superior Transmission Performance‌:

Less susceptible to interference and characterized by low transmission loss, they effectively enhance transmission efficiency.





How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: direct burial armored fiber optic cable, China direct burial armored fiber optic cable manufacturers, suppliers, factory, Direct Burial Armored Fiber Optic Cable, direct burial optical fiber cable, Direct Burial Single Mode Fiber Optic Cable, Fiber Optic Cable Buried, Fiber Optic Cable for Outdoor Use, Outdoor Fiber Optic Cable Single Mode

Technical Characteristics





Fiber Count

12~144 core

Loose Diameters

2.1mm

Loose Material

PBT

Central Strength Member

Steel wire

Water blocking material

Water blocking tape

Inter Jacket Material

PE

Armor

Corrugated steel tape

Outer Jacket Material

PE

Nominal Outer Dimensions

11.0~17.0 mm (±0.3)

Tension Strength (Short-Term / Long-Term)

3000N/1000N

Crush Resistance (Short-Term / Long-Term)

3,000 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
