Composite Fiber Cable

GJXH+RVV copper wires drop optical fiber cable composite fiber cable

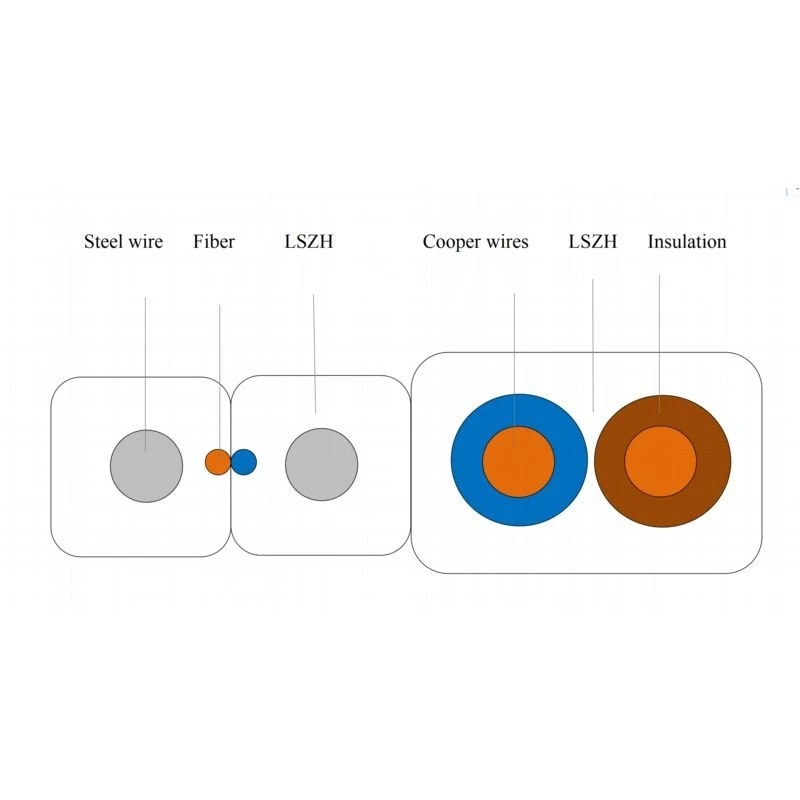

The optical fiber is positioned in the centre.Two parallel steel or FRP are placed at the two sides,the cable part connect with two units PVC coated copper wire,then the cable is completed with LSZH sheath.
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and have long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables till now.



Structure & Features




product-2566-1358

Cable Structure







  • Flat butterfly hybrid design, integrating fiber unit and insulated copper power conductors.





  • Dual steel wires as tensile members, LSZH low smoke zero halogen outer jacket.







product-1080-1080

Cable Features







  • One cable for both optical signal transmission and power supply.



  • LSZH material: flame retardant, low smoke, environment-friendly.



  • Good tensile strength, easy stripping and fast installation.



  • Isolated optical & electrical units to prevent crosstalk.





our Machines







  • Automated extrusion line with full-process online inspection.







  • Precise tension control for consistent fiber and copper performance.
.jpg




  • Flexible customization of copper size, fiber type, printing and length.









  • Export standard packaging and reliable lead time.
.jpg



FAQ





product-470-408

What is the main function of this GJYXCH hybrid cable?

It integrates optical fiber for high-speed data transmission and copper conductors for low-voltage power supply in one flat butterfly cable. Only one cable run is needed to deliver both network signal and power, which greatly simplifies wiring work.

Why is LSZH material chosen for this cable?

LSZH (Low Smoke Zero Halogen) sheath is flame-retardant, low-smoke and non-toxic. In case of fire, it releases little toxic gas and smoke, meeting fire safety requirements for indoor, hotel and smart building installation.

What are the advantages of double steel wire strength members?

The two galvanized steel wires on both sides provide excellent tensile strength. They protect the optical fiber from stretching damage during aerial pulling and installation, supporting overhead laying for monitoring and AP projects.

Can you customize the specifications of this hybrid fiber-copper cable?

Yes. We support customization on fiber type, copper wire gauge, cable length, outer printing marking and color. Our automated production line can arrange flexible production according to your project requirements.

What typical application scenarios is GJYXCH suitable for?

It is widely used for IP camera monitoring, FTTH home broadband, outdoor Wi-Fi AP / small cell remote power supply, and fire-safe indoor cabling in smart buildings.









own brand





FTTH drop cable-Ink printing

Flat cable-Plasma pringting

Outdoor cable GYTC8S-Iron printing

Jumper cable- SC/UPC-SC/APC

GYTC8S 24 core -wooden drum

FTTH cable-1km drum

FTTH cable-carton packing

Patch cords-Pallet package






Pack and ship


Patch cords in Pallet delivery

FTTH cable in cartons packing

Flat cable in plywood drum package

4b86f9a7e7a1b777db558f0849be4352

eedd5e3aac661809b4fc7f60d27f57d8




Applications

Smart Street Lamps

Smart street lamps integrate multiple functions including lighting, traffic monitoring, environmental monitoring, Wi-Fi, 4G/5G base stations, information displays, and charging piles. The internal space of a street lamp pole is narrow, and wiring each device individually would be extremely crowded and chaotic.

Park Security Monitoring

Security monitoring systems in large enterprise parks, campuses, and communities have the characteristics of "dispersed points, long distances, and difficult power access." Cameras and other devices are typically installed on street lamp poles, building exterior walls, and other locations where accessing power is a prominent issue.

DC Remote Power Supply System

Provides centralized power supply and unified operation and maintenance for dispersed active devices in a network. By utilizing photoelectric composite cables, this system achieves efficient co-cable transmission of electrical power and optical signals, resulting in low construction costs and high operation and maintenance efficiency.

Applications of Photoelectric Composite Cable


The photoelectric composite cable integrates optical fibers and power transmission copper wires into a single cable, simultaneously addressing the two major requirements of signal transmission and equipment power supply. This "multi-purpose in one cable" characteristic has led to its widespread application in various fields such as communication networks and smart parks.







Hot Tags: composite fiber cable, China composite fiber cable manufacturers, suppliers, factory, Composite Fiber Cable, Copper Fiber Composite Cable, optical fiber composite low voltage cable

Technical Characteristics





Fiber Count 1~4
Fiber type G657A1 or A2
Strength Member Material Two steel wire
Strength Member size 2 x 0.4mm
Conductor Cooper wire
Conductor Size 2.4mm*2
Outer Jacket Material LSZH
Outer Jacket size 2.0mm*3.0mm+3.4mm*5.9mm

Tension Strength

(Short-Term / Long-Term)

100N/200N

Crush Resistance

(Short-Term / Long-Term)

1,000 N/100mm / 2200 N/100mm

Minimum Bend Radius

(Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
