Anti Rodent Fiber Optic Cable
video

Anti Rodent Fiber Optic Cable

Uni-tube armored anti rodent fiber optic cable GYXTY

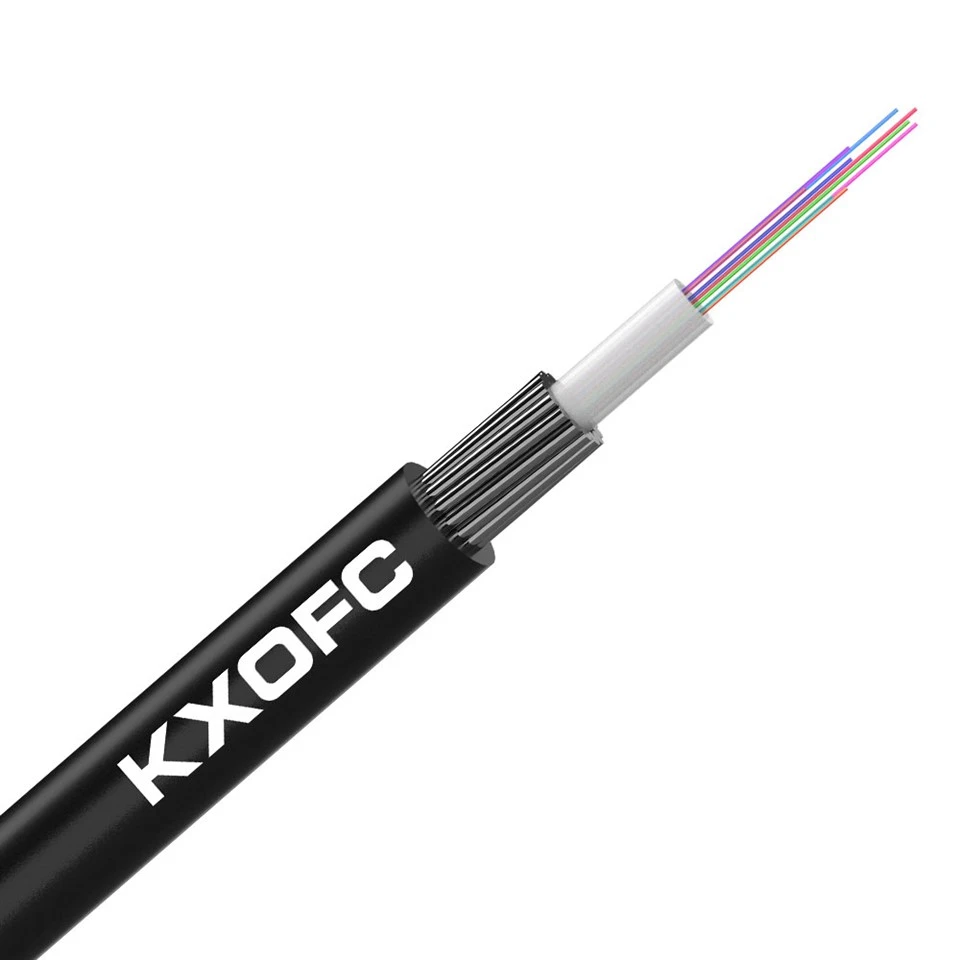

GYXTY anti rodent fiber optic cable,optical fibers are housed in a loose tube that is made of high-modulus plastic (PBT) and with filling compound. Anti rodent fiber optic cable,the tube is armored with a layer of 10 or 12 steel wires. Then a PE sheath is extruded.
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and have longt-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .



product-490-390

Structural Description

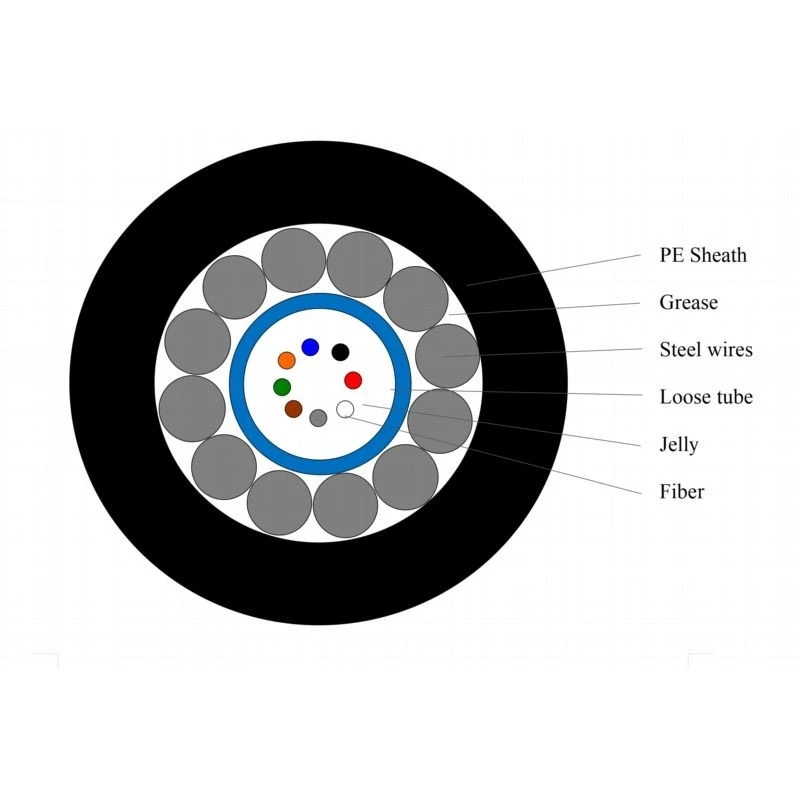

The GYXTY optical cable is a central-tube, rodent-resistant cable that complies with the YD/T 769-2010 and IEC 60794-1 standards. Its construction consists of single-mode or multi-mode optical fibers housed within a loose tube made of a high-modulus polyester material, with the tube filled with a water-blocking compound. The loose tube is further surrounded by water-blocking materials and steel wires, and then enclosed in a polyethylene sheath to form the finished cable.



Structural Characteristics

This optical cable achieves compliance with relevant mechanical and thermal performance standards by controlling the excess length of the optical fibers. It features high-strength, hydrolysis-resistant loose tubes filled with a specialized compound that protects the fibers, while offering excellent lateral pressure resistance and flexibility. A steel wire provides tensile strength, and the PE sheath ensures resistance to ultraviolet (UV) radiation. The cable is compact and lightweight, facilitating ease of installation. It is suitable for both duct and aerial deployment, available in configurations ranging from 2 to 24 fibers, and designed for storage and operation within a temperature range of -40°C to +60°C.

product-522-384





Key advantage
01.

Rodent and Moisture Resistance

The sheath design inherently resists rodent damage, while water-blocking materials and internal filling gel provide longitudinal water resistance-making it ideal for environments prone to moisture or rodent activity.

02.

Excellent Mechanical Properties

Steel-wires armoring provides high tensile strength, and the loose-tube structure offers resistance to lateral pressure, ensuring the cable remains intact during installation.

03.

Lightweight and Easy to Install

With a small outer diameter and low weight (e.g., approximately 76 kg/km for 2–12 core models), the cable is easy to handle, whether pulled through conduits or installed overhead.

04.

Strong Weather Resistance

The PE sheath is UV-resistant, and the cable is designed to withstand temperatures ranging from -40°C to +70°C, ensuring reliable long-term performance in outdoor environments.















How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: anti rodent fiber optic cable, China anti rodent fiber optic cable manufacturers, suppliers, factory, anti rodent biting fiber cable, Anti Rodent Fiber Optic Cable, Armored Fiber Optic Cable Single Mode, GYXTW Fiber Optic Cable, Outdoor Armored Fiber Optic Cable, Single Mode Armored Fiber Optic Cable

Technical Characteristics





Fiber Count 2~24
Loose Diameters 2.0~2.8 mm
Loose Material PBT(Polybutylene Terephthalate)
Strength Member Material Steel wires
Strength Member size 9/10/11/12 steel wires armored
Outer Jacket Material PE
Nominal Outer Dimensions 7.8~9.0 mm (±0.3)

Tension Strength

(Long-Term /Short-Term)

600N/1500N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic) 10 x OD / 20 x OD



*All above the cable size can be customized.
