Outdoor Aerial Fiber Optic Cable
video

Outdoor Aerial Fiber Optic Cable

Fiber count:2~24core
Loose tube:2.3mm
Armor:12x0.6mm steel wires
Sheath:8.0mm PE
Messenger:7*1.0mm stranded steel wires
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables.

product-464-400

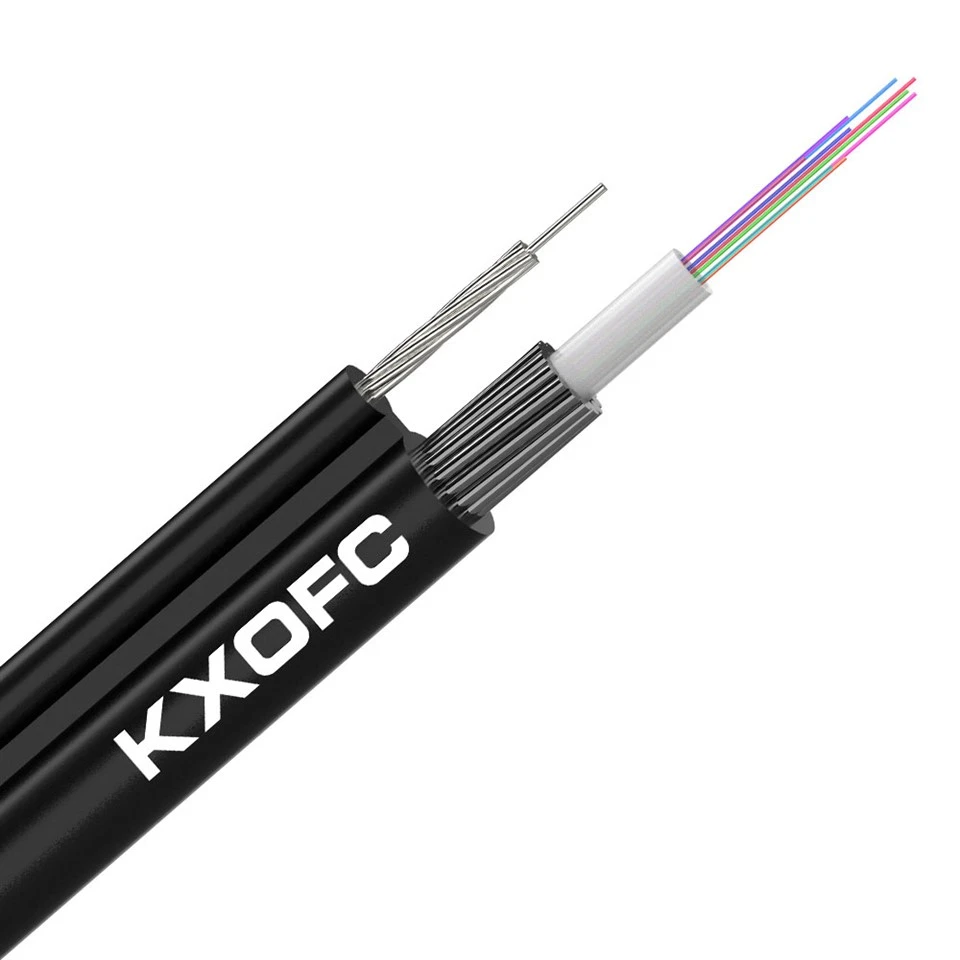

Self-supporting steel armored outdoor aerial fiber optic cable GYXTC8Y


GYXTC8Y outdoor aerial fiber optic cable is designed for use in aerial outside plant installations. Fibers are housed in loose tubes that made of high-modulus plastic and filled with jelly. The steel wires around the central loose tube to form a cable core. PE outer coating, made in the shape of figure 8 , self-support part 7 steel wires (or 1 single steel messenger) woven together.



The figure-8 self-supporting optical fiber cable is an outdoor communication cable designed for aerial installation. It features an integrated structure-encased in a polyethylene sheath-that combines the optical cable with a high-strength steel wire strand (messenger wire), resulting in a cross-section shaped like the numeral "8." This design provides exceptional tensile strength, facilitating aerial deployment and reducing installation costs. These cables are primarily used for long-haul and inter-office communications, and are also suitable for metropolitan area networks (MANs), access networks, and Fiber-to-the-Home (FTTH) applications. The product complies with relevant standards, such as YD/T 1155 and IEC 60794-1, and offers excellent mechanical performance, stable temperature characteristics, as well as effective moisture and water resistance.

product-438-396

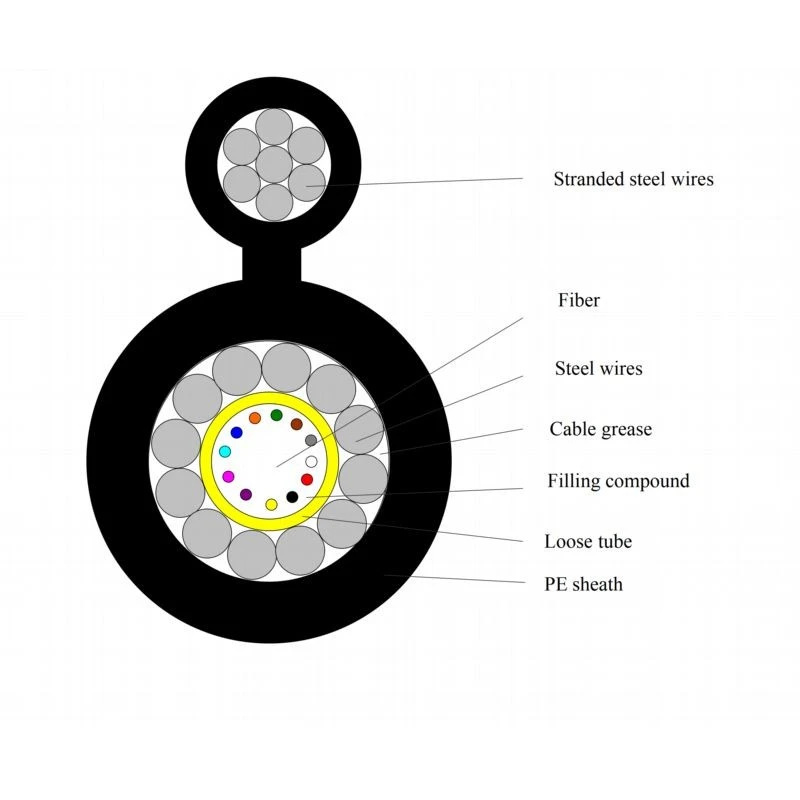

sTRUCTURE OF GYXTC8Y

Steel wires armored fig.8 optical fiber cable



FIBER

Optical cables feature low-loss characteristics. By precisely controlling the excess length of the optical fibers within the loose tubes, the cables achieve excellent tensile performance and temperature stability, typically operating within a range of -40°C to +70°C.



LOOSE TUBE

The PBT material used for the loose tubes offers superior hydrolysis resistance and high mechanical strength.



GREASE

The loose tubes are filled with a specialized water-blocking compound, and the cable core is completely filled with water-blocking material. Combined with a longitudinally applied plastic-coated steel tape (PSP) or plastic-coated aluminum tape (APL) moisture barrier, this creates a fully water-blocked cross-section, ensuring exceptional longitudinal water-blocking and moisture-proof performance.



ARMOR

A layer of steel wire wrapped around the cable provides excellent protection against rodent damage and enhances the cable's resistance to lateral pressure.



MESSENGER

A high-strength galvanized steel strand serves as a self-supporting element, providing high tensile strength. This facilitates self-supporting aerial installation, eliminating the need for separate suspension wires and hooks, thereby reducing installation costs.



PE SHEATH

The UV-resistant polyethylene (PE) sheath allows the cable to withstand outdoor environments, with a designed service life of over 30 years.





product-428-408
PACKAGE

This cable is typically supplied on wooden reels.

The standard length is 3 km, though other lengths can be customized.





How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: outdoor aerial fiber optic cable, China outdoor aerial fiber optic cable manufacturers, suppliers, factory, Aerial Fiber Optic Cable, Fiber Optic Overhead Cable, fig 8 self support optical fiber cable, Outdoor Aerial Fiber Optic Cable, Self Supporting Aerial Fiber Cable, Self Supporting Fiber Optic Cable

Technical Characteristics





Fiber Count

2~12

Loose Diameters

2.2 mm

Loose Material

PBT ((Polybutylene Terephthalate))

Self Strength Member

Steel wire

Surrounded steel wires

12x1.0mm,Plastic coated

Outer Jacket Material

HDPE

Messenger

7*1.2mm steel wires

Nominal Outer Dimensions

8.0mm*13.5mm(±0.3)

Tension Strength

(Long-Term /Short-Term)

3000N/7000N

Crush Resistance

(Long-Term /Short-Term)

300 N/1000mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
