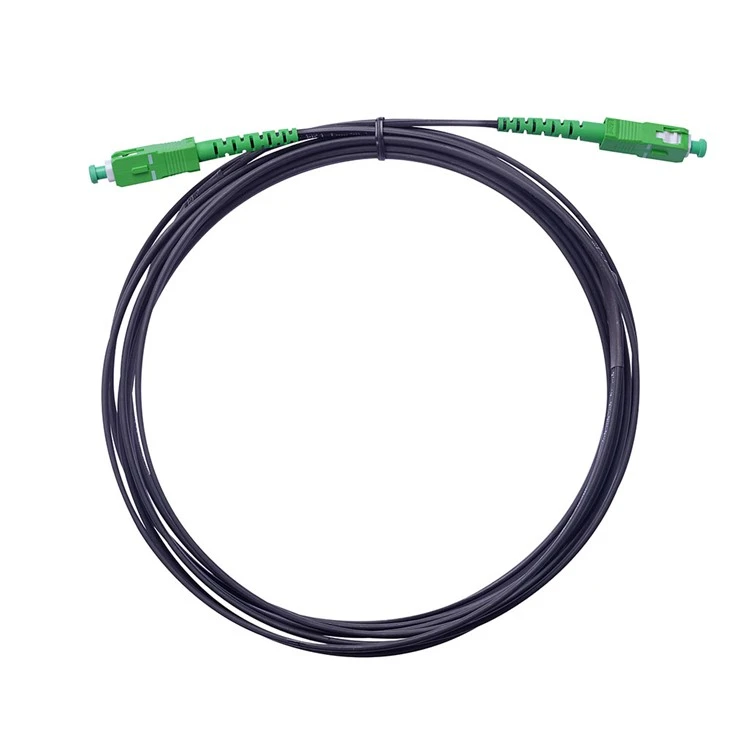

Patch cord indoor drop cable with connectors SC/APC to SC/APC patch cable
Drop cables are cables that run from the distribution point or cable to the subscriber/user.
The connectors allow fiber optic patch cord to be rapidly connected to an optical switch or other telecommunications/computer device.
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and have long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .



product-450-302

Introduction of jumper cable SC/APC-SC/APC

An APC jumper cable also named patch cord is a fiber optic patch cord featuring an 8-degree angled end-face polish; its key characteristics include low return loss and enhanced signal stability. Typically distinguished by a green connector housing, it is commonly used in applications sensitive to reflections, such as cable television and Fiber-to-the-Home (FTTH) networks.

Standard reel length:5m,10m,20m,35m, 45m,50m,75m,100m,150m,200m,300m;

Other lengths are also available.

product-488-424
product-672-430

Printing



OEM is welcome, we can print your brand on cable jacket,the printing is clear and visible,you can identify very well.



Packing

4~30 rolls/carton ,every roll will be packed into cartons, and each carton will mark patch cords type,qty and length ,we also can be print your logo on the cartons.

product-456-414









core parameters

When purchasing SC/APC patch cords, the following core parameters should be given special attention to ensure transmission stability in reflection-sensitive scenarios such as broadcasting:

Core Optical Performance Parameters

Insertion Loss: Industry standard requires ≤0.2dB; high-quality products can control it within 0.1dB, reducing signal transmission attenuation.



Return Loss: A core advantage of APC technology, requiring ≥65dB, far exceeding the ≥50dB requirement of UPC patch cords, suppressing optical path reflection.

01

End Face and Structural Parameters

Grinding Angle: Must be a standard 8° beveled end face grinding to ensure reflected light enters the cladding, avoiding signal noise and laser jitter.



 Ceramic Ferrule Accuracy: Ferrule concentricity ≤1.4μm, curvature radius controlled within 10~25mm, ensuring precise fiber core alignment.

02

Fiber and Sheath Compatibility Parameters

Fiber Type: Mainstream uses G.652D single-mode fiber; for high-bending scenarios, G.657A series bend-resistant fiber can be selected.

Sheath Material: PVC for standard server rooms, LSZH low-smoke halogen-free for enclosed spaces with high fire safety requirements, and armored sheath for outdoor rodent-prone environments.

03

Durability and Compliance Parameters

Matching/Removal Life: Meets wear standards after ≥1000 mating/removal cycles, ensuring long-term operational stability.

Industry Certifications: Products conforming to broadcasting/telecommunications industry standards are preferred, suitable for reflection-sensitive transmission scenarios such as CATV and IPTV.

04





How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: fiber optic connectors, China fiber optic connectors manufacturers, suppliers, factory, 2 Core Drop Cable, 4 Core Drop Cable, Drop Fibre Cable, Fiber Optic Cable Ftth, Flat Drop Fiber Cable, Flat Drop Fiber Optic Cable

Technical Characteristics





Cable Part
Fiber Count 1~4
Fiber type G657A1 or A2
Strength Member Material FRP or Steel wire
Dielectric Strength Member size 2 x 0.5mm /2x0.4mm
Messenger Material Steel wire
Messenger size 1.0mm / 7*0.33mm
Nominal Outer Dimensions(±0.3) 2.0 mm x 5.0 mm
Outer Jacket Material LSZH
Tension Strength (Short-Term / Long-Term) 300N/600N
Crush Resistance (Short-Term / Long-Term)

1000 N/100mm

2200 N/100mm

Minimum Bend Radius (Static / Dynamic) 20 x OD / 40 x OD
Connectors part
Connector type SC/UPC,SC/APC
Insertion Loss ≤ 0.25dB
Return Loss (For Single mode) UPC ≥ 50dB , APC ≥ 60dB
Repeatability ±0.1dB



*All above the cable size can be customized.
