Fiber Optic Patch Cord

Fiber Optic Patch Cord

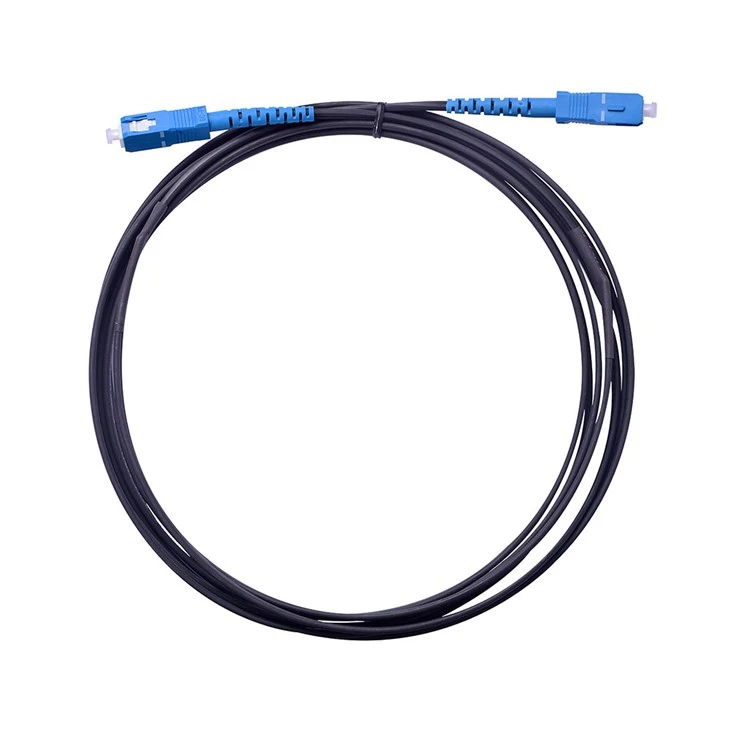

Patch cord indoor drop cable with connectors SC/UPC to SC/UPC patch cable
Drop cables are cables that run from the distribution point or cable to the subscriber/user.
Fiber patch cord, often called fiber patch cable, fiber jumper, or fiber patch lead, is a length of fiber cable that terminated with fiber optic connectors at each end. The connectors allow fiber optic patch cord to be rapidly connected to an optical switch or other telecommunications/computer device.
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and have long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .





product-484-452

Introduction of cable used in drop cable

GJYXCH is a self-supporting "butterfly-style" drop cable-often referred to as "flat drop cable"-primarily used in Fiber-to-the-Home (FTTH) scenarios to carry optical signals from a corridor splitter to the optical modem in your home or office.



Structural features

"Figure-8" Structure: The cable's cross-section resembles the numeral "8"; the upper section houses the optical fibers and sheath, while the lower section contains a metallic suspension wire (high-carbon steel). This design allows the cable to be self-supporting, eliminating the need for an additional steel strand during aerial installation.
Strength Members: Two parallel steel wires serve as internal strength members, providing excellent tensile strength and lateral crush resistance to protect the optical fibers.
Sheath: Made from Low-Smoke Zero-Halogen (LSZH) flame-retardant material, ensuring safety and environmental friendliness; the standard color is black, though custom colors are available.

product-444-402


product key technologies
product-462-248
01.

SC/UPC

SC: Stands for Subscriber Connector; it features a rectangular housing and a push-pull connection mechanism that requires no rotation, and is commonly found on devices such as routers, switches, and fiber optic transceivers.



UPC stands for Ultra Physical Contact; the end face is a polished, flat surface with a slight curvature, and the return loss is typically ≥50 dB, making it suitable for standard data transmission scenarios



02.

SC/APC

SC-APC is a standard interface type for fiber optic connectors. "SC" refers to the connector structure featuring a square housing and a push-pull locking mechanism, while "APC" indicates an end-face polished at an 8-degree angle to minimize light reflection. This combination is commonly used in single-mode fiber applications requiring high return loss performance. The connectors are distinctively green, clearly differentiating them from the blue SC/UPC connectors.

product-456-300





The quality identification of UPC jumper cable

‌Environmental adaptation test‌: After a temperature cycle of -40℃~+65℃, the insertion loss fluctuation is ≤0.25dB, and the performance has no obvious attenuation.

Core optical performance identification


‌Insertion loss‌: Measured with a return loss tester, high-quality UPC jumpers are ≤0.1dB, and regular qualified models are ≤0.3dB.
‌Return loss‌: The measured value of single-mode UPC jumper must be ≥50dB, and high-quality products can reach ≥55dB to avoid signal reflection interference.

01

End face process identification


‌Geometric parameters‌: radius of curvature 10~20mm, vertex offset ≤20μm, fiber height in the range of -0.05~+0.05μm, in line with IEC standards.
‌Appearance inspection‌: Observe with a 400x optical fiber microscope. There are no scratches, pits, or dust on the end surface, and the spherical surface is evenly polished without chipping.

02

Material and structure identification


‌Ferret Quality‌: Using Grade A zirconia ceramic ferrule, it will not become loose after repeated plugging and unplugging. The concentricity is ≤0.5μm to ensure precise docking of fiber cores.
‌Sheath and optical fiber‌: The wire body is flexible and resistant to bending, and has no pungent odor. The optical fiber complies with industry standards such as G.652D/G.657A.

03

Practical verification and identification


‌Continuity test‌: Use a red light pen to illuminate, there are no dark spots or breakpoints throughout the process, and the red light is evenly transmitted without local light leakage.

04









How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: fiber optic patch cord, China fiber optic patch cord manufacturers, suppliers, factory, 4 Core Drop Cable, Aerial Drop Cable, Drop Fibre Cable, Fiber Optic Cable Ftth, Flat Drop Fiber Optic Cable, Sc Apc To Sc Upc Patch Cable

Technical Characteristics





Cable Part
Fiber Count 1~4
Fiber type G657A1 or A2
Strength Member Material FRP or Steel wire
Dielectric Strength Member size 2 x 0.5mm /2x0.4mm
Messenger Material Steel wire
Messenger size 1.0mm / 7*0.33mm
Nominal Outer Dimensions(±0.3) 2.0 mm x 5.0 mm
Outer Jacket Material LSZH
Tension Strength (Short-Term / Long-Term) 300N/600N
Crush Resistance (Short-Term / Long-Term)

1000 N/100mm

2200 N/100mm

Minimum Bend Radius (Static / Dynamic) 20 x OD / 40 x OD
Connectors part
Connector type SC/UPC,SC/APC
Insertion Loss ≤ 0.25dB
Return Loss (For Single mode) UPC ≥ 50dB , APC ≥ 60dB
Repeatability ±0.1dB



*All above the cable size can be customized.

Send Inquiry
