Aerial Drop Cable

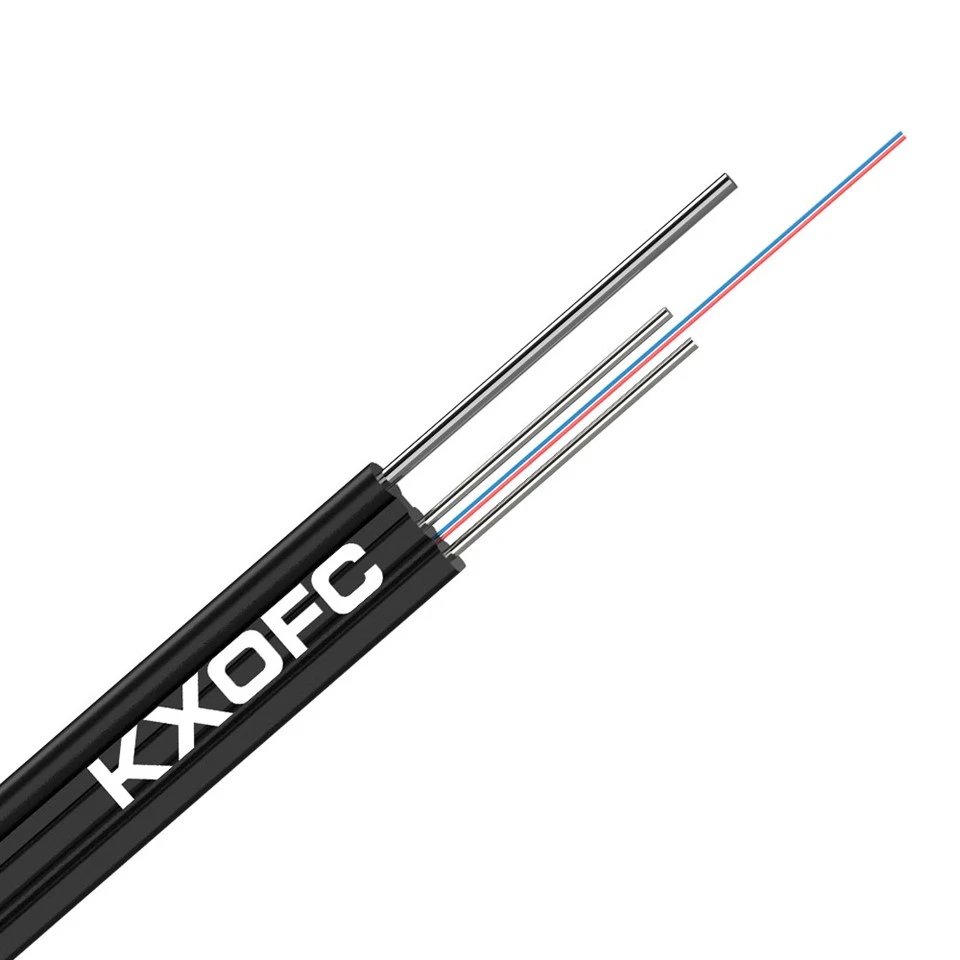

FTTH single steel self-supporting steel wire strengthen aerial drop cable GJYXCH
GJYXCH FTTH single steel self-supporting drop cable, Two parallel Fiber Reinforced steel wire are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or white color LSZH sheath.
Send Inquiry

Description

Technical Parameters

Products Description

Aerial Drop Cable

GJYXCH Self-Supporting Figure-8 Drop Cable for FTTH Aerial Installation



GJYXCH is a self-supporting butterfly drop cable designed for FTTH aerial drops. Its integrated figure-8 construction features a round messenger unit with a dedicated suspension steel wire that carries the installation tension, and a flat bow-type cable section containing a tight-buffered fiber, steel wire strength member and LSZH sheath.

The messenger wire is clamped directly onto poles or wall anchors - no separate messenger line required - so the cable section bears no installation stress, protecting the fiber. The flat section runs neatly along walls and poles, and the sheath strips easily for fast splicing.

Typical applications: aerial drop from pole to subscriber premises, short inter-building spans, and FTTH coverage for villas and dense residential areas. Recommended span up to 80 m (for longer spans, choose ADSS or ASU). Operating temperature: -40℃ to +60℃; compliant with IEC 60794. OEM available.



Single Steel Wire vs. Stranded Messenger


Our GJYXCH self-supporting figure-8 drop cable is available with two messenger options: a single galvanized round steel wire or a 7-strand steel strand (1×7)​. The cable section - tight-buffered fiber, strength member and LSZH sheath - is identical in both. Only the load-bearing messenger differs.

Single wire messenger



Simple, compact and lighter overall, with a slimmer figure-8 profile
Lower cost - the most economical option for standard drops
Stiff and straight, easy to clamp and tension during installation
Best for short spans, roughly 30–50 m between poles, on straight routes with light mechanical load

Aerial Drop Cable

Stranded messenger (1×7)​



Far more flexible - coils easily, resists kinking and does not snap when bent sharply
Superior fatigue resistance, ideal where the cable is repeatedly deployed and retrieved
Load distributed more evenly, giving better performance under wind-induced vibration and ice loading
Easier routing around corners, over undulating terrain and along curved pole lines
Best for spans of 60–80 m, high-wind areas and complex routes

4 Core Drop Cable

Why Choose us?

why choose us


Lorem ipsum dolor sit amet consectetur adipisicing elit.


why choose our products



Our company's foreign trade department and production workshop are located in the same factory building, with sales staff offices situated upstairs, achieving physical integration of the entire "order placement-production scheduling-production-shipping" process. Sales staff no longer need to travel across factory areas or go through multiple layers of internal processes; they can go down to the workshop at any time to check production progress, observe equipment operation, and confirm the warehousing of semi-finished and finished products. This allows them to promptly identify and resolve issues affecting delivery dates, such as production scheduling conflicts, material delivery delays, and process abnormalities.



Furthermore, the company has established a monthly production and sales meeting mechanism: foreign trade staff and the production department hold monthly meetings to jointly review order execution, forecast the following month's demand, and provide feedback on new customer requirements regarding specifications, packaging, and delivery. This ensures that production-side issues and market-side information are simultaneously assigned to specific individuals and timelines.



Contact us

How To Cooperate With Us?

Kexin Cable adheres to the business philosophy of "technology as the guide, quality as the market, and service as the customer win," and upholds the quality policy of "focusing on customer needs, implementing scientific management, and pursuing product perfection."

Our Goal: To provide customers with high-performance, cost-effective optical cables based on our extensive experience in optical cable production.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China 311300

WhatsApp

+86-18968035161

E-mail

faye@kexincable.com




Hot Tags: aerial drop cable, China aerial drop cable manufacturers, suppliers, factory, 2 Core Ftth Drop Cable, 4 Core Drop Cable, Flat Drop Fiber Optic Cable, ftth drop cable and patch cords, Outdoor Drop Cable, Outdoor Ftth Drop Cable

Technical Characteristics





No. of cable

1/2/4

Fiber Model

G.657A1

Strength Member

Material

Steel Wire

Diameter(±0.03)mm

0.4

NO.

2

Support member

Material

Steel Wire

Diameter(±0.03)mm

1.0

Outer Sheath

Material

LSZH

Colour

Black / white

Cable Diameter(±0.2)mm

2.0×5.0

Cable Wetght(±2)kg/km

19

Attenuation

1310nm

dB/km

0.40

1550nm

0.30

Allowable Tensile Strength

Short Term

N

600

Long Term

300

Allowable Crush Resistance

Short Term

N/100mm

2200

Long Term

1000

Min. bending radius

Without Tension

15.0×Cable-φ

Under Maximum Tension

30.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+60

Operation

-40~+60



*All above the cable size can be customized.
