2 Core Ftth Drop Cable

FTTH 2 core ftth drop cable steel wire strengthen round drop cable GJRH
GJRH is FTTH in round shape, the optical fibers G657A is placed in center , two parallel steel wires are placed at two sides. The cable is completed with LSZH sheath.
Send Inquiry

Description

Technical Parameters

our company

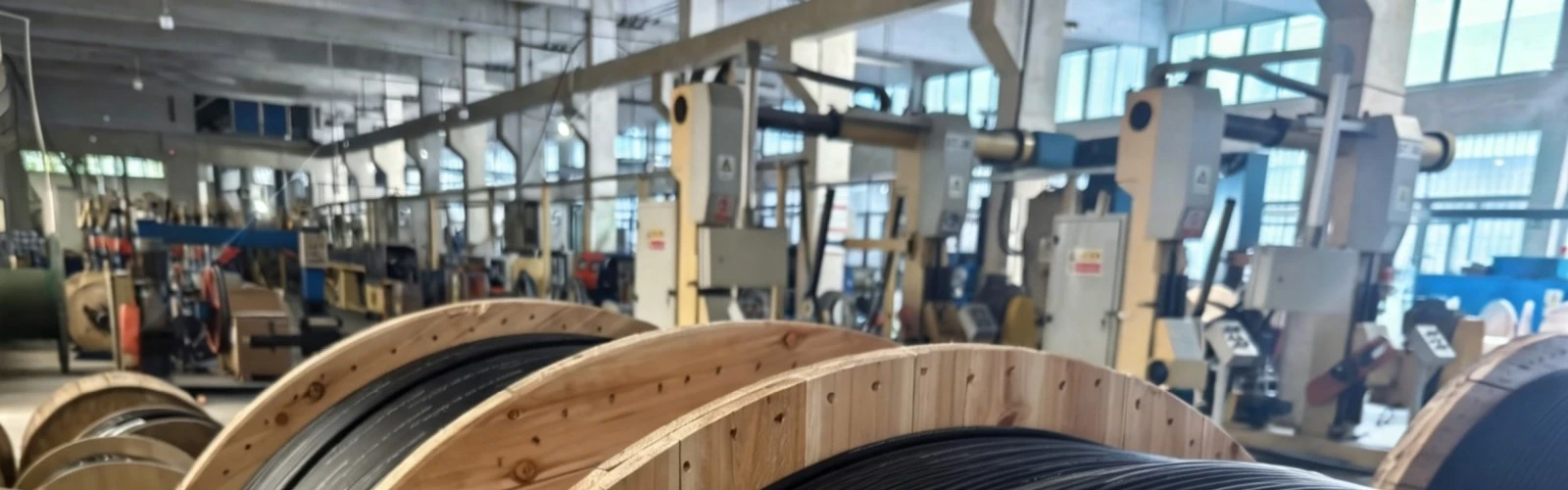

company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and have long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables till now.





Features





product-1706-1138

  • Simple structure, light weight.



  • Low smoke, zero halogen and flame retardant sheath.



  • Environment-friendly, good safety.



  • Circular cross-section design for easy access to ducts



  • Smaller diameter, soft and bendable.



  • Suitable for duct application.









photobank (11).jpg.jpg

Why choose us?


  • Strict raw material control and precise excess length control ensure stable optical performance and excellent bend resistance.



  • Automated production with online inspection for consistent quality and low defect rate.



  • Flexible customization on fiber count, cable length and printing marking.



  • Competitive pricing and stable lead time for FTTH access network orders.



  • Experienced export service and reliable after-sales technical support.



one-stop solution

professional team

high quality



product-2178-729





Installation Tips




GYTC8Y  .jpg

  • Strength Member Selection: Use GJXH (steel wire) for added tensile strength or GJXFH (FRP) for all-dielectric requirements in lightning-prone areas.



  • Bending Radius: Utilize G.657A fiber's bend-insensitive properties; however, avoid sharp 90-degree kinks to prevent long-term signal attenuation.



  • Correct Stripping: Use dedicated drop cable strippers to remove the jacket without nicking the glass fiber or damaging the parallel strength members.



  • Fast Termination: Combine with field-installable mechanical connectors for rapid "plug-and-play" home installations without the need for fusion splicing.



  • Secure Fastening: Use specialized drop cable clamps or staples that match the flat profile to avoid over-compressing the LSZH jacket during wall mounting.













product-891-456



Applications



  • FTTH/FTTX



  • High-speed optical routes in the building



  • High Performance optical network operation







Hot Tags: 2 core ftth drop cable, China 2 core ftth drop cable manufacturers, suppliers, factory, Aerial Drop Cable, Drop Fibre Cable, Fiber Optic Cable Ftth, Outdoor Drop Cable, Outdoor Ftth Drop Cable, Sc Apc To Sc Upc Patch Cable

Technical Characteristics





No. of cable

1/2/4

Fiber Model

G.657A1

Strength Member

Materia

Steel Wire

Diameter(±0.03)mm

0.4/0.5

NO.

2

Outer Sheath

Materia

LSZH

Colour

Black / white

Cable Diameter(±0.2)mm

3.0

Cable Weight(±2)kg/km

10

Attenuation

1310nm

dB/km

0.40

1550nm

0.30

Allowable Tensile Strength

Short Term

N

200

Long Term

100

Allowable Crush Resistance

Short Term

N/100mm

2200

Long Term

1000

Min. bending radius

Without Tension

15.0×Cable-φ

Under Maximum Tension

30.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+60

Operation

-40~+60



*All above the cable size can be customized.
