cable ftth 1 core

30+ years

Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.

30+ countries

In year of 2008, set up international sales department and sale optical fiber cable to more than 30 countries and have 18 years` rich experience to export cables .

• Simple structure and light weight.
• Good strip ability for easy splice and installation.
• LSZH sheath ensures the flame retardant performance.
• Suitable for FTTH self-supporting installation.

• Transport/storage temperature: -20℃ to +60℃

• Standard reel length: 1km or 2km; other lengths are also available.

• Payment term: T/T, L/C, D/P...
• For small orders: credit cards, Western Union money transfer and PayPal are all accepted.
• For other complex payment methods, further discussion is possible.

FTTH drop cable-Ink printing

Flat cable-Plasma pringting

Outdoor cable GYTC8S-Iron printing

Jumper cable- SC/UPC-SC/APC

GYTC8S 24 core -wooden drum

FTTH cable-1km drum

FTTH cable-carton packing

Patch cords-Pallet package





Patch cords in Pallet delivery

FTTH cable in cartons packing

Flat cable in plywood drum package

Composite drum full loaded into contianer

Solid wooden drum loading photo





# Complete Introduction to GJYXCH Self-Supporting Butterfly Drop Optical Cable

## I. Model Letter Explanation (National Standard YD/T 1997.1-2014)

**GJYXCH = Metal Suspension Self-Supporting, Metal Wire Reinforced, Low Smoke Halogen-Free Butterfly Drop Optical Cable**

- GJ: Access Network Butterfly Drop Optical Cable (Drop Cable)

- Y: **Metal Wire** (Both sides of the fiber core reinforcement are phosphated steel wire)

- X: Figure-8 Self-Supporting Structure (One-piece Molded Suspension)

- C: Self-Supporting Suspension Unit

- H: **LSZH Low Smoke Halogen-Free Flame Retardant Outer Sheath**

## II. Internal Structure (Figure-8 Integrated from Top to Bottom)

1. **Upper Suspension Unit**: Coarse phosphated steel wire suspension (main load-bearing, no additional steel strand required for overhead applications)

2. **Lower Butterfly-Shaped Cable Core Unit**

- Center: Single-mode optical fiber (mainstream G.657A2 bend-resistant fiber, 1/2/4 cores)

- Two parallel **0.4mm phosphated steel wires** on the left and right (fiber protection for tensile and compressive strength)

- Integrated extruded black LSZH low-smoke halogen-free sheath, with pre-fabricated easy-tear stripping grooves on both sides

3. Overall Shape: Flat figure-8 shape, standard size approximately 2.0mm × 5.2mm, weight approximately 19kg/km

## III. Core Product Features

1. **Integrated Suspension Wire, Purely Self-Supporting Aerial Application** The top coarse steel wire bears the entire span tension, eliminating the need for additional steel strands for community poles and building-to-building overhead applications, resulting in low construction costs.

2. **Double Steel Wire Fiber Sheath, High Mechanical Strength**
Long-term tensile strength 800N, short-term tensile strength 2000N; resistant to wind and tensile stress, and heavy object compression, suitable for long-term outdoor use.

3. **Low Smoke Halogen-Free Flame Retardant LSZH Sheath**
Low smoke during combustion, no toxic halogen gases, meets fire safety regulations even when entering buildings or building shafts outdoors; black sheath is UV resistant and weather resistant from -60℃ to +70℃.

4. **G.657A2 Micro-Bend Fiber**
Minimally bent, no attenuation; less prone to light loss when winding through corridors, corners, or entering buildings through conduits.

5. **Built-in Stripping Groove, Fast Installation**
Fiber can be removed by hand by tearing open the sheath; no professional stripping tools required; quick cold splicing/heat fusion.

6. **Lower Cost Due to Metal Structure**
Compared to the non-metallic GJYXFCH model, the steel wire reinforcement is cheaper and preferred for scenarios without strong electromagnetic interference.

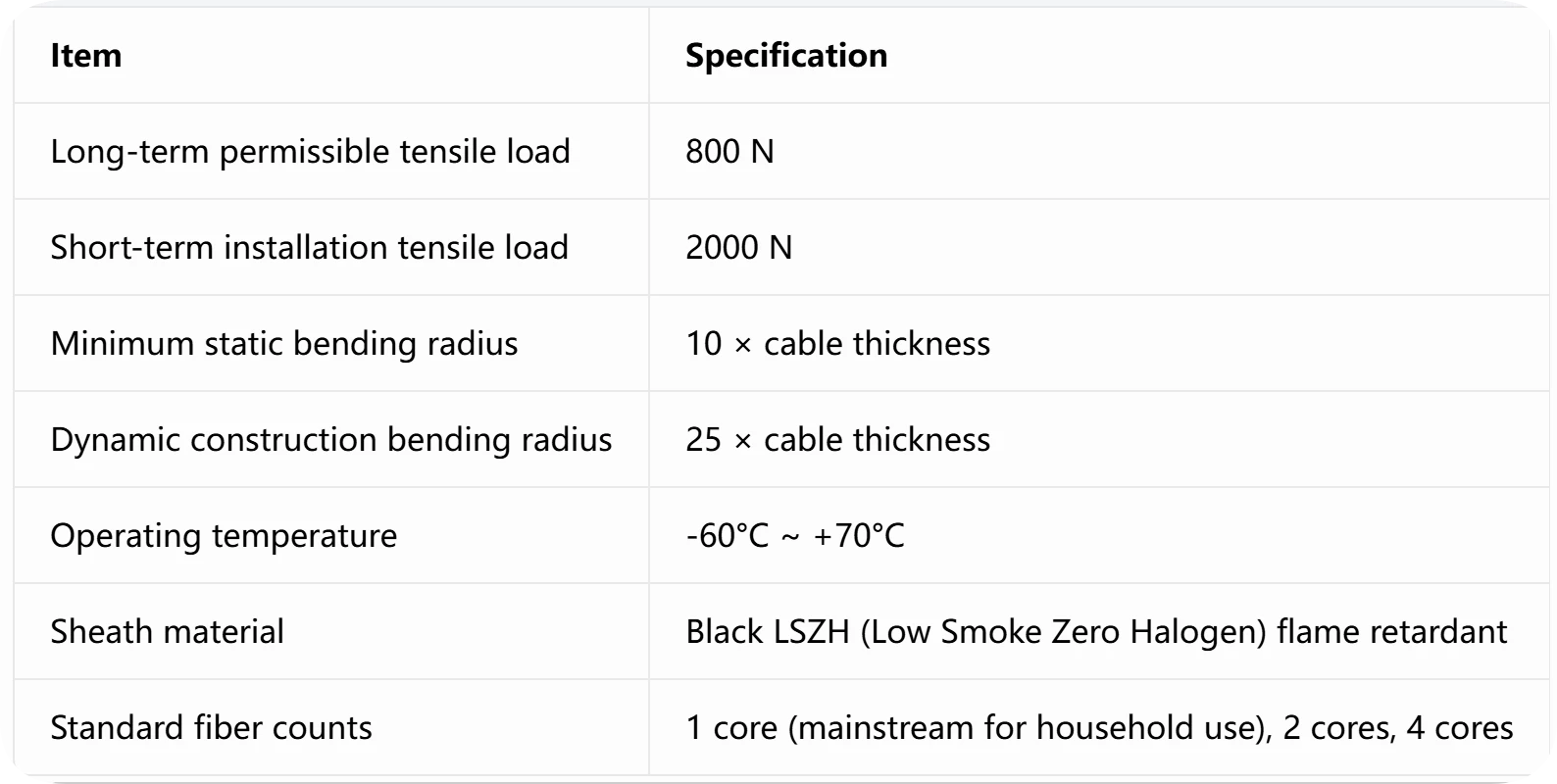

## IV. Standard Mechanical Parameters (1-Core Standard Model)

## V. Applicable Scenarios (FTTH Fiber to the Home Dedicated)

### 1. Outdoor Aerial (Core Application)

- Community Optical Distribution Box → Building Exterior Wall Aerial, Inter-Building Cabling

- Rural and Township Pole-to-Home, Short-Span Self-Supported Laying

### 2. Outdoor to Indoor Integrated Cabling

Outdoor aerial cabling directly through building shafts and low-voltage cable shafts to the home; LSZH sheath meets indoor fire protection requirements.

### 3. Supporting Scenarios

Cyber ​​broadband access for operators, monitoring point introduction, and end-point introduction for government and enterprise private lines.

### Not Applicable Scenarios

1. Near substations, high-voltage cables, and mountainous areas prone to lightning strikes (steel wire is prone to lightning attraction; use **GJYXFCH Non-Metallic Model** instead)

2. Long-Distance Aerial Backbone (For home introduction only; backbone uses ADSS/aerial duct optical cable)

## VI. Comparison of Easily Confusing Models

### 1. GJYXCH vs GJYXFCH

- GJYXCH: **Steel wire reinforced**, inexpensive, high tensile strength; Disadvantage: Conductive, prohibited in lightning/high-voltage areas

- GJYXFCH: **FRP non-metallic reinforced**, lightning protection without electromagnetic interference; more expensive

### 2. GJYXCH vs GJXH (Ordinary Indoor Drop Cable)

- GJYXCH: With top suspension wire, can be used for outdoor overhead wiring, LSZH sheath

- GJXH: Without suspension wire, only for indoor conduit/wall wiring, cannot be used for outdoor overhead wiring

### 3. GJYXCH vs GJYXDCH

- GJYXCH: Single independent optical fiber

- GJYXDCH: Fiber optic cable with ribbon, used in multi-core centralized splicing scenarios

## VII. Model Labeling Example

`GJYXCH-1B6a2`

- GJYXCH: Metal Suspension Wire Self-Supporting Low-Smoke Halogen-Free Butterfly-Shaped Drop Cable

- 1:1 Core Fiber Optic Cable

- B6a2: G.657A2 Bending-Resistant Single-Mode Fiber Optic Cable (Standard Fiber for Home Delivery)

## VIII. Construction Precautions

1. The overhead span should generally be ≤80 meters. In windy areas, shorten the span and use dedicated optical cable hooks to secure the suspension wire;

2. The tensile force must not exceed 2000N for short periods to avoid damaging the optical fiber due to steel wire tension;

3. In scenarios with frequent lightning strikes or high-voltage lines on the same pole, replace with non-metallic GJYXFCH;

4. For installation in building shafts, H-type LSZH sheathed cables must be used; ordinary PVC drop cables are prohibited.
