Flat Drop Fiber Optic Cable
video

Flat Drop Fiber Optic Cable

FTTH non metal strengthen flat drop fiber optic cable GJXFH

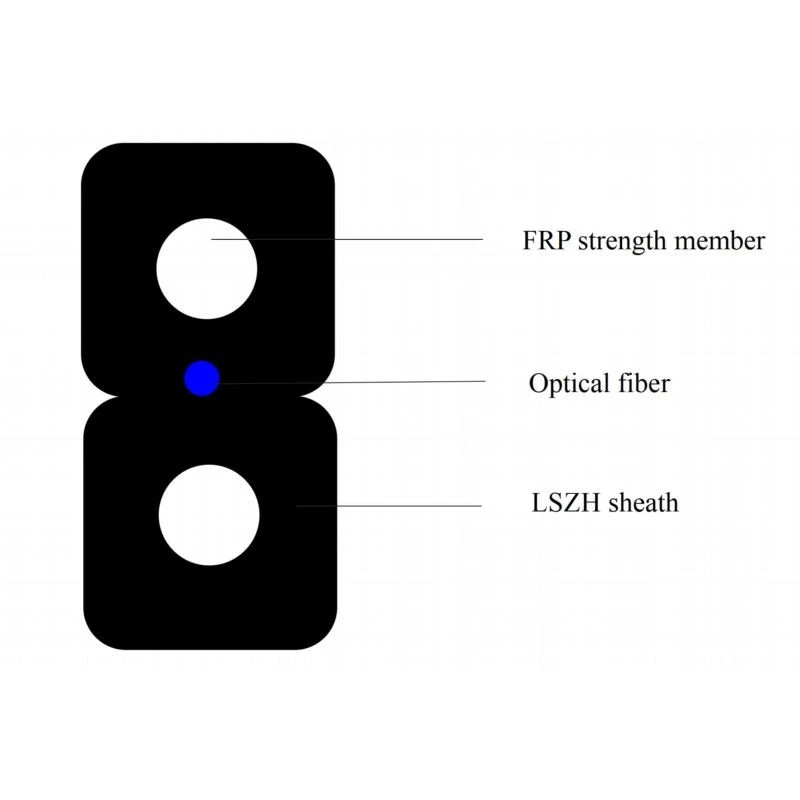

FTTH FRP drop cable called GJXFH , the optical fiber unit is positioned in the center. Two parallel Fiber Reinforced FRP are placed at the two sides.Then the cable is completed with a black or color LSZH sheath.
Send Inquiry

Description

Technical Parameters

our company




Core advantages:
01.

Over thirty years of manufacturing experience have transformed into stability.

Hangzhou Linan Aoke Trade Co.,Ltd.has been engaged in cable manufacturing since 1992 and entered the optical cable field in 2001, making it one of the earliest optical cable manufacturers in Zhejiang Province. The competitiveness of optical cable products depends not only on equipment but also on long-term accumulated expertise in areas such as process formulation, sheath molding control, and fiber loss management. Over thirty years of continuous production have enabled the company to develop mature operational standards in details such as the clarity of cable printing, consistency of outer diameter, and control of attenuation indicators. Furthermore, having weathered multiple capacity cycles and price fluctuations in the optical fiber and cable industry, the company possesses strong operational resilience and the ability to ensure continuous delivery.

02.

A production-sales direct connection organizational structure ensures full control over order delivery.

The company's foreign trade department and production workshop are located in the same factory building, with sales staff offices situated upstairs, achieving physical integration of the entire "order placement-production scheduling-production-shipping" process. Sales staff no longer need to travel across factory areas or go through multiple layers of internal processes; they can go down to the workshop at any time to check production progress, observe equipment operation, and confirm the warehousing of semi-finished and finished products. This allows them to promptly identify and resolve issues affecting delivery dates, such as production scheduling conflicts, material delivery delays, and process abnormalities.

Furthermore, the company has established a monthly production and sales meeting mechanism: foreign trade staff and the production department hold monthly meetings to jointly review order execution, forecast the following month's demand, and provide feedback on new customer requirements regarding specifications, packaging, and delivery. This ensures that production-side issues and market-side information are simultaneously assigned to specific individuals and timelines.

.jpg

Products Description

2 Core Ftth Drop Cable

GJXFH All-Dielectric Butterfly Drop Cable for FTTH

GJXFH is an all-dielectric butterfly drop cable designed for FTTH indoor wiring. A tight-buffered optical fiber sits at the center, flanked by two parallel FRP (glass fiber reinforced plastic) strength members, all enclosed in an LSZH (Low Smoke Zero Halogen) sheath that emits minimal smoke and no halogen gas under fire - meeting building fire-safety and environmental requirements.

With no metallic parts, the cable is fully immune to lightning induction and electromagnetic interference, allowing safe installation near substations, base stations and power tray routes. The FRP members are lightweight and highly flexible, supporting tight bends without fiber damage; the sheath strips easily by hand for fast splicing and connectorization.

Typical applications: residential and building FTTH drop segments, from corridor distribution boxes to subscriber outlets, and in-building wiring for data centers and telecom rooms, pairing with outdoor self-supporting GJYXCH for a complete drop solution. Operating temperature: -40℃ to +60℃; 1/2/4 fibers available; compliant with IEC 60794. OEM and bulk supply welcome.

GJXFY vs. GJXY Drop Cable


FRP or Steel Strength Member?

Both are butterfly drop cables with identical construction - a central tight-buffered fiber and LSZH sheath - differing only in the two parallel strength members.

GJXFY



GJXFY (twin FRP rods)​ is 100% all-dielectric: immune to lightning induction and electromagnetic interference, making it the safe choice for data centers, base stations, substations and lightning-prone regions. It is lighter and more flexible for neat bending. Trade-off: slightly lower tensile strength - not recommended for long self-supporting spans.

Flat Drop Fiber Optic Cable

GJXY



GJXY (twin steel wires)​ offers higher tensile and crush resistance at a lower cost, the mainstream choice for indoor drop segments and short aerial runs. Trade-off: metallic members carry induction risk near power lines or in thunderstorm areas, and it is slightly less flexible.

Flat Drop Fiber Cable

Quick guide: choose GJXY for residential FTTH drops (more economical); choose GJXFY for telecom rooms, BTS sites and high-EMI/lightning environments (safer). Both pair with outdoor self-supporting GJYXCH for a complete drop solution.





own brand





FTTH drop cable-Ink printing
FTTH drop cable-Ink printing
Flat cable-Plasma pringting
Flat cable-Plasma pringting
Outdoor cable GYTC8S-Iron printing
Outdoor cable GYTC8S-Iron printing
Jumper cable- SC/UPC-SC/APC
Jumper cable- SC/UPC-SC/APC
GYTC8S 24 core -wooden drum
GYTC8S 24 core -wooden drum
FTTH cable-1km drum
FTTH cable-1km drum
FTTH cable-carton packing
FTTH cable-carton packing
Patch cords-Pallet package
Patch cords-Pallet package




Tips

How To Cooperate With Us?

Kexin Cable,since establishing its international sales department in 2008, the company's export markets cover dozens of countries and regions in Eastern Europe, South America, Southeast Asia, Africa, and the Middle East. Domestically, it participates in network construction procurement by telecom operators and broadcasting systems through open bidding. Against the backdrop of persistently low prices for domestic fiber optic cables in centralized procurement, overseas small and medium-sized customers and engineering subcontractors are sensitive to cost-effectiveness and demand high delivery flexibility, which aligns with the company's product positioning and certification configuration, effectively hedging against domestic price fluctuations.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China 311300

WhatsApp

+86-18968035161

E-mail

faye@kexincable.com

.png



Hot Tags: flat drop fiber optic cable, China flat drop fiber optic cable manufacturers, suppliers, factory, 2 Core Drop Cable, 2 Core Ftth Drop Cable, Drop Fibre Cable, ftth drop cable and patch cords, Outdoor Drop Cable, Sc Apc To Sc Upc Patch Cable

Technical Characteristics





No. of cable

1/2/4

Fiber Model

G.657A1,A2

Strength Member

Material

FRP

Diameter(±0.03)mm

0.5

NO.

2

Outer Sheath

Material

LSZH

Colour

Black / white

Cable Diameter(±0.2)mm

2.0×3.0

Cable Wetght(±2)kg/km

9

Attenuation

1310nm

dB/km

0.40

1550nm

0.30

Allowable Tensile Strength

Short Term

N

200

Long Term

100

Allowable Crush Resistance

Short Term

N/100mm

2200

Long Term

1000

Min. bending radius

Without Tension

15.0×Cable-φ

Under Maximum Tension

30.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+60

Operation

-40~+60



*All above the cable size can be customized.
