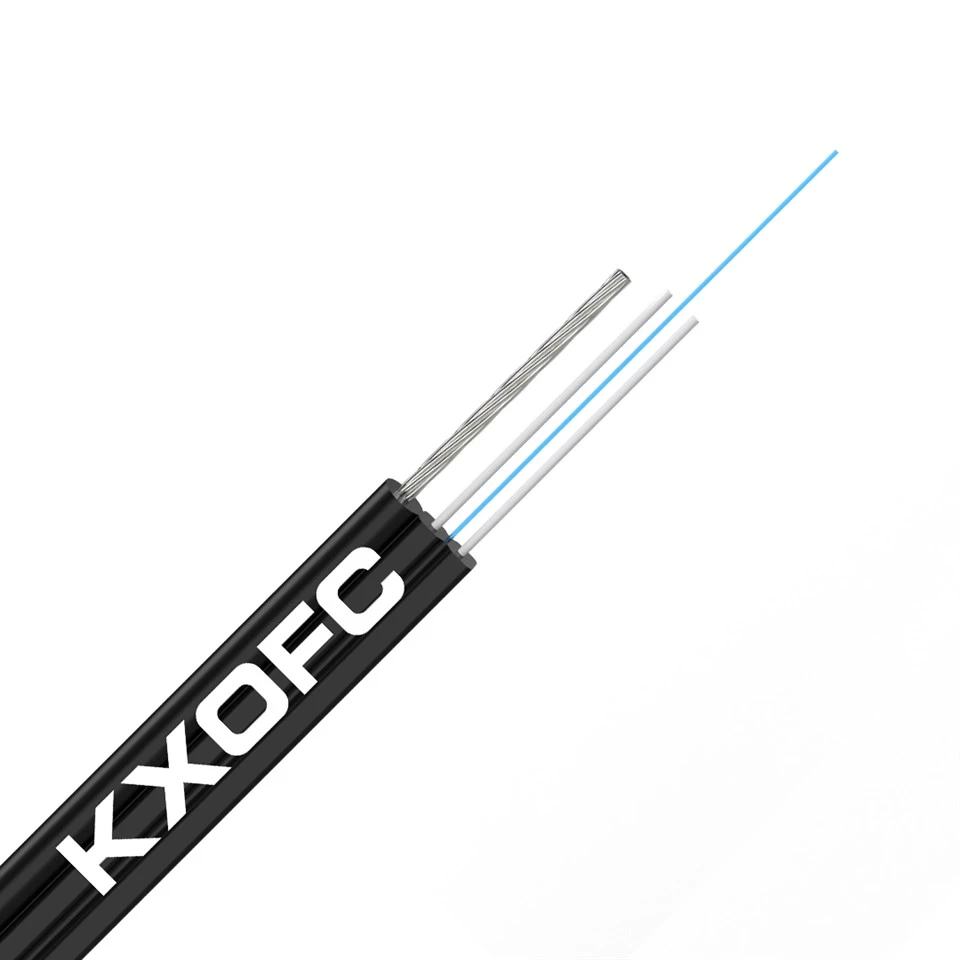

2 Core Drop Cable

FTTH stranded steels self-supporting non metal strengthen 2 core drop cable GJYXFCH
Fiber Type: G652D, G657A1,G.657A2
Fiber counts:1,2,4 core
Messenger: 0.8, 1.0, 1.2mm single steel/7 steel wires Optional
Strength Member: FRP
Jacket: PVC/LSZH Color: Black /Optional
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and sale optical fiber cable to more than 30 countries and have 18 years` rich experience to export cables .





Products Description



Cable cross section



The optical ber unit is positioned in the centre, Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.



2 Core Drop Cable



Fiber Optic Cable 2 Core



Jumper Cable



product-555-555

1 core

product-596-596

2 core

product-625-625

3 core

Features





  • FTTH stranded steels self-supporting non metal strengthen drop cable, Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
  • Two parallel steel strength members ensure good performance of crush resistance to protect the fiber;
  • Standard steel wires as the additional strength member ensures good performance of tensile strength.



Fiber color code





product-610-127



our factory materials


Our factory materials

More than 10 years Long-term cooperation brand materials suppliers.

.jpg
01

optic fiber

Flexible,bend-resistant, and hard to break.

Cold splicing:less fiber breakage, high success rate

02

Strengthened steel wire

Galvanized Steel Wire Rope 7*0.33mm / 1*1.0mm ect.



Smooth luster, corrosion-resistant and rust-proof

product-442-442
product-549-549
03

FRP Fiberglass rod

Reinforced Plastic Products,

Lightweight and strong,Good corrosion resistance,Good electrical performance, Good thermal performance,Good thermal performance

04

High-quality LSZH / PVC outer jacket material

Smooth surface, flame-retardant,anti-corrosion,long service life










Cable Production process










cable print





FTTH drop cable-Ink printing

Flat cable-Plasma pringting

Outdoor cable GYTC8S-Iron printing

Jumper cable- SC/UPC-SC/APC

GYTC8S 24 core -wooden drum

FTTH cable-1km drum

FTTH cable-carton packing

Patch cords-Pallet package






Pack and ship


Patch cords in Pallet delivery

FTTH cable in cartons packing

Flat cable in plywood drum package

4b86f9a7e7a1b777db558f0849be4352

eedd5e3aac661809b4fc7f60d27f57d8



Certificates







Classification of Fiber Patch Cords

Classification of Fiber Patch Cords

Fiber patch cords are mainly divided into single-mode fiber patch cords and multimode fiber patch cords by transmission medium.

Single-mode Fiber (SMF): Typically colored yellow, with blue connectors and protective boots. It supports long-distance transmission.

Multimode Fiber (MMF): Usually orange or grey, paired with beige or black connectors and protective boots. It is designed for short-distance transmission.

Classified by connector structure, fiber patch cords come in various types including FC, SC, ST, LC, MTRJ, MPO, MU, SMA, FDDI, E2000, DIN4 and D4. The most common combinations include FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST, etc.

1.FC Fiber Patch Cord: Reinforced with a metal sleeve and secured by a screw lock. It is widely used on ODF (Optical Distribution Frame) sides.

2.SC Fiber Patch Cord: A rectangular connector for GBIC optical modules. It adopts a push-pull latching design with no need for rotation, and is commonly applied to routers and switches.

3.ST Fiber Patch Cord: Features a round housing and screw lock structure. It is frequently used in optical distribution frames, and is the standard connector for 10Base-F connections.

4.LC Fiber Patch Cord: Matched with SFP transceivers. It applies user-friendly modular RJ-style latching mechanism and is widely used on routers.



Hot Tags: 2 core drop cable, China 2 core drop cable manufacturers, suppliers, factory, 2 Core Ftth Drop Cable, Flat Drop Fiber Cable, Flat Drop Fiber Optic Cable, Outdoor Drop Cable, Outdoor Ftth Drop Cable, Sc Apc To Sc Upc Patch Cable

Technical Characteristics





No. of cable

1/2/4

Fiber Model

G.657A1

Strength Member

Material

FRP

Diameter(±0.03)mm

0.5

NO.

2

Support member

Material

Steel Wires

Diameter(±0.03)mm

7*0.33

Outer Sheath

Material

LSZH

Colour

Black / white

Cable Diameter(±0.2)mm

2.0×3.0

Cable Weight(±2)kg/km

19

Attenuation

1310nm

dB/km

0.40

1550nm

0.30

Allowable Tensile Strength

Short Term

N

200

Long Term

100

Allowable Crush Resistance

Short Term

N/100mm

2200

Long Term

1000

Min. bending radius

Without Tension

15.0×Cable-φ

Under Maximum Tension

30.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+60

Operation

-40~+60



*All above the cable size can be customized.
