Light Fiber Cable

Light Fiber Cable

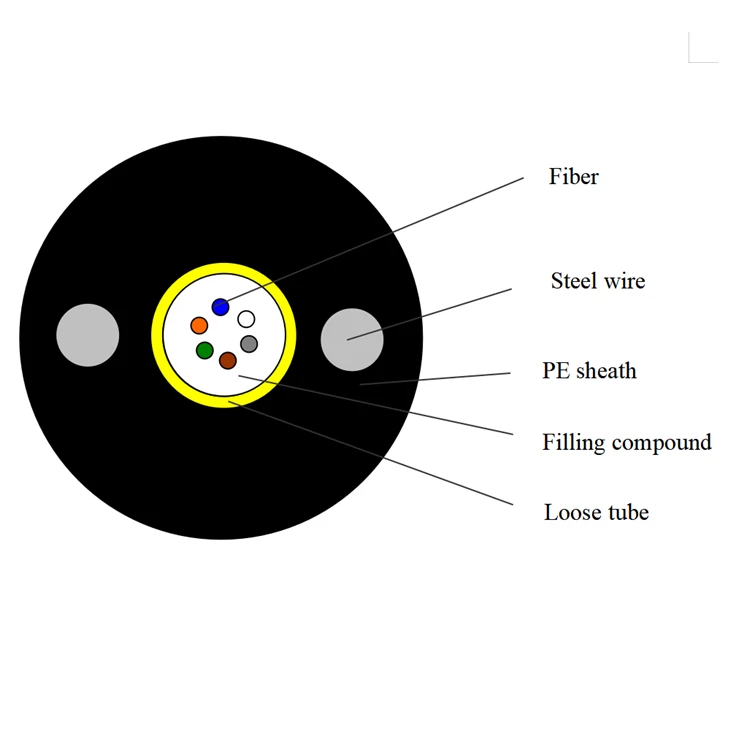

GYXY fiber optic cable, 250μm, are positioned in a loose tube made of a high modulus plastic. and the tubes are filled with a water-resistant filling compound. Meanwhile put the water-blocking material on the outside of loose tube that is ensure the vertical water blocking effect of cable. Then two parallel steel wires are placed at the two sides. At last all of these put in a polyethylene (PE) sheath.
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and sale optical fiber cable to more than 30 countries and have 18 years` rich experience to export cables .



Features


  • *Good mechanical and temperature performance.

    *Two parallel steel wires ensure tensile strength.

    *High strength loose tube that is hydrolysis resistant.

    *Special tube filling compound ensure a critical protection of fiber.

    *Small diameter, light weight and friendly installation.



Environmental Characteristics




• Transport/storage temperature: -40℃ to +60℃



Delivery Length




• Standard reel length: 2km/drum or 3km/drum; other lengths are also available.



Standard order payment





  • Payment term: T/T, L/C, D/P...
  • For small orders: credit cards, Western Union money transfer and PayPal are all accepted.
  • For other complex payment methods, further discussion is possible.



own brand





FTTH drop cable-Ink printing
FTTH drop cable-Ink printing
Flat cable-Plasma pringting
Flat cable-Plasma pringting
Outdoor cable GYTC8S-Iron printing
Outdoor cable GYTC8S-Iron printing
Jumper cable- SC/UPC-SC/APC
Jumper cable- SC/UPC-SC/APC
GYTC8S 24 core -wooden drum
GYTC8S 24 core -wooden drum
FTTH cable-1km drum
FTTH cable-1km drum
FTTH cable-carton packing
FTTH cable-carton packing
Patch cords-Pallet package
Patch cords-Pallet package





Pack and ship


Patch cords in Pallet delivery
Patch cords in Pallet delivery
FTTH cable in cartons packing
FTTH cable in cartons packing
Flat cable in plywood drum package
Flat cable in plywood drum package
4b86f9a7e7a1b777db558f0849be4352
Composite drum full loaded into contianer
eedd5e3aac661809b4fc7f60d27f57d8
Solid wooden drum loading photo





Tips

Who are the main competitors of domestic Chinese optical fiber manufacturers in the high-end market?



Corning (USA) A long-standing industry giant with world-leading OVD full-synthesis preform technology. It has deep expertise in ultra-low-loss fibers, hollow-core fibers and high-end data center specialty fibers, with strong patent barriers and brand influence. It is deeply partnered with major North American cloud providers including Google, Meta and Microsoft, dominating the North American high-end AI computing fiber market. Core products: G.654.E ultra-low-loss long-haul fibers, high-speed data center interconnect fibers, next-generation hollow-core fibers.



Fujikura (Japan) A leading supplier of high-density ribbon cables, ultra-low-loss specialty fibers and multi-core fibers for AI data centers. It has strong precision fiber drawing technology, supplying hyperscale AI computing clusters in North America, and excels in high-density cabling for AI computing infrastructure. Core products: high-density ribbon optical cables, ultra-low-loss long-distance fibers, multi-core specialty fibers.



Sumitomo Electric (Japan) A major Japanese supplier of high-core-count cables, ultra-low-loss trunk fibers and submarine cables, with strong capabilities in long-haul transmission and undersea communication systems. It has a solid footprint in Asia-Pacific, North America and European backbone network markets. Core products: long-haul trunk fibers, high-end submarine cables, large-core-count data center cables.



Prysmian (Italy) A global integrated cable manufacturer, dominant in European backbone networks, data center cabling and high-end submarine cables. It has established local certification systems and mature supply chains across Europe and North America, with strong channel advantages in European high-end infrastructure projects. Core products: high-end undersea cables, European backbone and data center structured cabling systems.



Other key competitors

Furukawa Electric (OFS, Japan): Focuses on specialty fibers and photonic crystal hollow-core fibers for telecom and data center applications.

Regional European manufacturers (e.g., R&M): Specialize in high-end structured cabling and data center wiring, with advantages in local European certification and distribution channels.



Overall, the four primary global competitors are Corning, Fujikura, Sumitomo Electric and Prysmian, competing mainly in North American AI data center markets, European backbone networks, undersea cable projects and cutting-edge advanced specialty fiber segments.



Hot Tags: light fiber cable, China light fiber cable manufacturers, suppliers, factory

Technical Characteristics





Fiber Count 2~24
Loose Diameters 2.0 ~2.6mm
Loose Material PBT (Polybutylene Terephthalate)
Strength Member Material Steel wire
Strength Member size 2 x 1.0 mm
Outer Jacket Material PE
Nominal Outer Dimensions 6.0~8.0 mm (±0.3)

Tension Strength

(Long-Term /Short-Term)

600N/1000N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic) 10 x OD / 20 x OD



*All above the cable size can be customized.
