Self Supporting Aerial Fiber Cable

Fiber count:12~288core
Loose tube:2.1mm
Strength member:2.0m Central steel wire
Sheath:9.0mm PE
Messenger:7*1.0mm stranded steel wire
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .



product-556-482

Aerial self-supporting optical fiber cable GYTC8Y


GYTC8Y self-supporting aerial fiber cable fiber in the loose tubes which are filled with waterproof compound. The non-armored design enhances flexibility,while the figure-8 structure is suitable for overhead installation.It can efficiently connect different communication nodes and provide support for trunk and regional communication network.



The model designation "GYTC8Y" essentially reflects the cable's structural characteristics

GY: Outdoor optical fiber cable for telecommunications
T: Filled-core construction (the cable core is fully filled with a water-blocking compound)
C: Self-supporting (suspension-wire type) construction
8: Figure-8 configuration (the cable core and a steel-strand suspension wire are integrated within a single sheath)
Y: Polyethylene (PE) sheath

product-356-332
product-578-314

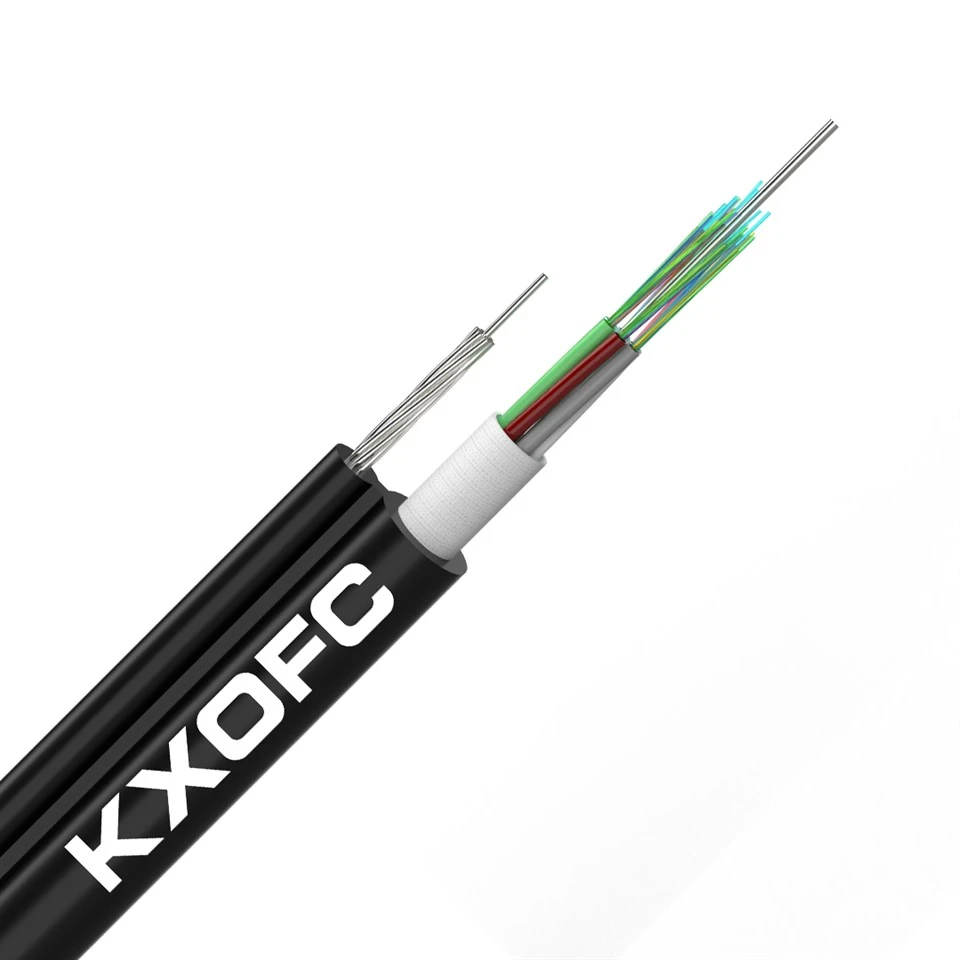

GYTC8Y Self Supporting Aerial Fiber Cable

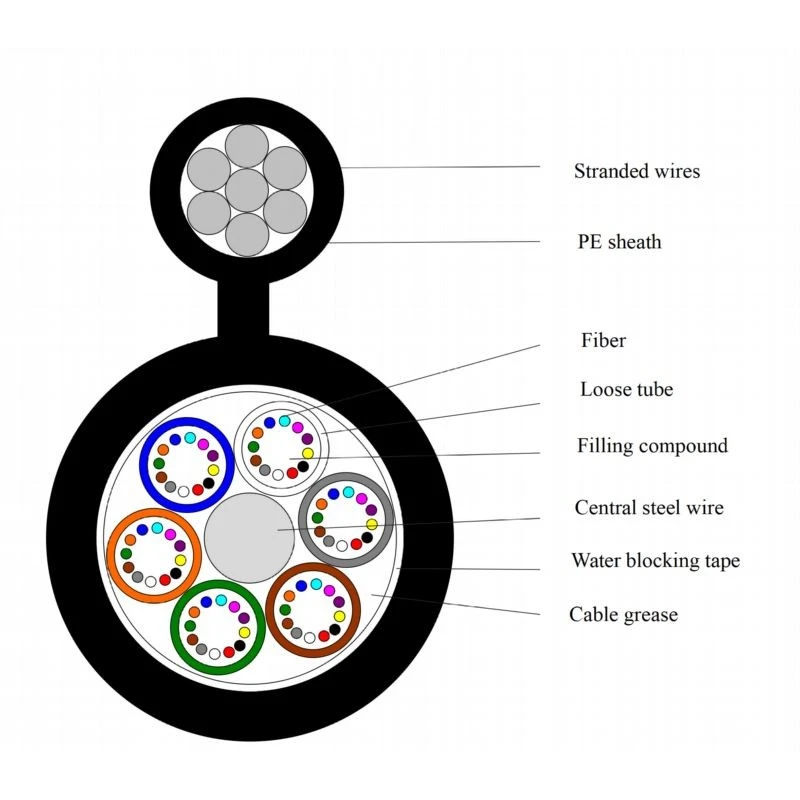

In terms of its specific structure, optical fibers are housed within PBT loose tubes filled with a thixotropic compound. A phosphated steel wire serves as the central strength member, around which the loose tubes are stranded using an SZ-stranding technique. The interstices within the cable core are filled with a water-blocking compound, and the entire assembly is enclosed in an extruded polyethylene outer sheath. Steel strande wires-also covered by an extruded polyethylene sheath-serves as a suspension wire and is connected to the cable core via a web, resulting in a figure-eight cross-sectional profile.

Key Performance and Parameters

The key performance specifications for the GYTC8Y optical cable are as follows

Standards Compliance‌

‌ Complies with the YD/T 1155-2017 standard for "Figure-8" self-supporting outdoor optical cables for telecommunications.

01

‌Operating Temperature‌

-40°C to +60°C

02

‌Bending Radius‌

10 times the cable diameter (static); 20 times the cable diameter (dynamic)

03

‌Water-Blocking Performance‌

Features a full-section water-blocking design; the finished cable meets the requirement of no water penetration when subjected to a 1-meter water column over a 1-meter length for 8 hours.

04

‌Service Life‌

Designed for a lifespan of over 30 years.

05





Application Scenarios and Advantages
01.

Installation Method

Designed for self-supporting aerial installation; it can be suspended directly between utility poles without the need for additional suspension wires or hooks.

02.

Applicable Span

Suitable for aerial environments with spans of up to 200 meters (some versions are rated for spans of up to 100 meters).

03.

Tensile Strength

The integrated steel-strand suspension wire provides exceptionally high tensile strength, along with excellent mechanical and temperature-related performance.

04.

Low Wind Load

The "figure-8" cross-sectional design minimizes wind load, making it particularly well-suited for complex terrain such as mountainous or hilly regions.

product-738-338

Scope of Application



Used in outdoor communication environments-including core networks, metropolitan area networks (MANs), access networks, and Fiber-to-the-Home (FTTH) deployments-as well as for long-haul and inter-office communications.











How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: self supporting aerial fiber cable, China self supporting aerial fiber cable manufacturers, suppliers, factory, Fiber Optic Overhead Cable, fig 8 self support optical fiber cable, Figure 8 Fiber Optic Cable, Outdoor Aerial Fiber Optic Cable, Overhead Fiber Optic Cable, Self Supporting Aerial Fiber Cable

Technical Characteristics





Fiber Count

4~96

Loose Diameters

2.2 mm

Loose Material

PBT ((Polybutylene Terephthalate))

Self Strength Messenger

Steel wire

Central Strength Member

Steel wire

Outer Jacket Material

HDPE

Messenger

7*1.2mm steel wires

Nominal Outer Dimension

9.0mm*14mm (±0.3)

Tension Strength

(Long-Term /Short-Term)

3000N/7000N

Crush Resistance

(Long-Term /Short-Term)

300 N/1000mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
