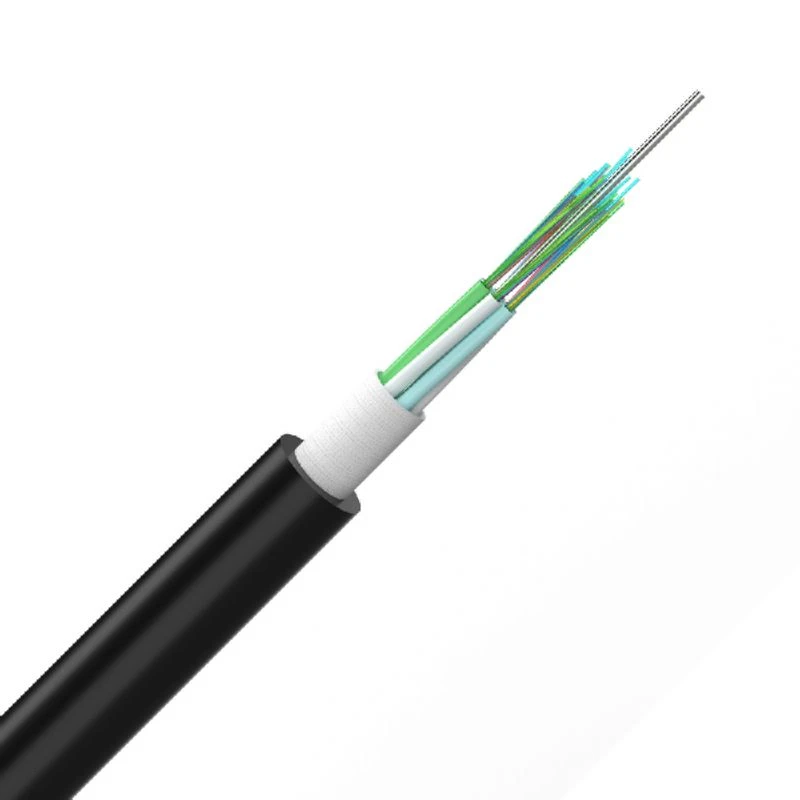

Fiber Cable 24 Core
video

Fiber Cable 24 Core

Fiber count:12~288core
Loose tube:2.1mm
Strength member:2.1mm steel wire
Sheath:9.0mm PE
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .





product-524-512

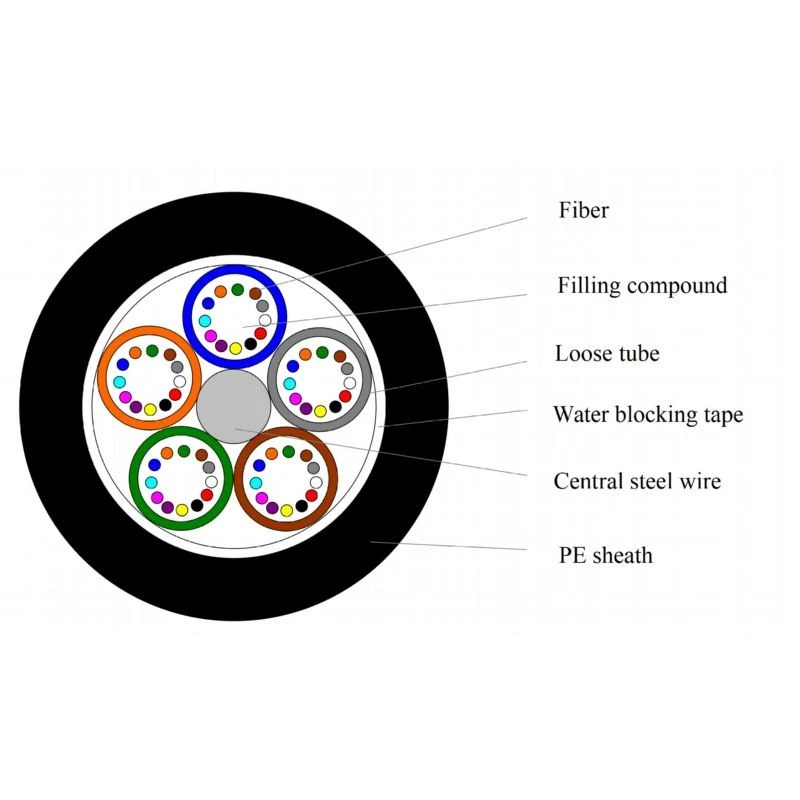

The structure of the GYTY optical cable



 outdoor communication cable featuring a metallic strength member, stranded loose tubes, a water-blocking filling compound, and a polyethylene (PE) sheath-consists of single-mode or multi-mode optical fibers housed within loose tubes made of a high-modulus plastic and filled with a water-blocking compound. At the center of the cable core lies a metallic strength member; for certain fiber counts, this metallic strength member is further covered with an extruded layer of polyethylene (PE). The loose tubes (along with any necessary filler rods) are stranded around this central strength member to form a compact, circular cable core. The interstices within the cable core are filled with a water-blocking compound, and the entire assembly is enclosed in a polyethylene (PE) sheath.



Stranded multi-tube non-armored fiber cable GYTY


Fiber cable 24 core optical fibers are housed in loose tubes that made of high-modulus plastic and full filled with special waterproof compound. The tubes (and fillers) are stranded around a central strength member steel wire and surrounded with water blocking tape to form a cable core. An extremely outer PE sheath is extruded outside the core.

product-648-492





GYTY Optical Cable – Product Features
01.



Precise control of the optical fiber excess length ensures excellent tensile performance and temperature characteristics.

02.



A full-section water-blocking structure guarantees superior water-blocking performance.

03.



The PBT loose tube material offers excellent hydrolysis resistance; the tubes are filled with a special compound to protect the optical fibers.

The loose tubes and the entire cable core are filled with a special water-blocking compound, providing the cable with outstanding water-blocking capabilities.

04.



The loose tubes and the entire cable core are filled with a special water-blocking compound, providing the cable with outstanding water-blocking capabilities.





GYTY Optical Cable – Product Features
05.



The special compound inside the loose tubes provides critical protection for the optical fibers.

06.



Strict control over manufacturing processes and raw materials ensures long-term, stable operation of the optical cable.

07.



The smooth outer sheath results in a lower coefficient of friction during cable installation.

08.



The polyethylene sheath ensures the cable has superior resistance to ultraviolet (UV) radiation.







How To Cooperate With Us?

Welcome your inquiries regarding fiber optic cables. We are glad to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: fiber cable 24 core, China fiber cable 24 core manufacturers, suppliers, factory, Duct Fiber Cable, duct optical fiber cable, Fiber Cable 24 Core, Kabel Duct Fiber Optic

Technical Characteristics





Fiber Count 12~288 core
Loose Diameters 2.1mm
Loose Material PBT(Polybutylene Terephthalate)
Central Strength Member Steel wire
Protect Water blocking tape
Armored /
Outer Jacket Material PE
Nominal Outer Dimensions 9.0~25.0 mm (±0.3)
Tension Strength (Short-Term / Long-Term) 600N/1500N
Crush Resistance (Short-Term / Long-Term)

1,000 N/100mm

300 N/100mm

Minimum Bend Radius (Static / Dynamic) 10 x OD / 20 x OD



*All above the cable size can be customized.
