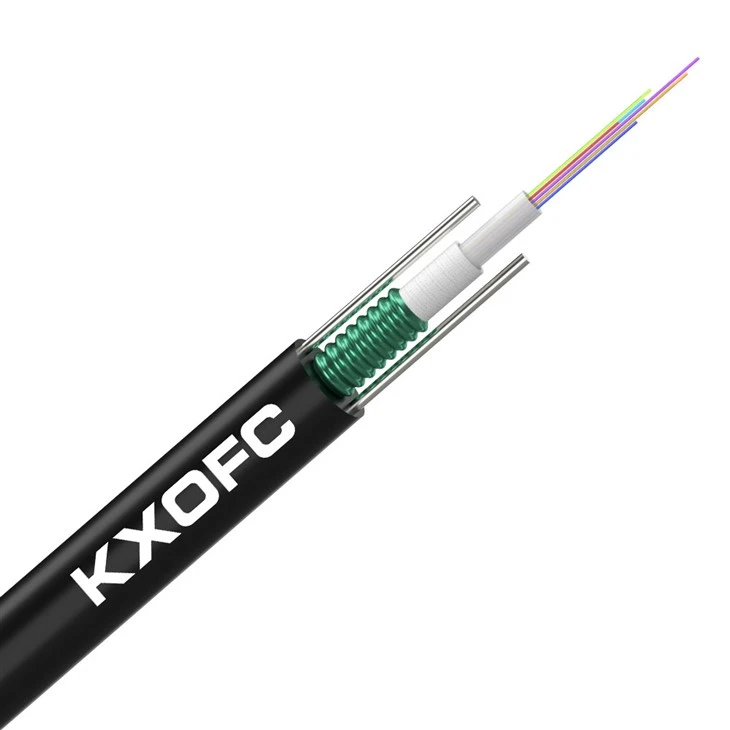

GYXTW Optical Fiber Cable 12 core
Central Loose Tube: 2.1 mm
Strength Members: 2 × 1.0 mm Steel wire
Armor Material: Corrugated steel tape
Outer Diameter: 7.0–8.0 mm
Tensile Strength: 600 N / 1500 N
Crush Resistance: 300 / 1000 N/100 mm
Description
Technical Parameters
This classic-style armored fiber optic cable has a metallic uni-tube design and comes in fiber configurations ranging from two to twenty-four. Optical fibers, a PBT loose tube, two steel wire strength members, corrugated steel tape, and a PE outer jacket make up the cable.
Depending on fiber count and cable arrangement, the typical cable's nominal outside diameter ranges from 7.0 to 8.0 mm. 600 N long-term tensile strength, 1500 N short-term tensile strength, 300 N/100 mm long-term crush resistance, and 1000 N/100 mm short-term crush resistance are among the mechanical parameters.
Depending on the needs of the project, specifications can be made for cable fiber count, outside diameter, cable printing, reel length, and packaging.

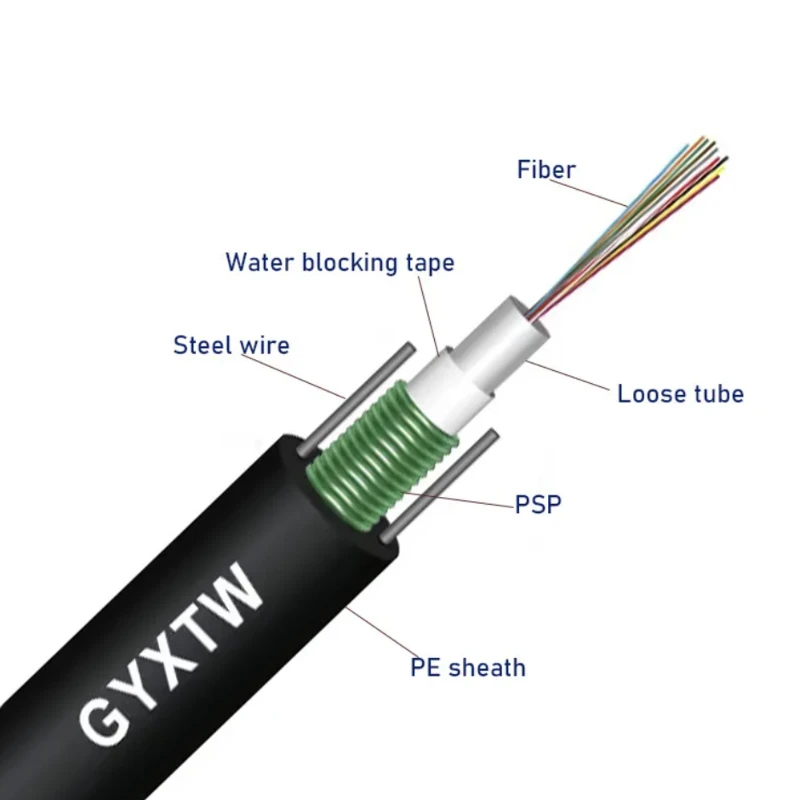

Cable Construction
Fiber Optics
The PBT loose tube contains the G552D or Muti-mode optical fibers. Depending on the necessary network design, the number of fibers might range from 2 to 24.
Loose Tube PBT
The optical fibers are encased in a compound-filled PBT loose tube. The tube allows for fiber movement brought on by temperature variations and offers mechanical protection for the fibers.
Members of Steel Wire Strength
Along the cable core are two steel wire strength elements. Tensile reinforcement is provided by steel wire.
Steel Corrugated Tape
As extra tensile strength, double-sided plastic-coated corrugated steel tape is wrapped around the cable core. Without adding conductive metal parts to the cable construction, the material offers mechanical support.
Outer Jacket for PE
The cable's outer protective covering is formed by the PE outer jacket. When PE jacketing is used for outdoor cable routing, the standard construction is appropriate.
Key Advantages
The most Classic armored fiber optic cable
The most cost-effective optical cable
Parallel steel wires and steel tape armor, combined, provide maximum protection for the optical fiber, maximizing performance and cost-effectiveness.
Rat-bite resistant model
Double-sided plastic coating corrugated steel tape armored has good pressure resistance and preventing rodent bites.
good tensile strength
Two parallel 1.0mm steel wires ensure the tensile strength reach 1500N under short-term conditions. And the steel wire dimensions can be adjusted according to your requirements.
High-Quality Customized Services
Cable diameter also can be customized,you can choose from 7.0mm to 8.0mm. We have efficient and precise processing and testing equipment.
order management
We strongly support best price and efficient scheduling of delivery time.
Responsibility
Every drum or roll with precise processing and 100% pass testing.We take full responsibility for after-sales service regarding any quality issues caused by us.
Cable Characteristics
Structural Analysis
Construction and Performance
tube that is filled with a unique grease to provide vital protection for the optical fiber.
Good pressure resistance and rodent bite prevention are features of steel tape armored.
The tensile strength is guarantyd by two parallel steel wires.
Lightweight, compact, and simple to lay.
Temperature range for transportation and storage: -40°C to +60°C
Length of cable
• Standard reel length: 2km/drum or 3km/drum;
Other lengths are also available.
- Printing on drum can be OEM.
- In addition, fumigated wooden drum and composite drum are also available as options.
Sample Information 1
If we have inventory and the quantity is small, it is free.
Sample Information 2
If we do not have inventory, the samples and shipping costs need to be paid by your company.
Sample Information 3
However, when we receive your initial order, we will refund the sample cost to you.
High-quality raw materials
We consistently use raw materials from reliable brands to ensure the quality of the finished products.
optical fiber
We do not manufacture optical fibers,we use fibers from renowned brands such as YOFC, ZTT, and HENGTONG.
Compound jelly
DAEWON brand filling compound-an optical cable filling material specified in the YD/T 839.2-2014 standard-which serves to protect the fiber and provide water and moisture resistance.
Steel tape
We use double-sided plastic-coated steel strip.It is an armored material featuring excellent corrosion resistance and high strength.
HDPE
We manufacture the sheathing using high-quality PE imported from the UAE.
Everything You Need to Know
Q: Does the smart board support Zoom and Microsoft Teams?
A: Yes, it is compatible with major video conferencing platforms including Zoom, Microsoft Teams, and Google Meet.
Q: Can it be used without a computer?
A: Yes, the system supports standalone operation with built-in Android or optional Windows OPS module.
Q: Is wireless screen sharing stable?
A: Yes, it supports stable wireless casting with low latency performance.
Q: Do you support OEM/ODM?
A: Yes, we provide customization services for global distributors and project partners.
Q: What sizes are available?
A: Multiple sizes are available from 55-inch to 86-inch depending on project requirements.
Q: Can you send me the product catalog?
A: Yes, I will send our full catalog and price list to you soon.
Including all cable models and specifications.
Q: How long does your warranty last?
A: 20 years cable service life, we provide 3 years long-term after sales support.
own brand
Pack and ship
Hot Tags: gyxtw optical fiber cable 12 core, China gyxtw optical fiber cable 12 core manufacturers, suppliers, factory, anti rodent biting fiber cable, Armored Fiber Optic Cable Single Mode, GYXTW Fiber Optic Cable, GYXTW Optical Fiber Cable 12 core, Outdoor Armored Fiber Optic Cable, Single Mode Armored Fiber Optic Cable
Technical Characteristics
| Fiber Count | 2~24 |
| Loose Diameters | 2.0~2.5mm |
| Loose Material | PBT (Polybutylene Terephthalate) |
| Strength Member Material | Steel wire |
| Strength Member size | 2x1.0mm steel wire |
| Armor | Corrugated steel tape |
| Outer Jacket Material | PE |
| Nominal Outer Dimensions | 8.0mm (±0.3) |
|
Tension Strength (Long-Term /Short-Term) |
600N/1500N |
|
Crush Resistance (Long-Term /Short-Term) |
300 N/100mm 1000 N/100mm |
| Minimum Bend Radius (Static / Dynamic) | 10 x OD / 20 x OD |
*All above the cable size can be customized.
