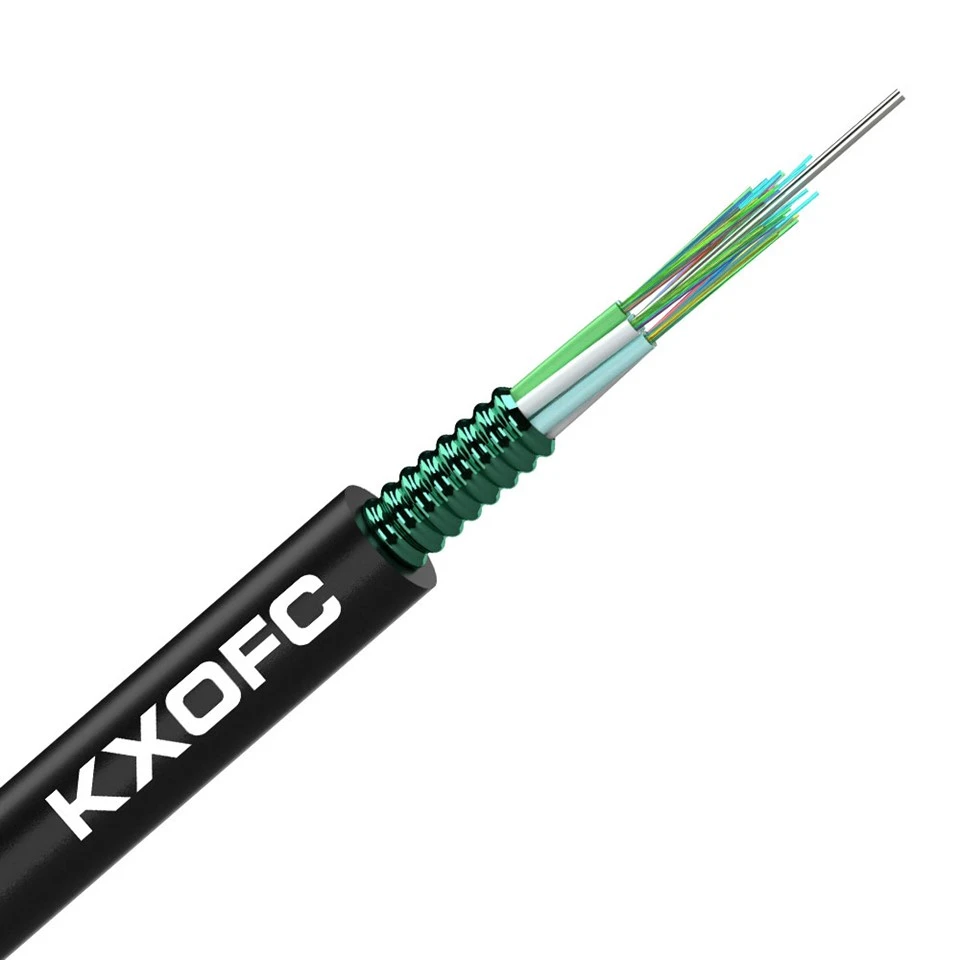

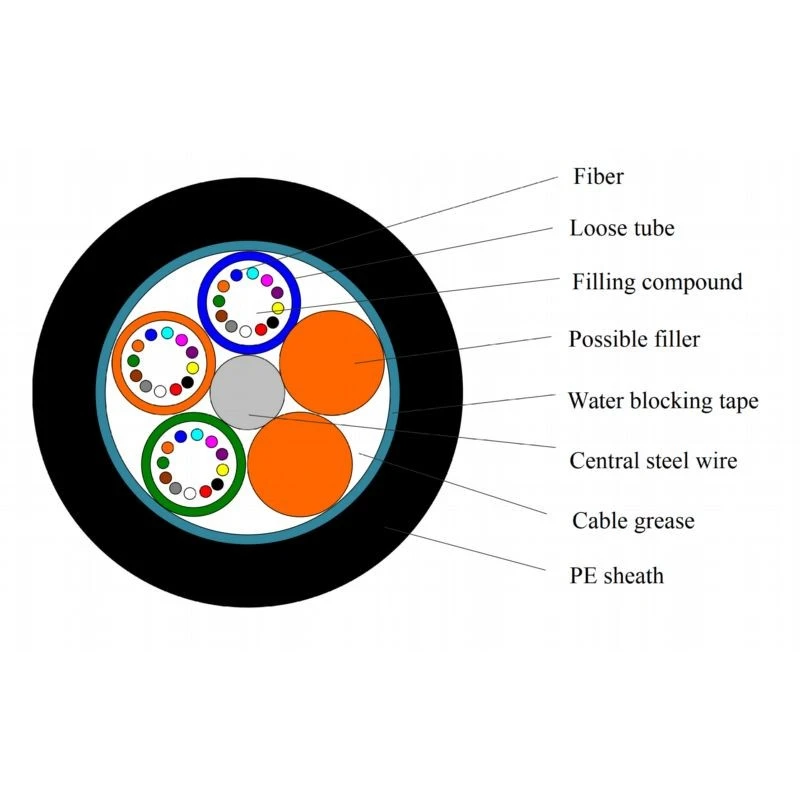

Armored Fiber Optic Cable Single Mode

own brand





FTTH drop cable-Ink printing

Flat cable-Plasma pringting

Outdoor cable GYTC8S-Iron printing

Jumper cable- SC/UPC-SC/APC

GYTC8S 24 core -wooden drum

FTTH cable-1km drum

FTTH cable-carton packing

Patch cords-Pallet package







Pack and ship



Patch cords in Pallet delivery

FTTH cable in cartons packing

Flat cable in plywood drum package

Composite drum full loaded into contianer

Solid wooden drum loading photo







**Key Points for Duct Cable Installation**

**1. Duct and Conduit Requirements**

The following preparations shall be made before installing the duct cable:

**Conduit Selection Principles:**

- When the design does not specify the conduit position, conduits shall be used layer by layer **from bottom to top and from both sides towards the middle**.

- The conduit positions occupied by the cable in adjacent duct sections shall be relatively consistent to avoid switching from one side of the duct bank to the other.

- The conduit position selected along the same route should not be changed.

**Conduit Cleaning:** Before installation, the conduits shall be cleaned to ensure they are unobstructed.

**2. Sub-duct Installation**

When installing cables in large-diameter plastic ducts, plastic sub-ducts are typically used to improve conduit utilization and protect the cable:

| Item | Requirement |

| Sub-duct Material | Plastic tubing with good durability and environmental compatibility |

| Number of Sub-ducts | The total equivalent outer diameter of several sub-ducts should not exceed **85% to 90%** of the inner diameter of the main duct. |

| Sub-duct Inner Diameter | Should not be less than **1.5 times** the outer diameter of the cable. |

| Installation Method | Multiple sub-ducts within the same main duct shall be installed **in a single pull**. |

| Splice Requirement | Sub-ducts **shall have no splices** inside the main duct. |

| End Sealing | Unused sub-duct ends shall be sealed against water ingress. |

| Color Coding | Multiple sub-ducts within the same main duct should be distinguished by using different colors. |

**Sub-duct Protrusion Length:**

- Within manholes/handholes, the protrusion length of sub-ducts shall be **200mm to 400mm**.

- Within power ducts, the protrusion length of sub-ducts can be **150mm to 200mm**.

**3. Cable Installation Method**

Duct cables can be installed using mechanical pulling or manual pulling:

- The pulling tension for a single pull **shall not exceed the cable's allowable tensile strength**.

- After installation, the cable shall be **free from twisting, crossing, obvious scratches, or damage**.

- The cable **shall not be bent within 150mm** of exiting the conduit.

- At conduit bends or crossings with other obstacles, guiding devices or bell-mouth protective tubes shall be used for protection.

**4. Installation in Manholes/Handholes**

Cable installation within manholes/handholes shall meet the following requirements:

- The cable shall be **secured firmly** and should be protected with a plastic flexible tube (e.g., corrugated pipe).

- Cable splice closures shall be installed above the

year-round water level and supported by protective brackets.

- Cables **shall not pass directly through** a manhole.

- Reserved cable lengths shall be coiled according to bending radius requirements and securely fastened to brackets.

- **Cable identification signs or labels** shall be installed (a signboard shall be placed in every manhole).

- Cable splice closures shall be fixed to pre-embedded fittings on the manhole wall.

**5. Conduit Sealing**

After cable installation, the ends of both the main ducts and sub-ducts shall be sealed tightly as required by the design to prevent the ingress of water, vapor, and debris.
