Outdoor Armored Fiber Optic Cable
Loose tube:2.1mm
Armor: Aluminum tape
Sheath:9.0mm PE
Description
Technical Parameters
our company
Description of GYTA

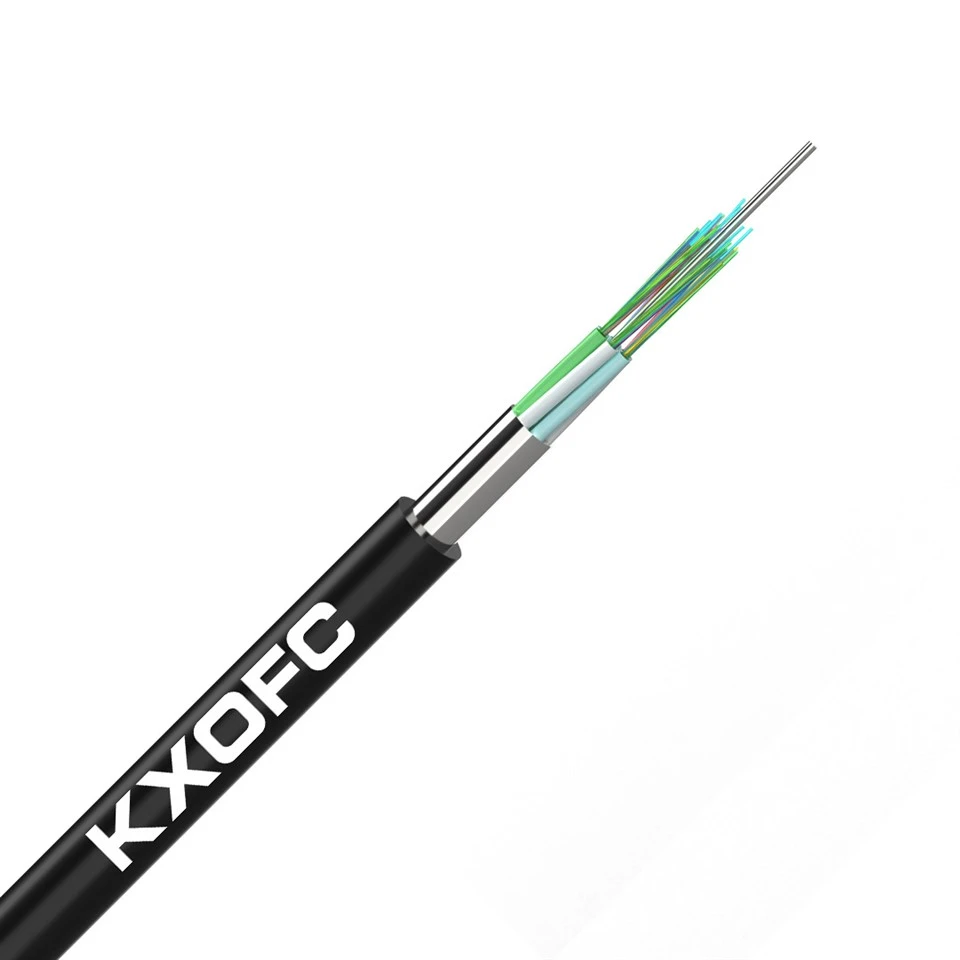

Outdoor Armored Fiber Optic Cable
Stranded multi-tube aluminum tape outdoor armored fiber optic cable GYTA

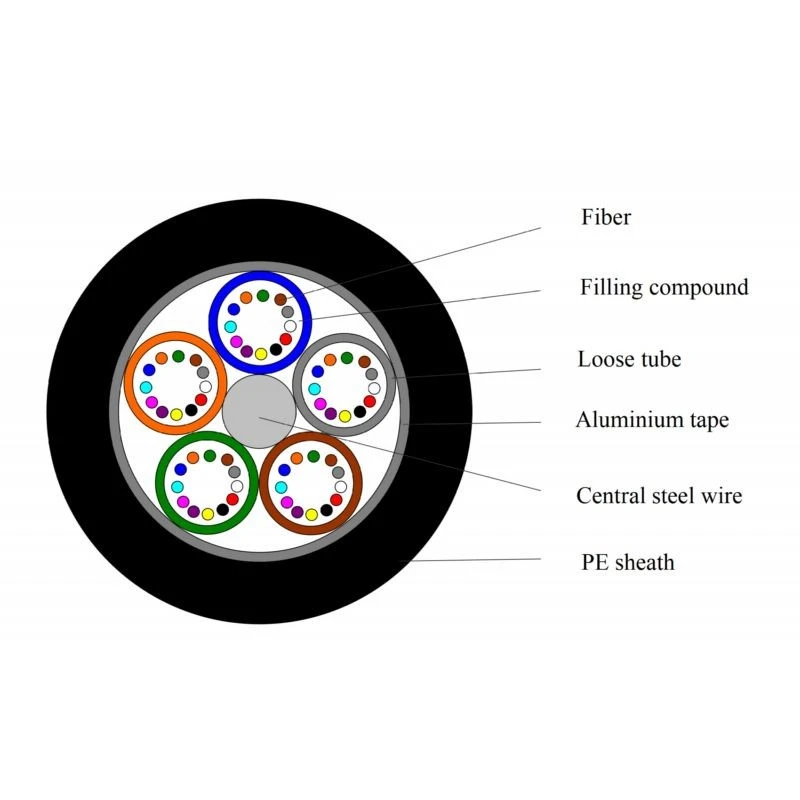

Outdoor armored fiber optic cable,optical fibers are housed in loose tubes that made of high-modulus plastic and filled with filling compound. The tubes (and fillers) are stranded around a central strength member and surrounded with Aluminum tape to form a cable core. An extremely outer PE sheath is extruded outside the core.

This optical cable GYTA utilizes a metallic central strength member as a supporting structure. 250μm optical fibers are housed within loose tubes filled with a water-blocking compound; these tubes are stranded around the central strength member to form a compact cable core. The core is then enclosed by a longitudinally applied aluminum-polyethylene laminate (APL) tape, followed by an extruded polyethylene outer sheath. The cable complies with the YD/T 901-2018 and IEC 60794-1 standards.
GYTA optical cables are available with fiber counts ranging from 2 to 288, categorized into type A (multimode) and type B (singlemode). The structural design incorporates water-blocking filler, hydrolysis-resistant loose tube material, a phosphated steel wire strength member, and an aluminum tape armor, providing high tensile strength, water resistance, and UV protection. The operating temperature range is -40°C to +60°C. Designed for duct or aerial installation, these cables meet the requirements for high-capacity data transmission and interference resistance in sectors such as telecommunications networks, power systems, and broadcasting/television.


Powerful Solutions For Business Growth
GYTA optical cables comply with the YD/T 901 and IEC 60794-1 standards [2] [6] [15] and are available with fiber counts ranging from 2 to 288.
The cable is designed to withstand a long-term tensile force of at least 600 N and a short-term tensile force of at least 1500 N. It can also withstand a long-term crush load of at least 300 N/100 mm and a short-term crush load of at least 1000 N/100 mm. The minimum bending radius for the cable is 10 times its outer diameter under static conditions and 20 times its outer diameter under dynamic conditions.
We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.
Our address
No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China
Phone Number
86-13819155030
shiney@kexincable.com

Hot Tags: outdoor armored fiber optic cable, China outdoor armored fiber optic cable manufacturers, suppliers, factory, anti rodent biting fiber cable, Anti Rodent Fiber Optic Cable, Armored Fiber Optic Cable Single Mode, GYXTW Fiber Optic Cable, GYXTW Optical Fiber Cable 12 core, Outdoor Armored Fiber Optic Cable
Technical Characteristics
|
Fiber Count |
12~288 core |
|
Loose Diameters |
2.1mm |
|
Loose Material |
PBT(Polybutylene Terephthalate) |
|
Central Strength Member |
Steel wire |
|
Armored |
Aluminum tape |
|
Outer Jacket Material |
PE |
|
Nominal Outer Dimensions |
9.0~15.0 mm (±0.3) |
|
Tension Strength (Short-Term / Long-Term) |
600N/1500N |
|
Crush Resistance (Short-Term / Long-Term) |
1,000 N/100mm 300 N/100mm |
|
Minimum Bend Radius (Static / Dynamic) |
10 x OD / 20 x OD |
*All above the cable size can be customized.
