Fiber Optic Cable Buried

Fiber optic cable buried uni-tube steels armored optical fiber cable GYXTY53

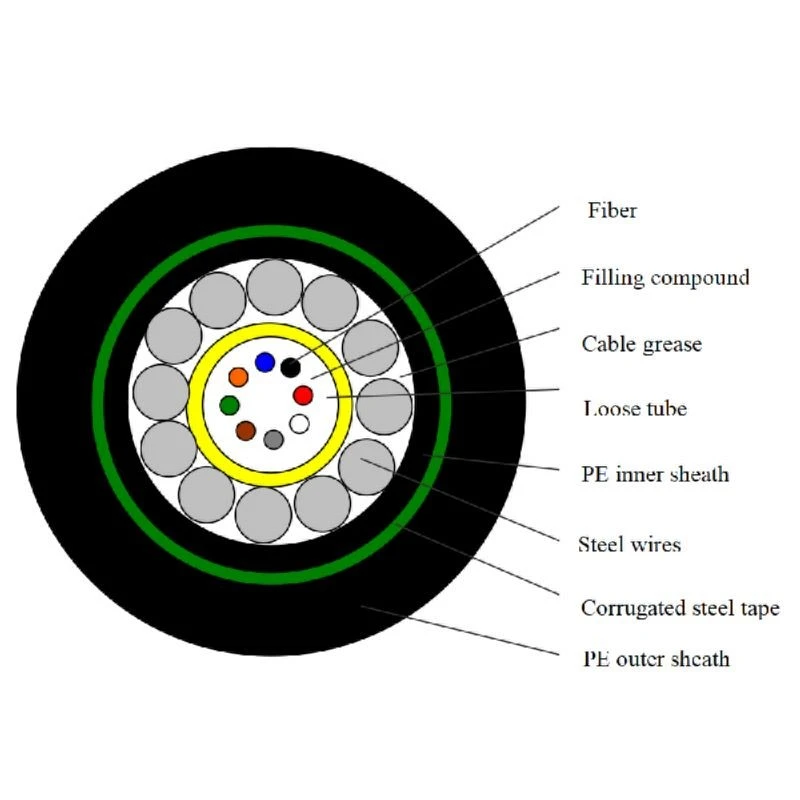

GYXTY53 fiber optic cable buried , optical fibers are housed in a central loose tube that made of high-modulus plastic and filled with tube filling compound. The tube around by 10/11/12 steel wires, a layer of inner PE sheath and corrugated steel tape. Finally, another layer outer PE sheath is extruded.
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and have long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables till now.





Features





product-600-600
  • Good water-blocking material to prevent water seepage in the longitudinal direction of the cable.



  • A layer of wrapped steel wire ensures the tensile strength of the cable.



  • Double-sided chrome-plated plastic-coated steel tape (PSP) and improves the moisture resistance of the cable.



  • High pressure flat force and tension resistance, and can withstand high tension.



product-1000-1000

Features

  • Mechanical Strength & Temperature Resistant: Steel wire wrapping adds tensile strength and durability.



  • Hydrolysis-Resistant Loose Tube: High-modulus material maintains the integrity of the fibers under pressure and humidity.

Increased Fiber Protection: Optical fibers are kept internal, inside grease.

Enhanced Moisture Resistance: Chrome-plated steel tape and water-blocking gel repel water.

Lightweight & Compact: Easy to transport, handle, and deploy over long distances.

Reinforced Structure: Layer construction offers additional protection against physical and rodent attacks.



Material highlight




PBT



PBT Loose Tube Extrusion Production Technology.

**PBT loose tube extrusion**

PBT loose tube extrusion is the molding process for optical cable inner protection sleeves in cable manufacturing workshops. Modified engineering PBT plastic particles are dried to remove internal residual moisture to avoid tube cracking after extrusion.



**The working principle of PBT plastic particles**

Plastic particles are melted evenly via segmented temperature-controlled screw extruder, then extruded into hollow tubular billet through fixed-size mold. Meanwhile, standard sizing air pressure is injected inside the tube to stabilize inner diameter dimension. After water tank circulating cooling, finished colored loose tubes are shaped and winded on spools.



**The usage process of PBT plastic particles**

Factory parameters control tube wall thickness, inner aperture and hardness to match corresponding fiber quantity. Anti-hydrolysis additives are mixed into PBT raw materials to extend underground service life of buried loose tube cables.










product-1080-1080



Application Scenario

Direct Burial Installations: Rodent-proof and mechanically resistant, perfect for underground deployment.

Duct Installations: Flexible and thin to navigate through restricted spaces with high pulling force.

Rodent-Prone Areas: Coated steel tape and steel wire guarantee rat-proofing.

High-Moisture Environments: Moisture-blocking gel and shielded protection ensure consistent performance in zones surrounding rivers, wetlands, or high-groundwater zones.

Long-Distance Communication Networks: Perfect for backbone and access networks requiring reliable transmission stability.

Urban and Suburban Infrastructure: Can bear construction stress and exposure to weather in urban systems.

Industrial Zones: Resists destruction due to heavy equipment, mechanical stress, and rodent infestation.

Harsh Outdoor Conditions: Designed to endure UV exposure, temperature stress, and other outdoor conditions.









own brand





FTTH drop cable-Ink printing
FTTH drop cable-Ink printing
Flat cable-Plasma pringting
Flat cable-Plasma pringting
Outdoor cable GYTC8S-Iron printing
Outdoor cable GYTC8S-Iron printing
Jumper cable- SC/UPC-SC/APC
Jumper cable- SC/UPC-SC/APC
GYTC8S 24 core -wooden drum
GYTC8S 24 core -wooden drum
FTTH cable-1km drum
FTTH cable-1km drum
FTTH cable-carton packing
FTTH cable-carton packing
Patch cords-Pallet package
Patch cords-Pallet package





Pack and ship


Patch cords in Pallet delivery
Patch cords in Pallet delivery
FTTH cable in cartons packing
FTTH cable in cartons packing
Flat cable in plywood drum package
Flat cable in plywood drum package
4b86f9a7e7a1b777db558f0849be4352
Composite drum full loaded into contianer
eedd5e3aac661809b4fc7f60d27f57d8
Solid wooden drum loading photo





Hot Tags: fiber optic cable buried, China fiber optic cable buried manufacturers, suppliers, factory, Direct Burial Armored Fiber Optic Cable, direct burial optical fiber cable, Direct Burial Single Mode Fiber Optic Cable, Fiber Optic Cable Buried, Fiber Optic Cable for Outdoor Use, Outdoor Fiber Optic Cable Single Mode

Technical Characteristics





Fiber Count

2~24

Loose Diameters

2.1 mm

Loose Material

PBT (Polybutylene Terephthalate)

Armor#1

Steel wires

Armor size

9/10/11 steel wires

Armor#2

Corrugated steel tape

Outer Jacket Material

PE

Nominal Outer Dimeter (±0.3)

12.8 mm

Tension Strength (Short-Term / Long-Term)

3000N/1000N

Crush Resistance

(Short-Term / Long-Term)

3,000 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
