4 Core Drop Cable

FTTH stranded steels self-supporting 4 core drop cable GJYXCH
GJYXCH 1/2/4 core drop cable, The butterfly-shaped indoor optical cable for self-supporting access network is to place the optical communication unit in the center, place two parallel metal strengthening elements steel wire on both sides, and add a steel wire strengthening element on the outside. Finally, Extruded black or colored low-smoke halogen-free sheath into cables.
Send Inquiry

Description

Technical Parameters

Products Description



Fiber Optic Drop Cable

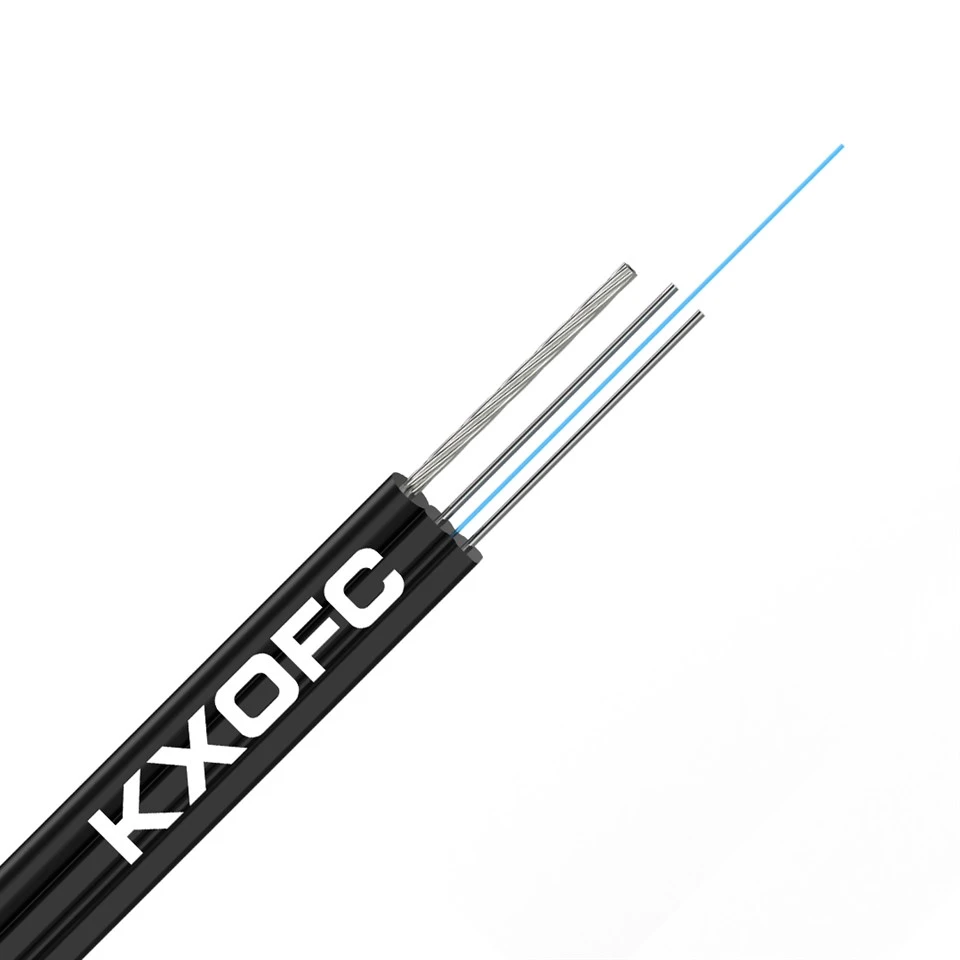

GJYXCH Flat Self-Supporting Drop Cable with Stranded Messenger

This flat self-supporting drop cable integrates a 7-strand steel messenger and the bow-type cable section side by side in one flat sheath - unlike the conventional round-messenger figure-8 design, the whole cable is slimmer, coils tighter and ships more compactly.

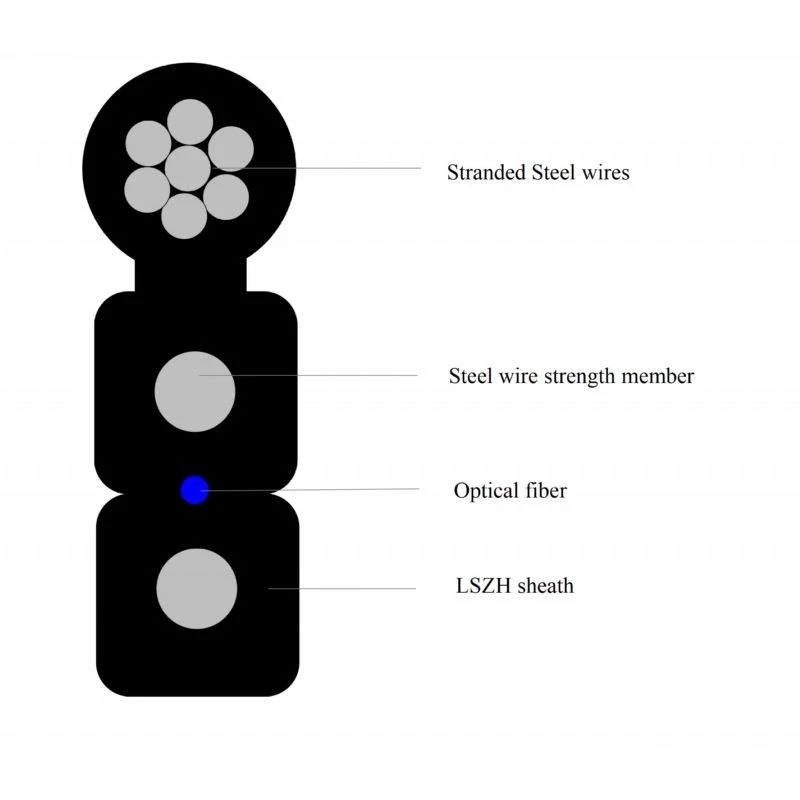

Inside the black LSZH/PE sheath: the stranded steel messenger (flexible, fatigue-resistant) carries the aerial tension; two parallel steel wires provide crush protection; a blue tight-buffered fiber sits at the center for easy stripping and splicing. Laser-printed branding and meter marks available.

Ideal for pole-to-home FTTH aerial drops and short inter-building spans up to 60–80 m - clamp it directly onto poles or wall anchors, no separate messenger required. 1/2/4 fibers, OEM available.

Stranded Messenger VS. Single Steel Wire


Lorem ipsum dolor sit amet consectetur adipisicing elit.

Stranded messenger (1×7)​



Far more flexible - coils easily, resists kinking and does not snap when bent sharply
Superior fatigue resistance, ideal where the cable is repeatedly deployed and retrieved
Load distributed more evenly, giving better performance under wind-induced vibration and ice loading
Easier routing around corners, over undulating terrain and along curved pole lines
Best for spans of 60–80 m, high-wind areas and complex routes

4 Core Drop Cable

Single wire messenger



Simple, compact and lighter overall, with a slimmer figure-8 profile
Lower cost - the most economical option for standard drops
Stiff and straight, easy to clamp and tension during installation
Best for short spans, roughly 30–50 m between poles, on straight routes with light mechanical load

Aerial Drop Cable

Service Content

Full lifecycle service chain


Your Trusted Optical Cable Manufacturer In China

photobank (11).jpg

Pre-sales

Professional technical consultation and fiber optic cable solution design; customized product development based on project requirements; free sample provision and product performance testing; site survey and project budget assessment.

On sale

Strict quality control and stable production scheduling; flexible order adjustments and timely production progress feedback; professional packaging and secure logistics arrangements; complete delivery documentation and customs clearance support.


After-sales service

On-site installation guidance and technical training; rapid after-sales response and troubleshooting; product warranty and regular quality tracking; long-term technical support and maintenance services.




Contact us



How To Cooperate With Us?

Leveraging over 30 years of experience and flexible production lines, Kexin Cable can customize PE outer diameter, steel wire and FRP specifications, core count, and cable body printing according to project requirements. We also optimize trays and packaging solutions for container loading space, improving single-container loading rates. Sample delivery is as fast as 7 days, and OEM and customer brand customization are supported. Our experienced technical team provides end-to-end technical support in areas such as complex operating condition selection and non-standard specification development.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China 311300

WhatsApp

+86-18968035161

E-mail

faye@kexincable.com

GYXY (1).jpg

Hot Tags: 4 core drop cable, China 4 core drop cable manufacturers, suppliers, factory, 2 Core Ftth Drop Cable, 4 Core Drop Cable, Aerial Drop Cable, Fiber Optic Cable Ftth, Flat Drop Fiber Cable, ftth drop cable and patch cords

Technical Characteristics





No. of cable

1/2/4

Fiber Model

G.657A1

Strength Member

Material

Steel Wire

Diameter(±0.03)mm

0.4

NO.

2

Support member

Material

Steel Wires

Diameter(±0.03)mm

7*0.33

Outer Sheath

Material

LSZH

Colour

Black / white

Cable Diameter(±0.2)mm

2.0×5.0

Cable Wetght(±2)kg/km

20

Attenuation

1310nm

dB/km

0.40

1550nm

0.30

Allowable Tensile Strength

Short Term

N

600

Long Term

300

Allowable Crush Resistance

Short Term

N/100mm

2200

Long Term

1000

Min. bending radius

Without Tension

15.0×Cable-φ

Under Maximum Tension

30.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+60

Operation

-40~+60



*All above the cable size can be customized.
