Stranded multi-tube non-metal GYFTY fiber optic cable
Fiber brand name: YOFC, Corning, Fiberhome
MOQ:10km
Brand name: KXOFC, OEM/ODM available
Certificate: ISO9001, CE, China Radio and television equipment network access certification
Application: Telecom Communication
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and sale optical fiber cable to more than 30 countries and have 18 years` rich experience to export cables .



Products Description



product-628-628

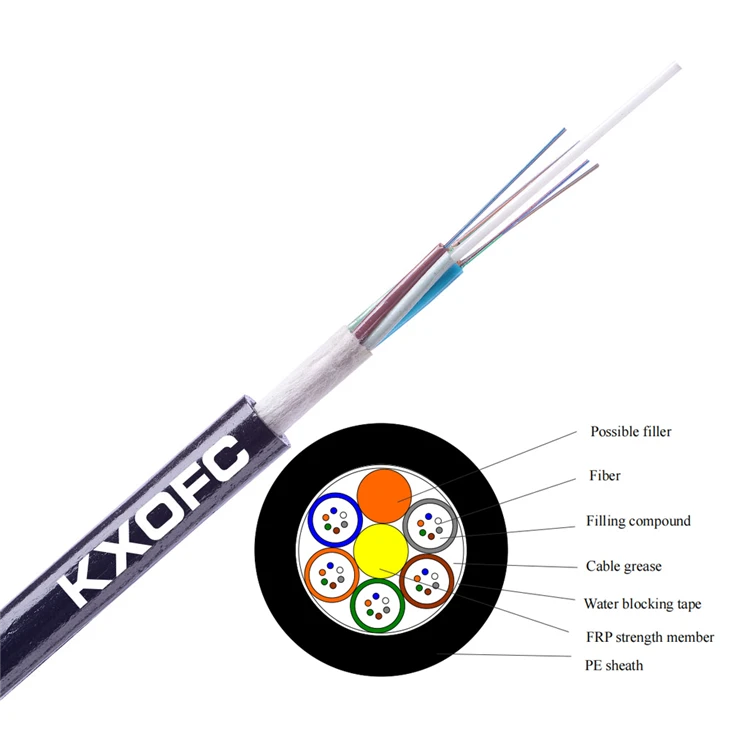

Non metal stranded loose tube fiber optic cable, The fibers, 250µm, are positioned in a loose tube made of a high modulus material. The tubes are filled with a water-resistant filling compound. The center of the cable core is a glass fiber reinforced plastic (FRP). The loose tube (and filling rope) are stranded around the central strengthening core to form a compact and circular cable core. The gaps in the cable core are filled with water-blocking fillers. A layer of polyethylene sheath is extruded outside the cable core to form the cable.



Features:



• Accurate process control ensuring good mechanical and temperature performances

• The material of loose tubes with good hydrolysis resistance and relatively high strength

• Tube filling compound providing key protection for fibres

• All-dielectric design, applicable to lightning-prone areas

• Applicable to aerial and duct installations with anti-rodent and anti-lightning requirements

product-621-621



Fiber color code



product-616-153





cable materials






Our mateirals

product-628-628
fiber
product-560-560
cable jelly
product-560-560
PBT



product-561-561
FRP rods
product-564-564
water blocking tape
product-560-560
PE / LSZH





Cable Production process




product-629-731





Applications:




 is widely used in outdoor duct-based communication networks, with core application scenarios including:


(1) Telecom Backbone & Access Networks
Deployed in municipal communication ducts to connect central offices (COs), base stations, and access points (e.g., 5G macro base station backhauls, FTTx (Fiber-to-the-x) trunk lines).


(2) Smart City Infrastructure
Used in ducts for smart grid communication (e.g., connecting substation control systems), intelligent transportation (e.g., traffic signal transmission), and IoT sensor networks (e.g., environmental monitoring sensors).


(3) Industrial & Enterprise Networks
Applied in factory duct systems to transmit data between production lines, control centers, and cloud servers (e.g., automotive factories, logistics warehouses)-the aluminum armor resists industrial dust and minor chemical splashes.


(4) Rural & Suburban Communication
Laid in underground ducts to extend optical networks to rural areas, avoiding damage from harsh outdoor conditions (e.g., wind, rain) and reducing maintenance costs compared to aerial cables.


(5) Indoor-Outdoor Transition (Limited)
In some cases, it can be used for short-distance indoor runs (e.g., from outdoor ducts to building basements) if the environment is dry-though dedicated indoor cables (e.g., GJFJV) are preferred for long indoor segments.







own brand





FTTH drop cable-Ink printing

Flat cable-Plasma pringting

Outdoor cable GYTC8S-Iron printing

Jumper cable- SC/UPC-SC/APC

GYTC8S 24 core -wooden drum

FTTH cable-1km drum

FTTH cable-carton packing

Patch cords-Pallet package






Pack and ship



Patch cords in Pallet delivery

FTTH cable in cartons packing

Flat cable in plywood drum package

4b86f9a7e7a1b777db558f0849be4352

eedd5e3aac661809b4fc7f60d27f57d8








Certificates

product-831-451





our service





Standard export packaging:

All products are packed in sturdy, suitable for shipping wooden crates to prevent dust accumulation and mechanical damage during long-distance transportation.


Custom Packaging:

customized cable lengths, private labeling, and OEM branding are available upon request. Each reel or carton is clearly marked with product specifications, batch number, and handling instructions.


Shipping Methods:

We support multiple shipping terms including EXW, FOB, CIF, DAP, and DDP. Goods can be delivered by sea, air, rail, or express courier (DHL/FedEx/UPS) depending on order volume and destination.

Documentation:

Full export documents are provided, including Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin (CO/Form E/Form F), and relevant test reports to ensure smooth customs clearance.







Hot Tags: non metallic fiber cable, China non metallic fiber cable manufacturers, suppliers, factory, Flat Fiber Optic Cable, G652D Fiber Cable, GYFTY Fiber Optic Cable, Kabel Fo Duct, non metal dielectric optical cable

Technical Characteristics





Fiber Count 12~288 core
Loose Diameters 2.1mm
Loose Material PBT(Polybutylene Terephthalate)
Central Strength Member FRP
Water blocking material Water blocking tape
Armored /
Outer Jacket Material PE
Nominal Outer Dimensions 9.0~15.0 mm (±0.3)
Tension Strength (Short-Term / Long-Term) 600N/1500N
Crush Resistance (Short-Term / Long-Term)

1,000 N/100mm

300 N/100mm

Minimum Bend Radius (Static / Dynamic) 10 x OD / 20 x OD
