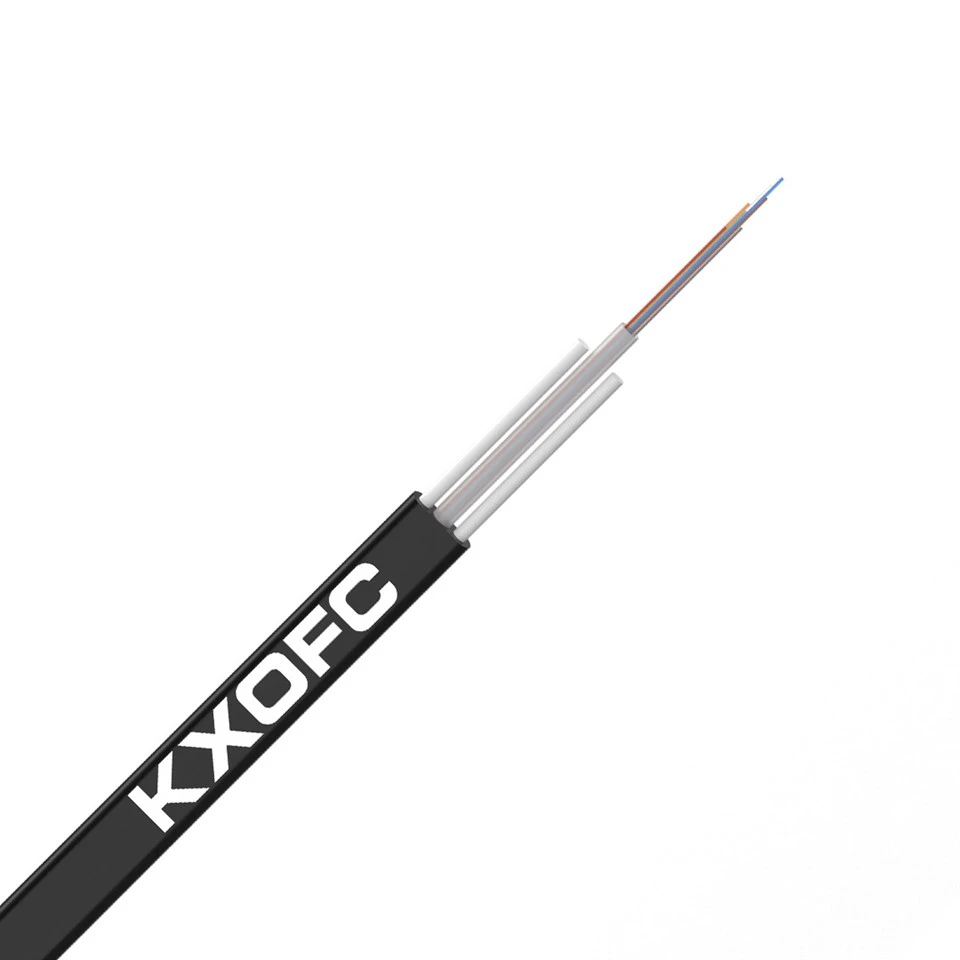

Flat Fiber Optic Cable

All dielectric non-metal flat fiber optic cable
Flat fiber optic cable ,optical fibers are housed in a loose tube that is made of high-modulus plastic and filled with jelly. Two FRP are placed in parallel outside the tube, and a flat-shape PE sheath is extruded.
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and have long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .





product-472-358

According to the naming convention for optical cables, the designation GYFXBY can be broken down as follows:

GY: Outdoor optical cable for telecommunications
F: Non-metallic strength member
X: Central tube structure
B: Flat (ribbon-like) structure
Y: Polyethylene (PE) sheath
Thus, the term refers to an outdoor optical cable featuring a non-metallic strength member, a central tube design, a flat structure, and a polyethylene sheath.







Light weight and small diameter.

High tensile strength, also suitable for self-supporting aerial application.

Excellent lateral pressure resistance and temperature performance.

All dielectric structure, which avoids conducting lighting to home and improves safety.

product-374-336



Key Structural Features






FRP placed on both sides (not in the center)

Enhances bending stability in the flat direction.Increases tensile strength

Prevents cable rotation inside conduits;





Loose tube construction

Allows fiber to move freely

Reduces installation stress on the fiber;





Flat shape

Fits flush against walls/floors

Provides good concealment

Low friction during pulling.





Key advantages

Choose the Flat Fiber Optic Cable that suits you best.

All-Dielectric Design

Constructed entirely from non-metallic materials, offering excellent resistance to electromagnetic interference, lightning strikes, and static electricity.

01

High Crush Resistance

The flat structure provides superior lateral crush resistance and is compatible with specialized wedge-type clamps for installation.

02

Compact and Lightweight

Features a central tube design, resulting in a small diameter and low weight for easy deployment.

03

Easy to Strip

Two parallel FRP strength members are positioned alongside the loose tube, allowing for convenient stripping during installation.

04



How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: flat fiber optic cable, China flat fiber optic cable manufacturers, suppliers, factory, Flat Fiber Optic Cable, G652D Fiber Cable, GYFTY Fiber Optic Cable, Kabel Fo Duct, non metal dielectric optical cable

Technical Characteristics





Fiber Count 2~24
Loose Diameters 2.0mm
Loose Material PBT (Polybutylene Terephthalate)
Dielectric Strength Member Material FRP
Dielectric Strength Member Size 1.8 / 2.0 mm
Outer Jacket Material HDPE
Nominal Outer Dimensions 7.3 mm x 4.2 mm (±0.3)

Tension Strength

(Long-Term /Short-Term)

2400N/6000N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic) 10 x OD / 20 x OD



*All above the cable size can be customized.
