Self Supporting Fiber Optic Cable

Fiber count:12~288core
Fiber type:G652D Loose tube:2.1mm
Strength member:2.0mm steel wire
Armor:Corrugated steel tape
Sheath:9.0mm PE
Messenger:7*1.0mm stranded steel wires
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and sale optical fiber cable to more than 30 countries and have 18 years` rich experience to export cables .
product-576-486

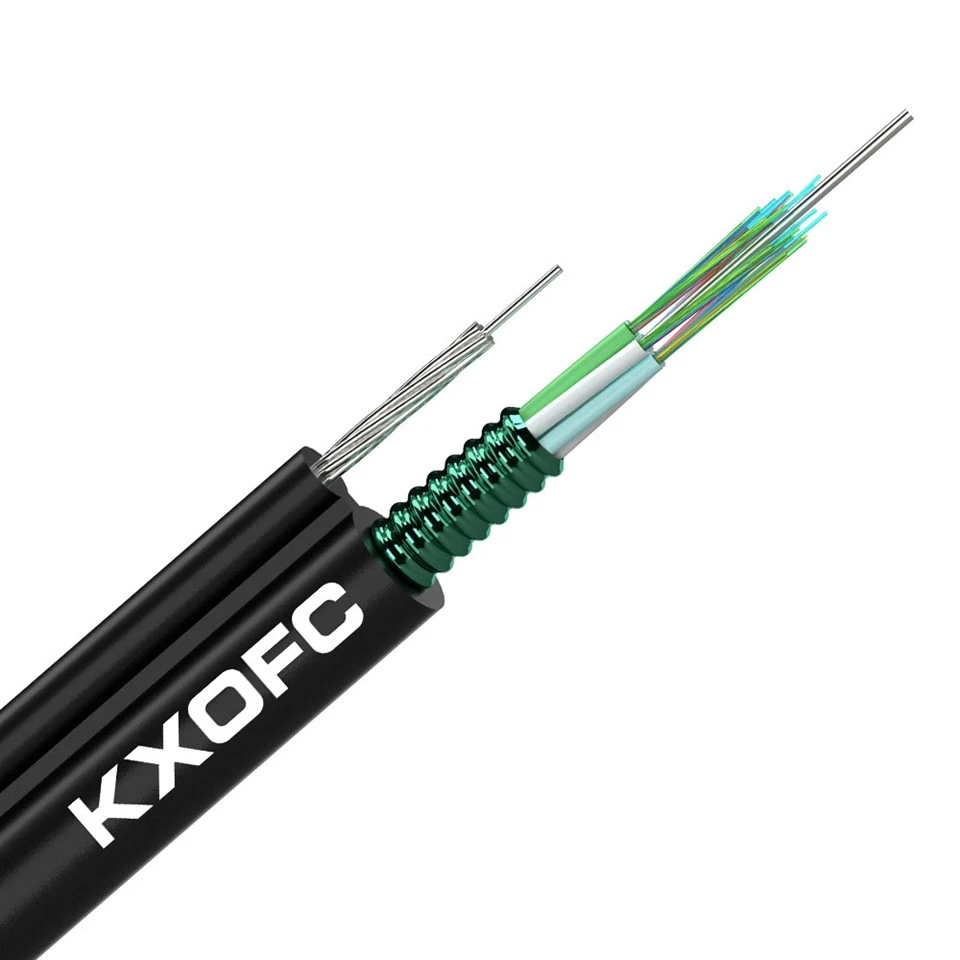

Aerial steel tape armored self-supporting fiber optic cable GYTC8S


GYTC8S Self supporting fiber optic cable,the core function is to transmit optical signals efficiently,self supporting fiber optic cable facilitates convenient overhead installation and ensures the smooth operation of trunk communications.

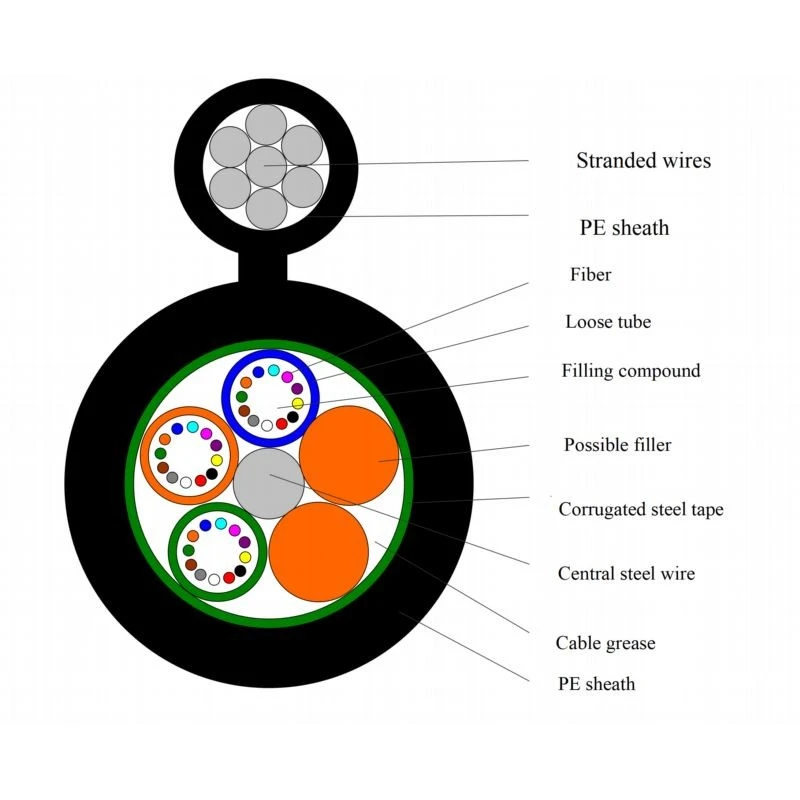

Self Supporting Fiber Optic Cable is an aerial-laid cable primarily used for long-haul communications, inter-office connectivity, and FTTH (Fiber-to-the-Home) network applications. Designated as model GYTC8S, its construction consists of loose buffer tubes, a metallic central strength member, an SZ-stranded cable core, and a figure-8 shaped polyethylene (PE) sheath, which integrates a steel wire strand to provide self-supporting capability. The cable features a longitudinally applied double-sided plastic-coated steel tape (PSP) armor, with the cable core filled with a water-blocking compound, ensuring resistance against moisture and longitudinal water ingress.

product-366-342
product-594-300
core advantage

The core advantage of the GYTC8S optical cable is its self-supporting aerial design, which allows for direct installation without the need for additional suspension wires, thereby reducing installation costs. Furthermore, it offers excellent tensile strength, moisture resistance, and resistance to lateral pressure.



Key Advantages of Self Supporting Fiber Optic Cable

Choose the Self Supporting Fiber Optic Cable suit you best



Self-supporting structure for easy installation

Featuring a figure-eight cross-section with an integrated steel-strand suspension wire, the cable can be installed directly via overhead suspension. This eliminates the need for a separate suspension wire, resulting in lower installation costs and faster deployment.



High tensile strength

Equipped with a central steel-wire reinforcement core and an integrated steel-strand suspension wire, the cable can withstand the tension applied during both installation and operation. It typically supports a short-term allowable tensile force of ≥1500 N, with some versions capable of exceeding 3000 N.



Excellent moisture and water resistance

The cable employs a fully water-blocked design. Loose tubes are filled with water-blocking gel, and the interstices within the cable core are also filled with water-blocking compounds. A steel-tape armor layer further enhances moisture resistance and lateral crush resistance.



Robust mechanical properties and environmental adaptability

The cable operates within a temperature range of -40°C to +70°C. It features a bending radius of 10 times the cable diameter (static) and 20 times the cable diameter (dynamic), while offering high resistance to compression, impact, and repeated bending.



Effective fiber protection

Optical fibers are housed within gel-filled loose tubes with sufficient excess length, ensuring minimal additional attenuation after cabling and stable transmission performance.



Long service life

The polyethylene (PE) sheath provides resistance to ultraviolet (UV) radiation, supporting an overall design lifespan of over 30 years.




product-526-406

Applicable Scenarios




Aerial installation with spans of up to 100 meters; commonly used in long-haul communications, inter-office communications, metropolitan area networks (MANs), access networks, and FTTH (Fiber-to-the-Home) networks.



PACKAGE of wooden drum

A wide variety of packaging options-there's sure to be one that's right for you.

01

Sturdy and secure

Comes with a professional, reinforced wooden reel! The timber is kiln-dried to prevent warping or cracking, ensuring durability during long-distance transport and protecting the optical fiber from being crushed.

02

Easy for Installation

Features a standard-sized center hole, allowing it to spin smoothly on a cable payout stand; this prevents tangling during deployment and simplifies the installation process.

03

Fumigated available

Fumigation-free versions are also available for export. Each reel is clearly marked with the model and length, making inspection and verification straightforward.





product-450-376

who we are?

Hangzhou Lin'an Kexin Optical Cable attaches great importance to standardized quality control and has built a complete certification system. The company has obtained ISO 9001 Quality Management System Certification. All series of optical cables and coaxial cables have passed network access certifications issued by MIIT and radio & television authorities. Our ADSS optical cables and flame-retardant  cables carry type test reports from authoritative third-party laboratories. We also hold complete production, environmental protection and work safety permits. The optical, mechanical, weather-resistant and flame-retardant performance of all products comply with national and industrial standards. Our full range of official certificates supports bidding for domestic telecom operators, infrastructure projects and overseas foreign trade, serving as authoritative proof of reliable product quality and stable cooperation.

high quality

Every reel of optical cable undergoes full inspection; products are tested in accordance with international IEC standards.

advanced equipment

The factory is equipped with a full suite of production lines-covering fiber optic cable extrusion, cabling, and sheathing-as well as a professional testing laboratory.

professional team

18 years of export experience, with deep expertise in overseas project certification, packaging, ocean freight, and documentation; products exported to numerous countries, serving overseas ISP.

global shipping

Prompt delivery, worldwide shipping available.







How To Cooperate With Us?

Welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: self supporting fiber optic cable, China self supporting fiber optic cable manufacturers, suppliers, factory, Aerial Fiber Optic Cable, Aerial Fibre Optic Cable, fig 8 self support optical fiber cable, Overhead Fiber Optic Cable, Self Supporting Aerial Fiber Cable, Self Supporting Fiber Optic Cable

Technical Characteristics





Fiber Count

12~288

Loose Diameter

2.1 mm

Loose Material

PBT (Polybutylene Terephthalate)

Strength Member

Central steel wire

Steel tape armored

Messenger

7*1.2mm Steel wires

Outer Jacket Material

HDPE

Nominal Outer Dimensions

9.0mm*14.8mm (±0.3)

Tension Strength

(Long-Term /Short-Term)

3000N/7000N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
