Figure 8 Fiber Optic Cable
video

Figure 8 Fiber Optic Cable

Fiber count:2~24core
Fiber type:G652D
Loose tube:2.3mm
Armor:steel tape
Sheath:7.5mm PE
Messenger:7*1.0mm stranded steel wires
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .
product-472-390

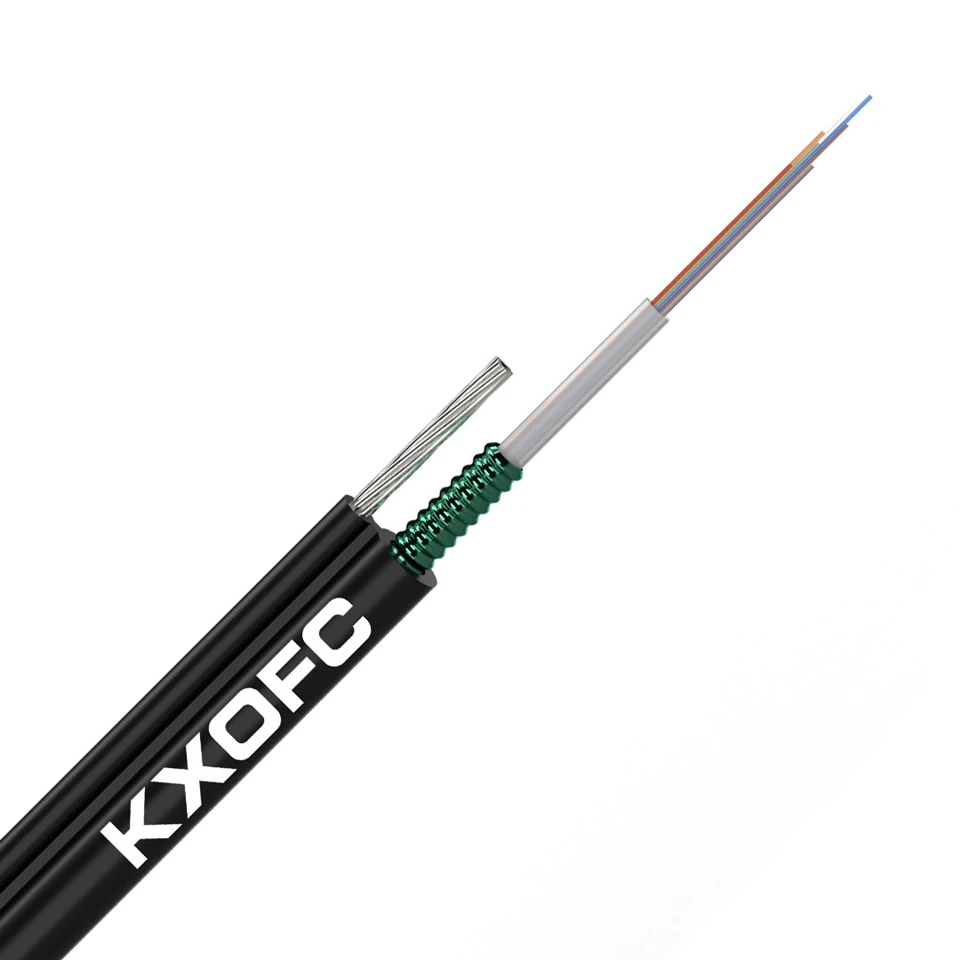

Aerial self-supporting Armored Figure 8 fiber optic cable


GYXTC8S Figure 8 fiber optic cable efficiently transmits optical signals, aerial self-supporting armored Figure 8 Cables stably carries large-capacity data, and ensures continuous and uninterrupted communication signals. With its strong protective performance featuring steel strips and figure-8 structure suitable for overhead installation, fiber figure 8 efficiently connects various communication nodes.



Key Feature

GYXTC8S is a figure-eight self-supporting aerial optical cable, commonly used for outdoor telecommunication line installations.

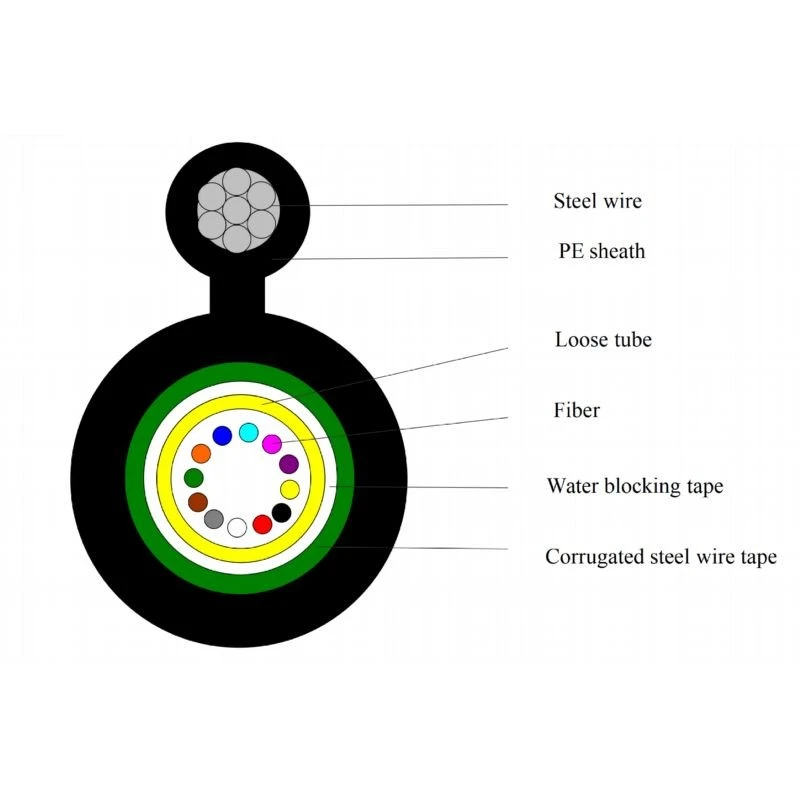

Its key feature is its figure-eight cross-sectional profile, consisting of a steel suspension wire at the top and the cable core at the bottom. This design eliminates the need for a separate steel strand during installation, making the construction process more efficient.

product-462-388



product-538-332
How should this model number be interpreted?

GY: Outdoor optical fiber cable for telecommunications.
X: Central loose tube cable core structure.
TC: Filled (gel-filled) structure.
8: Figure-8 cross-sectional shape, with an integrated steel suspension wire.
S: Steel tape armor.



Key Parameters




Fiber Count

Typically 2–96 fibers; higher counts can be customized.

Structure

Central loose tube + water-blocking material + steel tape armor + polyethylene (PE) sheath.

Operating Temperature

 -40°C to +60°C.

Bending Radius

Approximately 10–12.5 times the cable diameter (static); approximately 20–30 times the cable diameter (dynamic).

Tensile Strength

 Long-term: approx. 600–1000 N; short-term: approx. 1500–4000 N (varies based on fiber count and manufacturer).

Attenuation Coefficient

For single-mode fiber, typical values ​​are ≤0.36 dB/km at the 1310 nm window and ≤0.22 dB/km at the 1550 nm window.



Why Choose us?



Production Capability

25 years of professional experience in fiber optic cable manufacturing; equipped with in-house production facilities and a full suite of testing equipment, ensuring end-to-end, self-managed production.

01

Quality Control

Multi-layered quality assurance-covering raw material inspection, in-process monitoring, and batch testing of finished products-to guarantee optimal optical and mechanical performance.

02

Product Performance

Features low transmission loss, high tensile and compressive strength, and excellent weather resistance; suitable for diverse deployment environments, including indoor, aerial, duct, and direct-buried applications.

03

Customization

Offers tailored solutions for fiber count, armoring, jacketing, and specialized environmental requirements; samples are available upon request.

04

Supply & Service

Direct supply from the manufacturer with robust production capacity to guarantee timely delivery; comprehensive technical support provided with rapid response to project-specific needs.

05



product-550-406

Package



1. Professional wooden reel packaging for fiber optic cables-prevents crushing and bending, ensuring stable signal transmission.
2. Reinforced wooden reels-built to withstand the rigors of long-distance transport and facilitate smooth, tangle-free cable deployment at the job site.
3. Fumigation-free plywood reels-suitable for both domestic projects and international exports.
4. Clearly labeled reels-specifications are easy to identify at a glance, simplifying the inspection and acceptance process.









How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: figure 8 fiber optic cable, China figure 8 fiber optic cable manufacturers, suppliers, factory, Aerial Fiber Optic Cable, Aerial Fibre Optic Cable, Fiber Optic Overhead Cable, fig 8 self support optical fiber cable, Figure 8 Fiber Optic Cable, Overhead Fiber Optic Cable

Technical Characteristics





Fiber Count

2~24

Loose Diameters

2.3 mm

Loose Material

PBT ((Polybutylene Terephthalate))

Armor

Steel tape

Self Strength Messenger

7*1.0mm Steel wire

Nominal Outer Dimensions

7.5mm *12mm(±0.3)

Outer Jacket Material

HDPE

Tension Strength

(Long-Term /Short-Term)

1000N/3000N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
