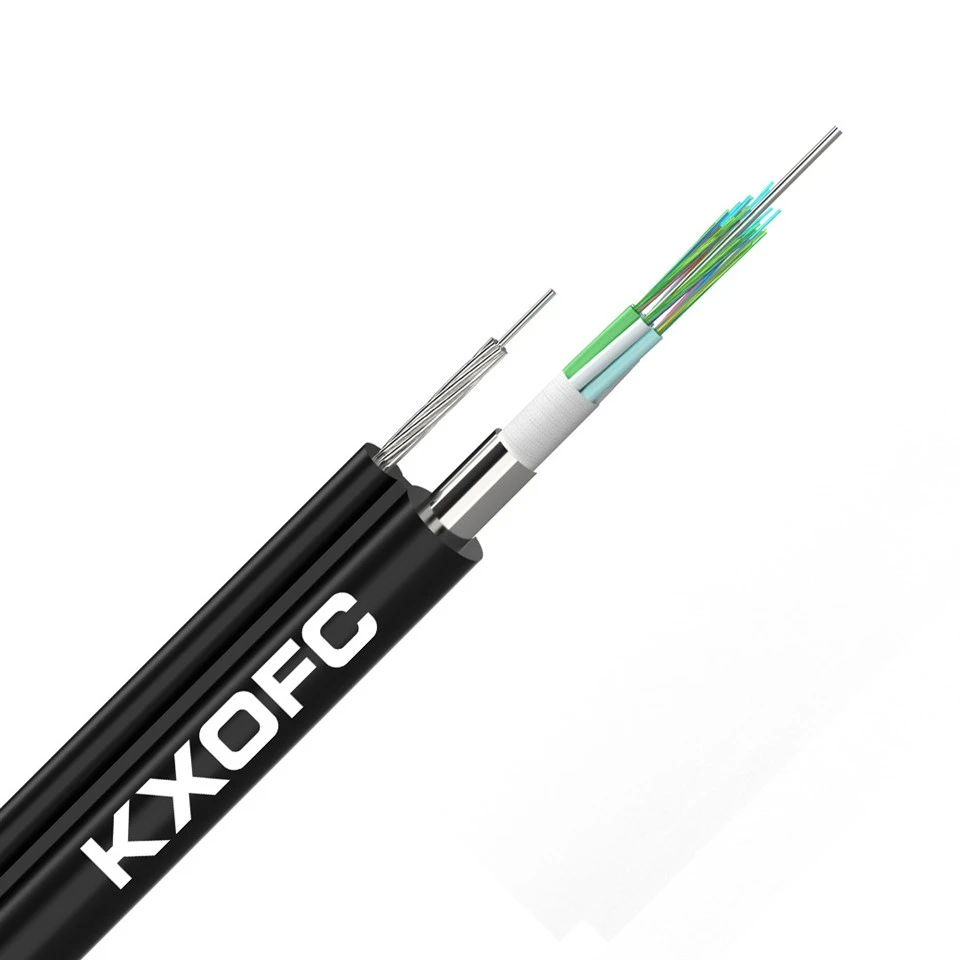

Aerial Fibre Optic Cable
video

Aerial Fibre Optic Cable

Fiber count:12~288core
Fiber type:G652D
Loose tube:2.3mm
Strength member:2.0mm Steel wire
Armor:Aluminum tape
Sheath:9.0mm PE
Messenger:7*1.0mm stranded steel wires
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .



product-534-466

Aerial fibre optic cable self-supporting aluminum tape armored optical fiber cable GYTC8A

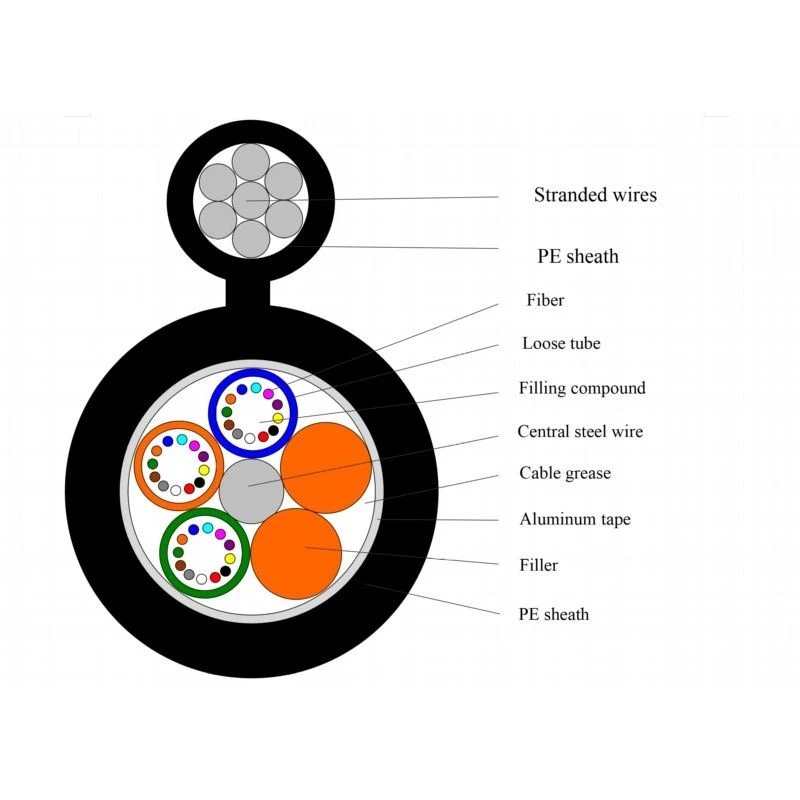

GYTC8A Aerial fibre optic cable are housed in loose tubes that aerial self-supporting aluminum tape armored optical fiber cable are made of high-modulus plastic and filled with jelly. The loose tubes around the central steel wire to form a cable core. The core is covered by Aluminum tape and PE sheath. Stranded steel wires are applied as the messenger. Finally,a figure-8 PE outer sheath is extruded.



GYTC8A is a figure-eight, self-supporting outdoor communication optical cable, where the "A" in the model designation denotes an aluminum-polyethylene bonded sheath. It integrates the optical cable core with a galvanized steel strand, resulting in a cross-section shaped like the number "8." This design allows the cable to be installed aerially on its own-without the need for an additional suspension wire-thereby simplifying installation and reducing costs.

product-390-358



Structural Features



01

Cable Core

Optical fibers are housed within loose buffer tubes filled with a water-blocking compound; these tubes are stranded around a central metallic strength member to form the cable core.

02

Moisture Barrier

The cable core is longitudinally wrapped with a plastic-coated aluminum tape, which provides moisture resistance and protection against lateral pressure.

03

Self-Supporting Structure

A high-strength galvanized steel wire strand serves as a self-supporting suspension element. This is extruded together with the cable core into a figure-eight-shaped polyethylene (PE) sheath, ensuring high tensile strength.





Key Parameters



Application Scenarios

Long-haul communication, inter-office communication, metropolitan area networks (MANs), access networks, and FTTH (Fiber to the Home). Suitable for self-supporting aerial installation with spans of up to 100 meters

01

Operating Temperature

 -40°C to +60°C.

02

Fiber Core Count

 Typically 2 to 288 cores; specifications may vary slightly by manufacturer.

03

Bending Radius

≥10 times the cable diameter (static); ≥20 times the cable diameter (dynamic).

04

Compliance Standards

Conforms to YD/T 1155 and IEC 60794-1 standards.

05


product-348-322

Key advantage



The primary advantage of the GYTC8A optical cable is its self-supporting aerial design; it can be installed directly without the need for additional steel strand wires, resulting in faster construction and lower costs.

As a "figure-8" self-supporting cable, it integrates the cable core and the suspension wire within a single figure-8-shaped sheath. This eliminates the need to install separate steel strands or suspension hooks, significantly accelerating the installation process. It is well-suited for applications such as long-haul telecommunications, inter-office connectivity, and Fiber-to-the-Home (FTTH) deployments.



How do you choose a reliable fiber optic cable?


It's not just about the lowest price; you need to look at a manufacturer's track record and depth of experience.
We have been producing fiber optic cables for 25 years, serving a wide range of projects in security, telecommunications, and smart city infrastructure.
We've seen too many job sites where poor-quality cables led to costly rework and network outages.
Every batch of our cables undergoes comprehensive optical and tensile strength testing before leaving the factory.
We offer a full range of products-including outdoor armored cables, indoor cables, and drop cables-with full customization options available.
As a direct manufacturer, we eliminate middlemen, ensuring competitive pricing and reliable delivery timelines.

product-636-316





TEST



Our optical fiber is tested at every step of the production process.


01


Bare Fiber

After procuring the optical fiber, we test every single reel before the coloring process.


02


Loose tube

After placing the optical fibers into the buffer tube, perform a second test on the optical fibers.


03


PE

After stranded tube or after the central tube has been extruded PE, the optical fibers must also undergo testing.

product-710-438



FAQ





product-536-352

01.Are you factory or trading company?

We are an integrated manufacturing and trading company, capable of both production and direct export.

02.What`s your fiber brand?

We do not manufacture optical fibers; instead, we specialize in the production of optical cables. We source our optical fibers from major companies, such as ZTT, YOFC, and HTGD.

03.Can you OEM ?

Yes, welcome. Cable printing and drum printing can be customized.

04.What`s your payment term?

Usually TT, LC

05.How to choose cable?

Please let us know your requirements, and we will recommend the most suitable optical cable for your needs.

06.What`s the length of cable?

Typically 3 km per reel; other lengths can also be customized.







How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: aerial fibre optic cable, China aerial fibre optic cable manufacturers, suppliers, factory, Aerial Fiber Optic Cable, Fiber Optic Overhead Cable, fig 8 self support optical fiber cable, Figure 8 Fiber Optic Cable, Outdoor Aerial Fiber Optic Cable, Overhead Fiber Optic Cable

Technical Characteristics





Fiber Count

12~144

Loose Diameters

2.1 mm

Loose Material

PBT

Central Strength Member

Steel wire

Armor

Aluminum tape

Messenger

7*1.2mm steel wires

Nominal Outer Dimensions

9.0mm*14.8mm (±0.3)

Outer Jacket Material

HDPE

Tension Strength

(Long-Term /Short-Term)

3000N/7000N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
