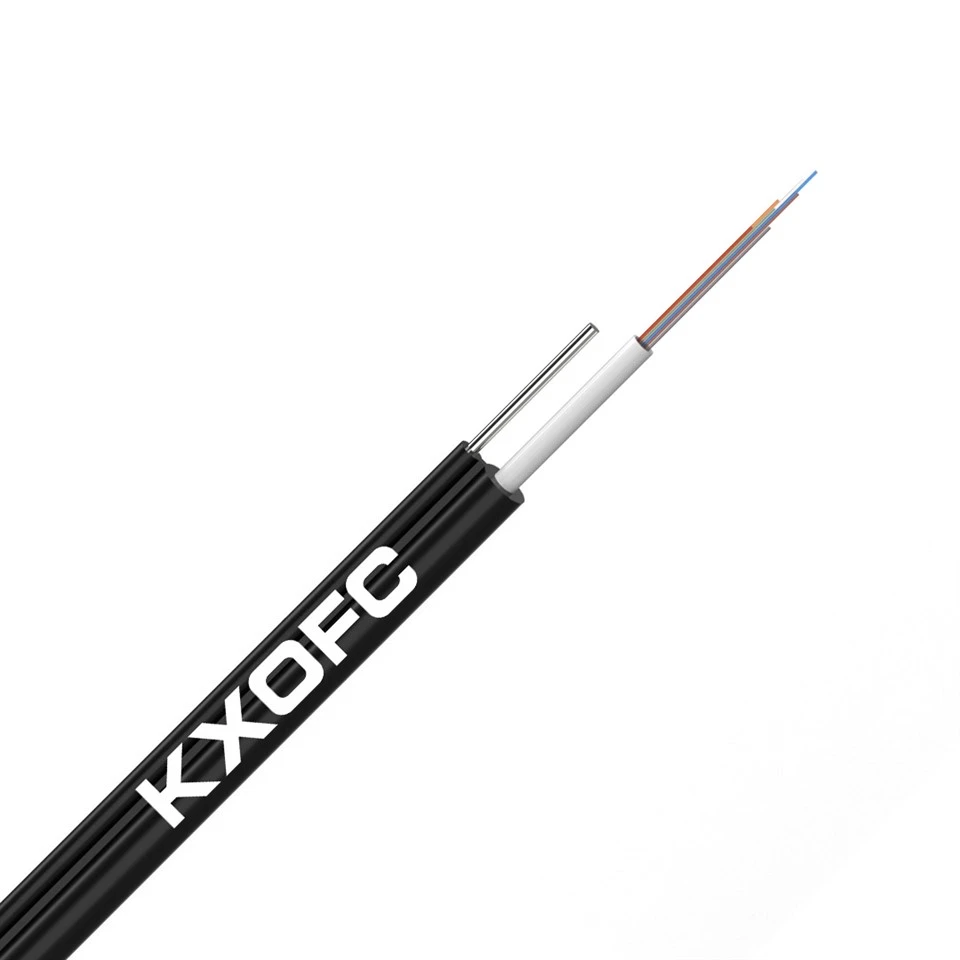

Overhead Fiber Optic Cable
video

Overhead Fiber Optic Cable

Fiber count:2~24core
Fiber type:G652D Loose tube:2.3mm
Sheath:5.0mm PE
Messenger:2.0mm single steel wires
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables .



product-328-288

Aerial self-supporting uni-tube overhead fiber optic cable GYXYC8Y


GYXYC8Y overhead fiber optic cable,the Mini Figure 8 Fiber Optic Cable Aerial Uni Tube is a specialized type of outdoor fiber optic cable designed for aerial installations. Loose tube filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

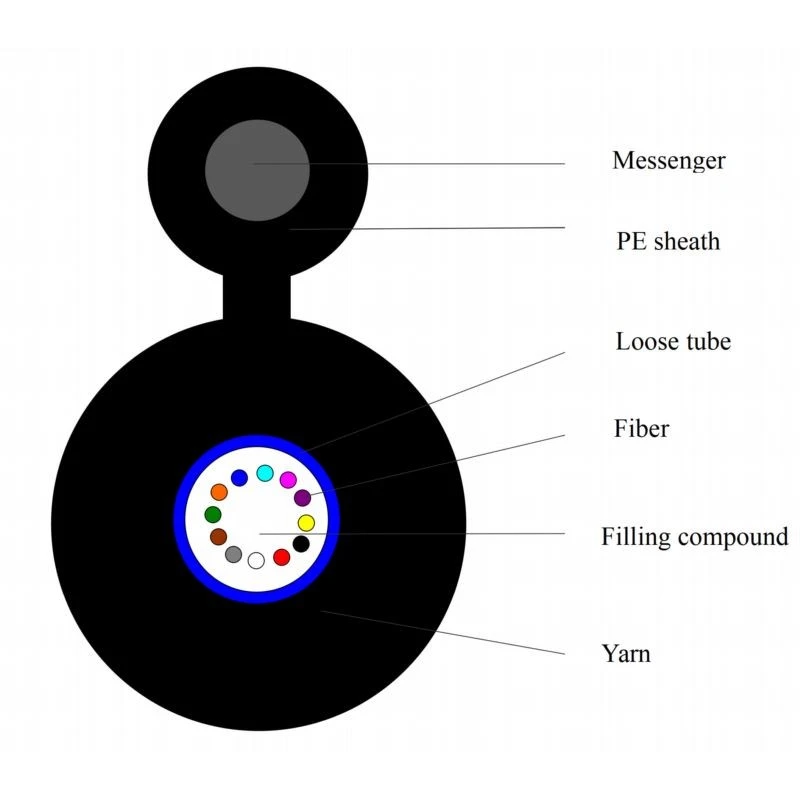

This is a "figure-8" self-supporting optical cable; the cable and a steel strand are joined together to form a cross-section resembling the number "8." Designed specifically for aerial installation, it eliminates the need for a separate suspension wire, making the installation process more convenient.

product-440-404
product-296-316
According to the naming convention for optical cables:



GY: Outdoor optical cable for telecommunications.
X: Central tube (sheath) structure-i.e., a central loose tube design.
TC: Self-supporting, with an integrated suspension wire.
8: "Figure-8" cross-sectional structure.
Y: Polyethylene (PE) sheath.

Notes: This type can add yarns as picture show.



Competitive advantage



Easy to install and cost-effective

The "figure-8" self-supporting structure features an integrated steel-wire suspension strand, allowing for direct overhead installation. This ensures high construction efficiency and lower installation costs compared to using standard fiber optic cables with separate suspension strands.

01

High tensile strength and long span capability

The phosphated steel-wire suspension strand offers excellent tensile strength, supporting longer overhead spans with minimal wind load-making it particularly well-suited for complex terrain, such as in mountainous regions.

02

Robust water and moisture resistance

The cable incorporates a full-section water-blocking design, with loose tubes filled with a specialized gel compound. This effectively prevents moisture ingress and protects the optical fibers.

03

UV-resistant and durable for outdoor use

 The polyethylene (PE) sheath provides superior UV resistance, enabling the cable to withstand long-term exposure to sun and rain in outdoor environments, with a typical service life of over 30 years.

04

Comprehensive fiber protection

The PBT (polybutylene terephthalate) loose tube material is hydrolysis-resistant; combined with the internal gel compound, it provides critical protection for the optical fibers, ensuring stable mechanical performance and consistent behavior across varying temperatures.

05




product-682-422

key advantage



The model designation "GYXYC8Y" likely refers to "GYXTC8Y" (a central-tube filled, figure-8 self-supporting outdoor optical cable). Its key advantage is the integrated load-bearing suspension wire, which allows for direct aerial installation without the need for an additional steel support wire.



Multi-layer testing

Each reel of cable must undergo multiple rounds of testing and meet all quality requirements before proceeding to the next stage of production.

Bare fiber test

1

>>

Colored fiber test

2

>>

Loose tube test

3

>>

Stranded tube test(if stranded)

4

>>

PE sheath test

5

>>

Packing test

6



Our production and equipment

Our free service hotline:86-13819155030

product-764-360

34

years



 We have been working in the industry since 1992

30000

㎡



We have our own factory, manage our own operations, and possess export rights.

18

lines



Equipped with 18 production lines featuring various types of advanced machinery, ensuring timely delivery.



product-598-714

Delivery container



🚚 From the production line to your hands, every step is taken with care-today's shipments are ready to go, carrying our commitment and quality straight to you.
📦 Each package holds a sense of anticipation; carefully packed and dispatched on time, all to ensure a moment of delightful surprise when it reaches you.
⚙️ With machinery humming and trucks setting off, we honor your trust through speed and quality-delivering excellent products to your doorstep without delay.









How To Cooperate With Us?

We welcome your inquiries regarding fiber optic cables. We are happy to answer any questions you may have and guarantee a response within 12 hours. Please find our contact details below.

Our address

No. 28 Linglong Street,Lin'an District, Hangzhou City, Zhejiang Province, China

Phone Number

86-13819155030

E-mail

shiney@kexincable.com

product-600-434





Hot Tags: overhead fiber optic cable, China overhead fiber optic cable manufacturers, suppliers, factory, Aerial Fiber Optic Cable, Aerial Fibre Optic Cable, Fiber Optic Overhead Cable, fig 8 self support optical fiber cable, Figure 8 Fiber Optic Cable, Outdoor Aerial Fiber Optic Cable

Technical Characteristics





Fiber Count

2~12

Loose Diameters

2.1 mm

Loose Material

PBT (Poly Butylene Terephthalate)

Self Strength Messenger

7*0.6mm steel wires

Outer Jacket Material

HDPE

Nominal Outer Dimensions

5.0*7.0mm (±0.3)

Tension Strength

(Long-Term /Short-Term)

3000N/7000N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
