24 Core Figure 8 Fiber Cable

24 Core Figure 8 Fiber Cable

Aerial self-supporting Armored Figure 8 fiber optic cable
Cable type:Aerial Self - Supporting Fig 8 Optical Fiber Cable GYXTC8S
Fiber type: G.652D
Fiber brand name: YOFC, Corning, Fiberhome,hengtong
Structure: uni-tube
Number of fibers: 2- 24 fibers
Armored: steel tape armor
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and sale optical fiber cable to more than 30 countries and have 18 years` rich experience to export cables .



Products Description



Figure 8 Fiber Optic Cable

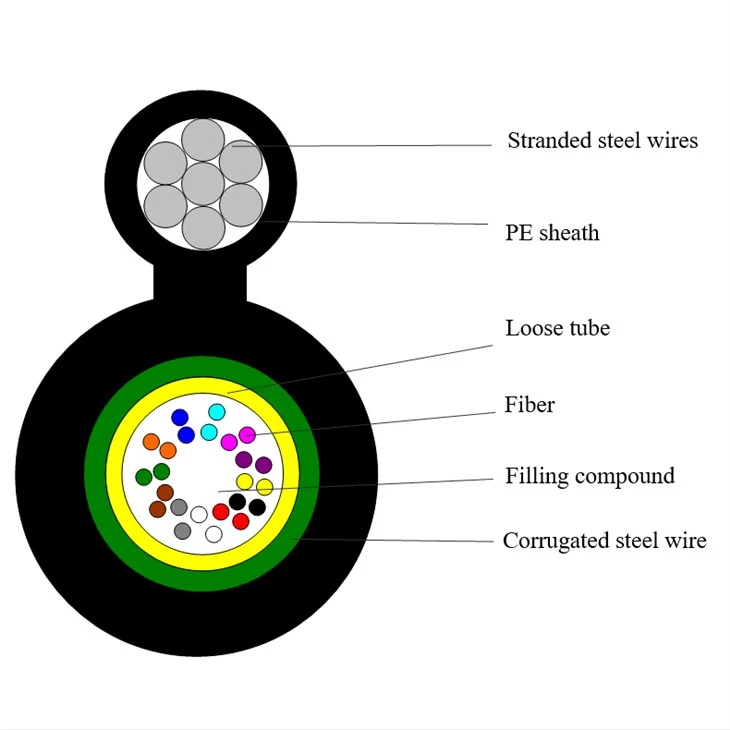

The GYXTC8S figure 8 fiber cable is a self-supporting structure that integrates the fiber cable core portion and the steel wire suspension into an "8" shaped PE jacket. There is no need to erect hanging wires and hooks during the laying process, and the operation efficiency is high and the laying cost is low. The GYXTC8S figure 8 fiber cable is very easily laid overhead between poles and poles, between poles and buildings, between buildings and buildings.



Features:



1. Optical fiber transmission has low loss and low dispersion.

2. The loose tube is filled with a special grease to critically protect the fiber.

3. The longitudinal steel strip strengthens the lateral pressure resistance of the cable.

4. The 8-shaped self-supporting structure has high tensile strength, is easy to lay overhead, and has low installation cost.

5. Full-section water-blocking structure ensures good water and moisture resistance.

24 Core Figure 8 Fiber Cable



Fiber color code








our factory materials



Our factory materials


More than 10 years Long-term cooperation brand materials suppliers.

fiber
cable jelly
PBT



.jpg
fig 8 type messenger: 7 stranded steel wires
steel tape armour
PE







Cable Production process







What quality control measures are in place for your fiber optic products





1. Source Assurance:

Partnering with trusted suppliers, our materials are ROHS certified and meet rigorous export quality standards.


2. Comprehensive Quality Testing:

Spanning from raw materials to finished goods, each step is meticulously examined, including packaging, surface inspections, and both physical and optical tests. Every item undergoes a 100% quality check.


3. Optical Testing:

Our products are rigorously tested in compliance with IEC and ITU standards.


4. Post-Production Spot Checks:

Our Quality Assurance Department conducts a 30% spot test on completed products to ensure unmatched reliability.



own brand


FTTH drop cable-Ink printing

Flat cable-Plasma pringting

Outdoor cable GYTC8S-Iron printing

Jumper cable- SC/UPC-SC/APC

GYTC8S 24 core -wooden drum

FTTH cable-1km drum

FTTH cable-carton packing

Patch cords-Pallet package






Pack and ship


Patch cords in Pallet delivery

FTTH cable in cartons packing

Flat cable in plywood drum package

4b86f9a7e7a1b777db558f0849be4352

eedd5e3aac661809b4fc7f60d27f57d8



Certificates




FAQ



How do you arrange shipping?
Option A:

we manages the entire process, delivering to your local port or directly to your office. Choose between sea and air shipping (FedEx, DHL, UPS, TNT, EMS), using your express account or our reliable agent, with a delivery window of four to seven days.



Option B:

You select a Shenzhen logistics company to handle shipping and Fibconet will adhere to their guidance for seamless delivery.



Shipping& Delivery

For large orders:by sea(LCL or FCL)
For small orders:by sea(LCL), by air or by courier services, any of which is optional.



How much will the shipping charges be?

It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.





Hot Tags: 24 core figure 8 fiber cable, China 24 core figure 8 fiber cable manufacturers, suppliers, factory, Aerial Fibre Optic Cable, Fiber Optic Overhead Cable, fig 8 self support optical fiber cable, Outdoor Aerial Fiber Optic Cable, Overhead Fiber Optic Cable, Self Supporting Fiber Optic Cable

Technical Characteristics





Fiber Count

2~24

Loose Diameters

2.3 mm

Loose Material

PBT ((Polybutylene Terephthalate))

Armor

Steel tape

Self Strength Messenger

7*1.2mm Steel wire

Nominal Outer Dimensions

7.0mm *12mm(±0.3)

Outer Jacket Material

HDPE

Tension Strength

(Long-Term /Short-Term)

1000N/3000N

Crush Resistance

(Long-Term /Short-Term)

300 N/100mm

1000N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
