Outdoor Fiber Optic Cable Single Mode

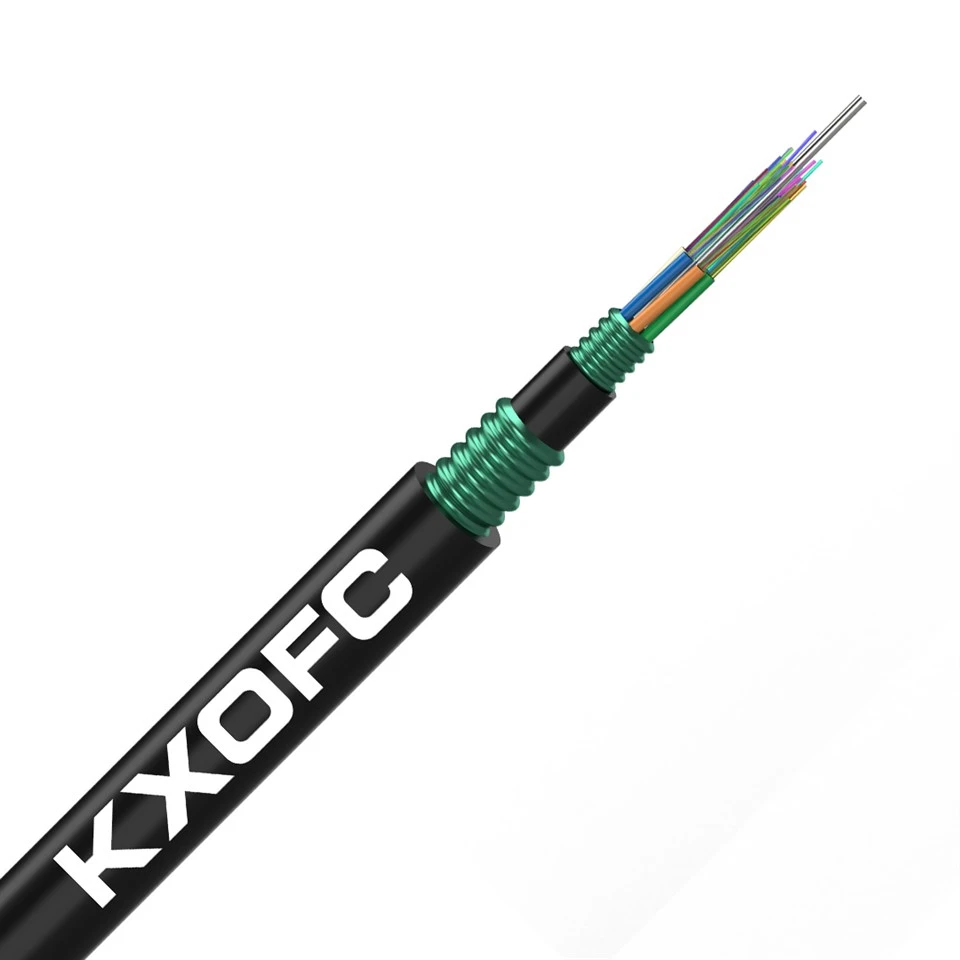

Direct burial outdoor fiber optic cable single mode double armored metal optical fiber cable GYTS53

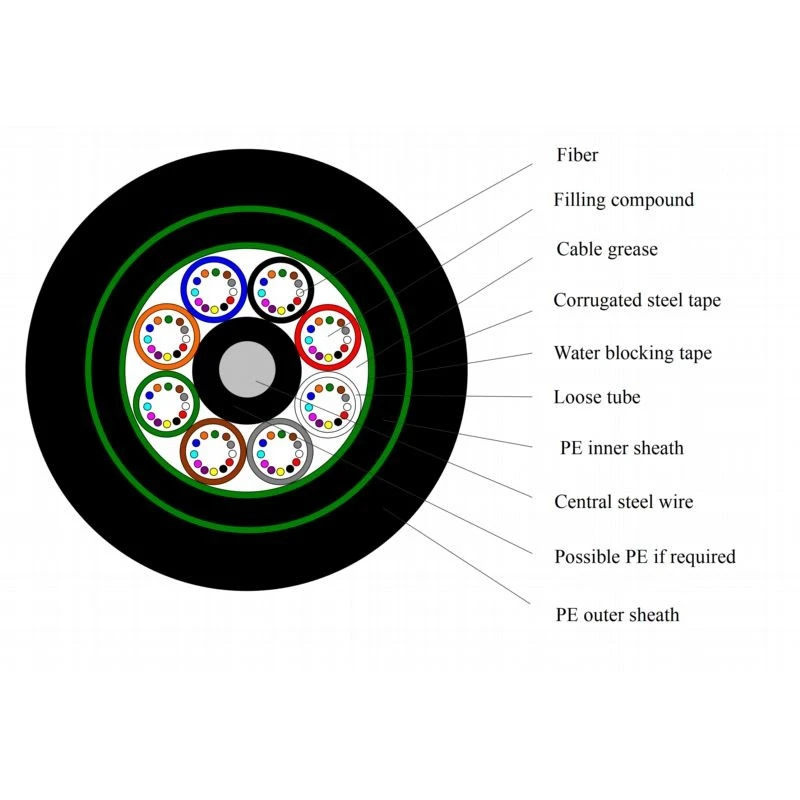

GYTS53 direct burial optical fiber cable, optical fibers are housed in loose tubes that made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a central strength member to form a cable core. The core is protected with corrugated steel tape, a layer of inner PE sheath and corrugated steel tape. Then another layer outer PE sheath is extruded.
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and have long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables till now.





Features







product-1984-1984
  • Loose tube gel-filled construction for superior fiber protection.



  • Longitudinal corrugated steel tape is laminated at both side and bonded to PE outer jacket, it ensures not only radial moisture-proof but also reinforces the crush resistance of fiber optical cable.



  • Double PE sheath, UV and waterproof design.



Characteristics of GYTS53 Optical Cable



01

Controlling the excess length of the optical fiber ensures that the optical cable has excellent tensile strength and temperature characteristics.

02

The PBT loose tube material has good hydrolytic resistance. The tube is filled with special grease to protect the optical fiber.
The cable has good compressive strength.

03

Double-layer steel bands for rodent protection.
The following measures are taken to ensure the waterproof performance of the optical cable: Fill the loose tube with special waterproof compounds; Fill the core; Apply a plastic-coated steel band moisture-proof layer.

product-1791-1737



Advantages


The controlled excess length of the optical fiber ensures good tensile strength and temperature characteristics of the optical cable;


The full-section water-blocking structure guarantees good water-blocking and moisture-proof performance;


The phosphated steel wire central reinforcing component has high modulus and corrosion resistance;


The loose jacket material itself has good hydrolysis resistance and high strength;

product-1080-1080

Custom Notebook Solutions



product-2573-1760

The pipe is filled with grease, providing critical protection for the optical fiber and ensuring the longitudinal water-blocking effect;


The loose jacket (filling rope) is wound around the central reinforcing layer SZ layer;
Good water-blocking materials prevent water from seeping longitudinally in the optical cable;


The double-sided chrome-plated plastic-coated steel strip (PSP) enhances the anti-moisture resistance of the optical cable;


The double-layer adhesive sheath further improves the optical cable's resistance to moisture, lateral pressure, and impact.









own brand





FTTH drop cable-Ink printing

Flat cable-Plasma pringting

Outdoor cable GYTC8S-Iron printing

Jumper cable- SC/UPC-SC/APC

GYTC8S 24 core -wooden drum

FTTH cable-1km drum

FTTH cable-carton packing

Patch cords-Pallet package






Pack and ship


Patch cords in Pallet delivery

FTTH cable in cartons packing

Flat cable in plywood drum package

4b86f9a7e7a1b777db558f0849be4352

eedd5e3aac661809b4fc7f60d27f57d8






Hot Tags: outdoor fiber optic cable single mode, China outdoor fiber optic cable single mode manufacturers, suppliers, factory, Direct Burial Armored Fiber Optic Cable, direct burial optical fiber cable, Direct Burial Single Mode Fiber Optic Cable, Fiber Optic Cable Buried, Fiber Optic Cable for Outdoor Use, Outdoor Fiber Optic Cable Single Mode

Technical Characteristics





Fiber Count

12~144 core

Loose Diameters

2.1mm

Loose Material

PBT

Central Strength Member

Steel wire

Armor 1

Corrugated steel tape

Inter Jacket Material

PE

Armor 2

Corrugated steel tape

Outer Jacket Material

PE

Nominal Outer Dimensions

11.0~17.0 mm (±0.3)

Tension Strength (Short-Term / Long-Term)

3000N/1000N

Crush Resistance (Short-Term / Long-Term)

3,000 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable size can be customized.
