Fiber Optic Cable for Outdoor Use

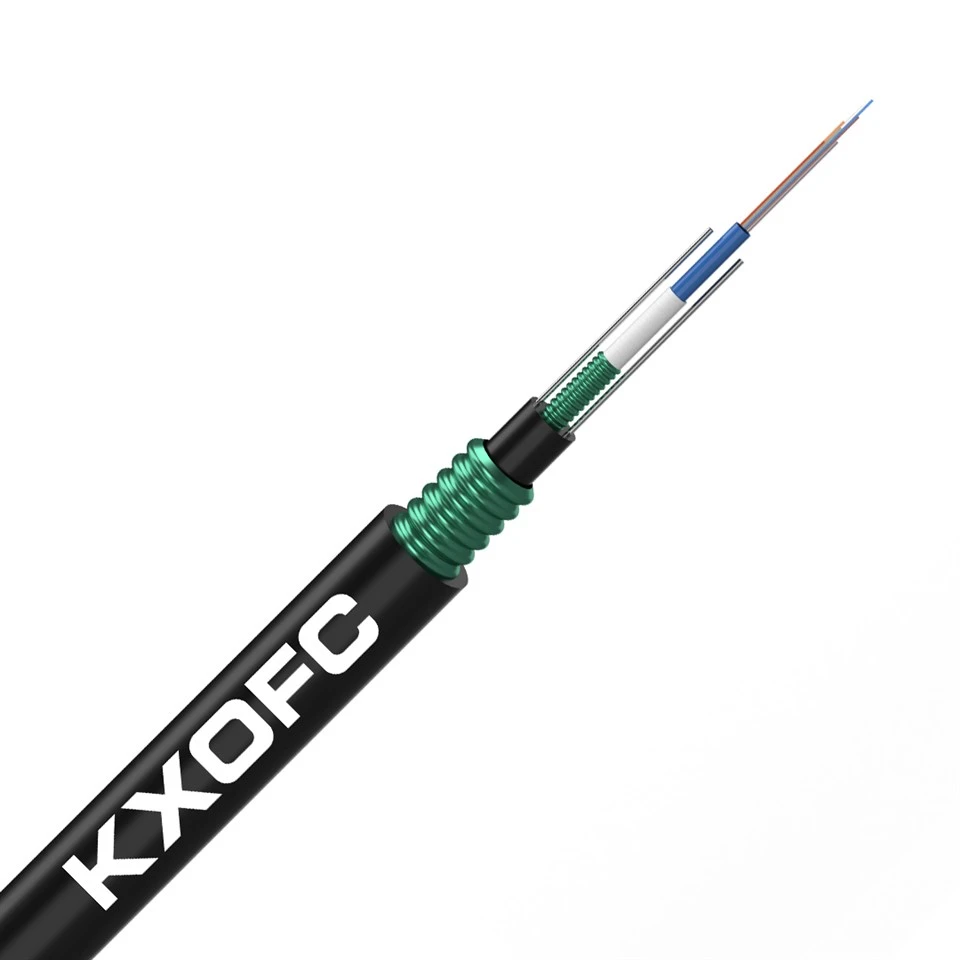

Direct burial unitube mental armored optical fiber cable GYXTW53

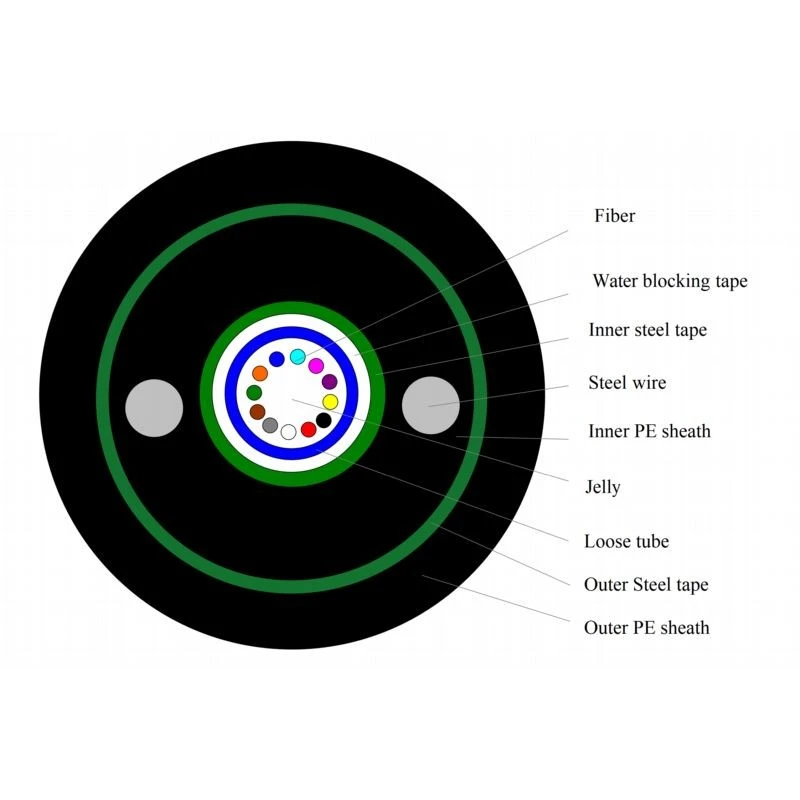

Fiber optic cable for outdoor use,GYXTW53 cable is a central loose tube fiber cable with double steel tape and double PE jacket.GYXTW53 fiber cable is a small size and light weight, which makes the cable with superior bending resistance and is convenient for installation work.
Send Inquiry

Description

Technical Parameters

our company





company
30+ years
Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.
30+ countries
In year of 2008, set up international sales department and have long-term cooperation with more than 30 countries and have 18 years` rich experience to export cables till now.











Features











product-2555-1709

  • Full section water blocking structure ensures good water and moisture resistance .



  • Loose tubes filled with special ointment for critical fiber protection



  • Two parallel round steel wires resist tension and side pressure.



  • Polyethylene sheath makes the cable have good UV resistance.



  • Double armored jacket makes cable better side pressure resistant.





Material & Production line


Our GYXTW53 cable uses ITU-T G.652D single-mode fiber as the optical core. This fiber has low attenuation, low polarization mode dispersion and a eliminated water peak, supporting wide wavelength coverage. It provides good splicing performance, mature compatibility with mainstream optical devices, and stable optical performance after being cabled. It is a cost-effective fiber option for metro, access and backbone networks.






  • Corrugated steel tape offers strong resistance to side pressure, impact and scratch.



  • It provides reliable anti-rodent and moisture barrier performance for underground deployment.



  • Good flexibility allows cable bending without steel tape cracking.



  • Firm adhesion with PE sheath keeps stable cable structure for long service life.




  • Galvanized steel wires provide high tensile resistance to protect fibers from stretching during installation.



  • Stable mechanical performance supports long-distance cable pulling.



  • Good corrosion resistance suits outdoor and underground working conditions.



  • Cooperate with steel tape armor to enhance the overall mechanical reliability of GYXTW53.
.jpg





  • Automated integrated process for loose tube cabling, steel tape armoring and PE sheath extrusion.



  • Precise control of fiber excess length and tension to ensure stable cable performance.



  • Full-process online inspection to detect abnormalities and control product quality.



  • Flexible for various fiber counts of GYXTW53, supporting customized orders.





  • Continuous full-length scanning of the cable outer sheath by knife-edge visual inspection system.



  • Detects micro surface defects including scratches, bubbles and indentations invisible to naked eyes.



  • Real-time alert and marking for rapid removal of faulty segments.



  • Guarantees sheath integrity and prevents water penetration and mechanical failure risks.



  • Enhances the long-term stability of GYXTW53 for direct-burial and duct installation.
.JPG





product-1729-972
  • Fumigated solid wood reels meet international phytosanitary standards for export.



  • High structural strength resists impact, compression and deformation in transit.



  • Stable flanges keep the cable neatly coiled and prevent cable loosening.



  • Reusable design, convenient for transport, storage and on-site unwinding.



  • Ideal packaging solution for GYXTW53 export orders and long-haul logistics.









own brand





FTTH drop cable-Ink printing

Flat cable-Plasma pringting

Outdoor cable GYTC8S-Iron printing

Jumper cable- SC/UPC-SC/APC

GYTC8S 24 core -wooden drum

FTTH cable-1km drum

FTTH cable-carton packing

Patch cords-Pallet package






Pack and ship


Patch cords in Pallet delivery

FTTH cable in cartons packing

Flat cable in plywood drum package

4b86f9a7e7a1b777db558f0849be4352

eedd5e3aac661809b4fc7f60d27f57d8





Hot Tags: fiber optic cable for outdoor use, China fiber optic cable for outdoor use manufacturers, suppliers, factory, Direct Burial Armored Fiber Optic Cable, direct burial optical fiber cable, Direct Burial Single Mode Fiber Optic Cable, Fiber Optic Cable Buried, Fiber Optic Cable for Outdoor Use, Outdoor Fiber Optic Cable Single Mode

Technical Characteristics









Fiber Count

1~24

Loose Diameters

2.1 mm

Loose Material

PBT (Poly Butylene Terephthalate)

Strength Member Material

Steel wire

Strength Member size

2x1.0mm steel wire

Armor

Corrugated steel wire

Inner Jacket Material

PE

Outer Jacket Material

Steel tape armored + PE

Nominal Outer Dimensions

10.0mm (±0.3)

Tension Strength (Short-Term / Long-Term)

3000N/1000N

Crush Resistance (Short-Term / Long-Term)

3,000 N/100mm

1000 N/100mm

Minimum Bend Radius (Static / Dynamic)

10 x OD / 20 x OD



*All above the cable components size can be customized.
