Kabel Fo Duct

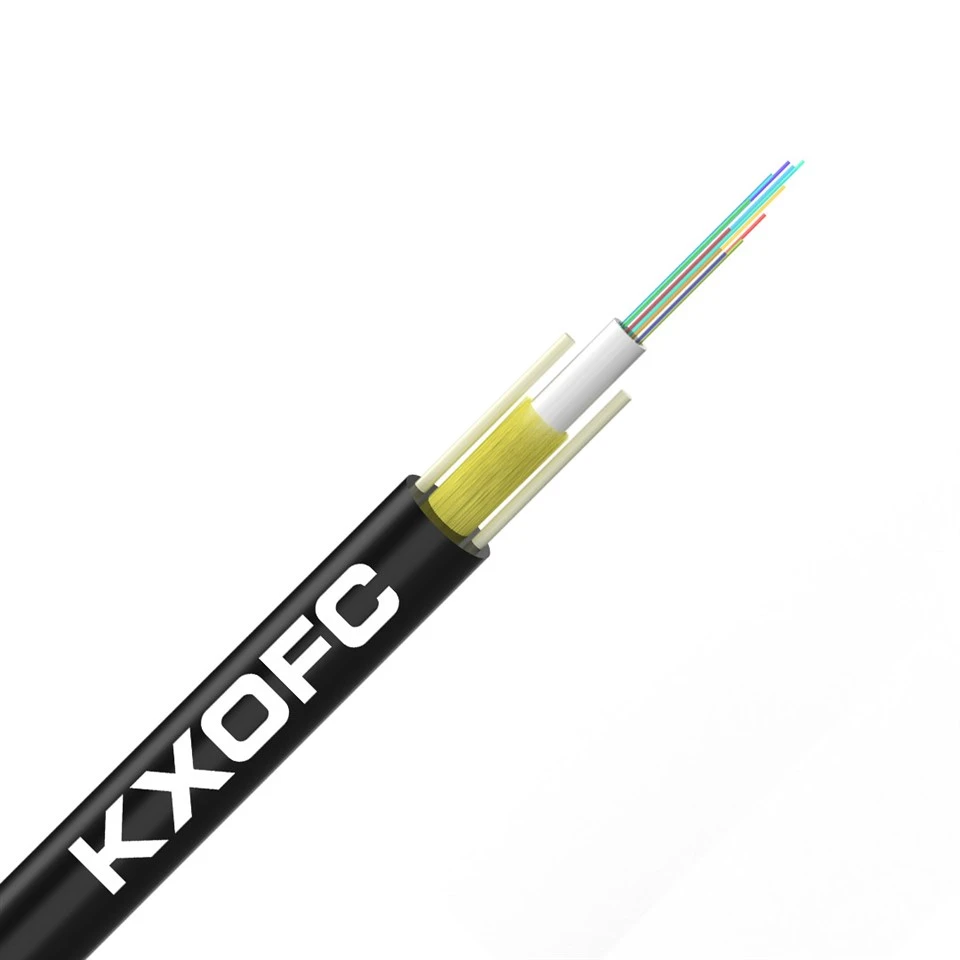

Uni-tube non metal optical kable fo duct GYFXY with yarn
GYFXY with yarn kabel fo duct, optical fibers are housed in a loose tube that is made of high-modulus plastic with filling compound. Uni-tube non metal optical fiber cable with yarn,the tube is armored with a layer of polyester yarn or aramid yarn and two FRP are placed outside the tube in parallel, then a PE sheath is extruded.

Send Inquiry

Description

Technical Parameters

our company

30+ years

Our factory was found in 1992, first start with coaxial cable which was one of the biggest manufacturers in lin'an city.In year of 2001 started focusing on the production of optical cables.

30+ countries

In year of 2008, set up international sales department and sale optical fiber cable to more than 30 countries and have 18 years` rich experience to export cables .

Features

PBT has good hydrolysis resistance and high strength.
Two parallel FRP and yarns ensure the tensile strength of the cable.
PE sheath has excellent anti-UV .
Small diameter, light weight, easy to lay.
Excellent mechanical properties and temperature characteristics.

*All above the cable size can be customized.

Environmental Characteristics

• Transport/storage temperature: -40℃ to +60℃

Delivery Length

• Standard reel length: 2km/drum or 3km/drum; other lengths are also available.

Our services

1. 24-hour one-on-one online service to ensure efficient support.

2. Thoughtful customer reception from hotel reservation to factory visit.

3. Extremely cautious throughout the process from order confirmation to product shipment.

own brand

FTTH drop cable-Ink printing

Flat cable-Plasma pringting

Outdoor cable GYTC8S-Iron printing

Jumper cable- SC/UPC-SC/APC

GYTC8S 24 core -wooden drum

FTTH cable-1km drum

FTTH cable-carton packing

Patch cords-Pallet package

Pack and ship

Patch cords in Pallet delivery

FTTH cable in cartons packing

Flat cable in plywood drum package

Composite drum full loaded into contianer

Solid wooden drum loading photo

Tips

What Are the Applications of Optical Fibers?

Optical fibers are widely applied in communication, industry, medical treatment, sensing and many other fields,

Main in Telecommunications & Network Transmission as detailed below:

1.Long-distance backbone communication: Intercity, cross-provincial and undersea submarine optical cables connecting countries and continents for high-speed voice, video and data transmission.

2.Metropolitan area networks (MAN) and FTTH (Fiber to the Home): Home broadband, campus networks, enterprise LANs replacing traditional copper cables to deliver gigabit and 10-gigabit internet.

3.Mobile communication base stations: Optical cables connect 5G/4G base stations to core equipment to support massive data throughput.

4.Broadcast & television: Transmitting high-definition live TV signals, cable TV signals and live streaming signals.

Hot Tags: kabel fo duct, China kabel fo duct manufacturers, suppliers, factory

Technical Characteristics

Fiber Count	2~24
Loose Diameters	2.0~2.5mm
Loose Material	PBT (Polybutylene Terephthalate)
Dielectric Strength Member Material	FRP & Yarn
Dielectric Strength Member size	1.0mm (FRP)
Outer Jacket Material	PE
Nominal Outer Dimensions	6.0~8.0 mm (±0.3)
Tension Strength (Long-Term /Short-Term)	600N /1000N /600N
Crush Resistance (Long-Term /Short-Term)	300 N/100mm 1000 N/100mm
Minimum Bend Radius (Static / Dynamic)	10 x OD / 20 x OD
